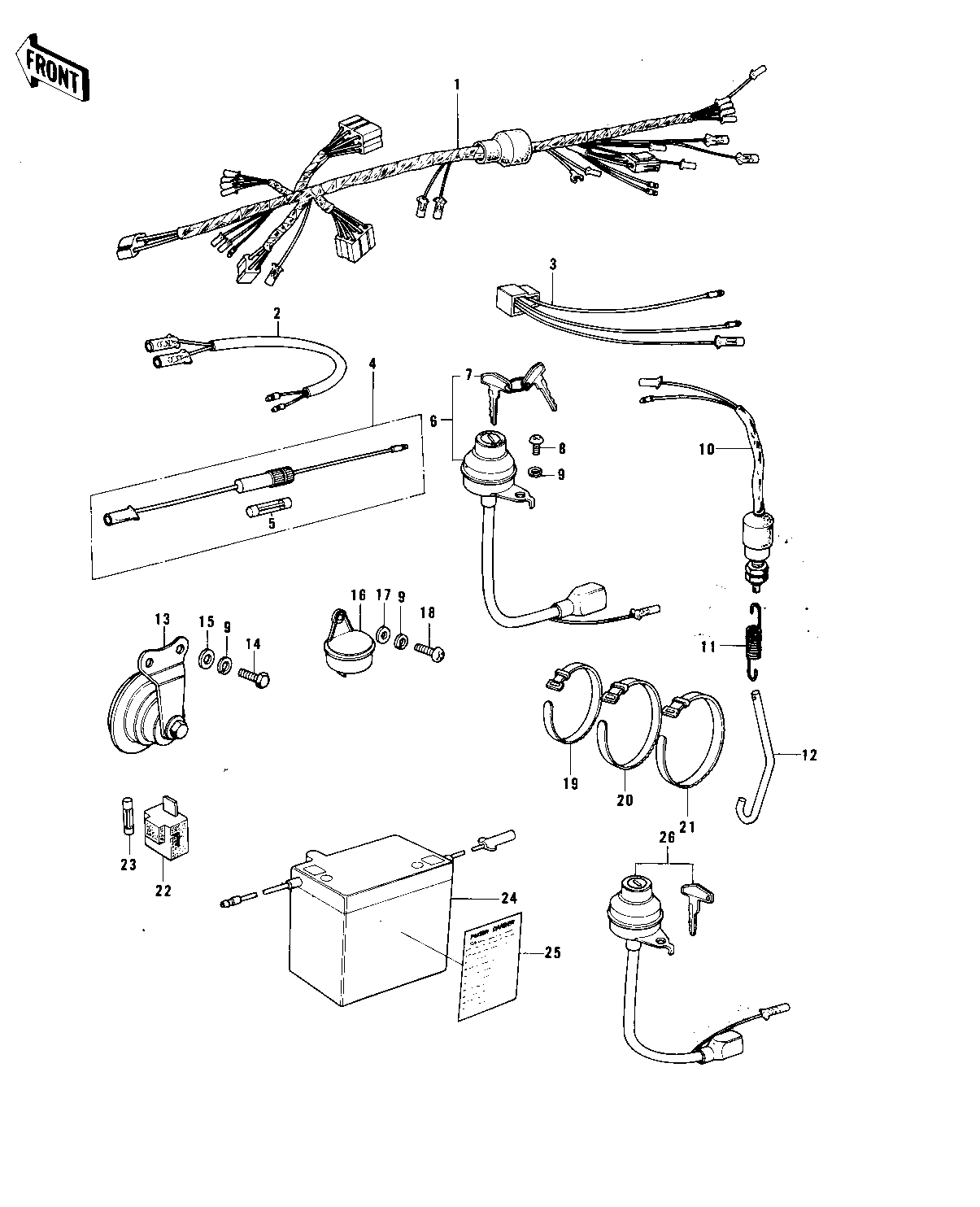

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS,MAIN 1 26001-133 1
WIRING HARNESS-REAR 2 26002-030 1
WIRE, RECTIFIER LEAD 3 26011-072 1
FUSE ASSY 4 26004-025 1
FUSE 15A 5 26006-007 1
SWITCH,IGNITION 6 27005-084 1
KEY SET NO.321 7 27008-034-21 1
KEY SET NO.143 7 27008-034-43 1
SCREW PAN HEAD 6X12 8 220B0612 1
WASHER SPRING 6MM 9 461F0600 4
SWITCH-BRAKE LAMP 10 27010-015 1
SPRING BRAKE LAMP SW 11 27011-006 1
SPRING BRAKE LAMP SW 12 27012-005 1
HORN 13 27003-072 1
BOLT-UPSET,6X12 14 112G0612 2
WASHER PLAIN 6MM 15 411B0600 2
RELAY-TURN SIGNAL 16 27002-015 1
WASHER 6.5X20X1.6T 17 92022-125 1
SCREW PAN HEAD 6X16 18 220B0616 1
BAND,SHORT 19 92072-030 5 L=123M/M
BAND,LONG 20 92072-032 3 L=218M/M
BAND,WIRING HARNESS 21 92072-056 1 L=186M/M
HOLDER-SPARE FUSE 22 26016-004 1
FUSE 15A 23 26006-007 2
YUA BAT 6N4-2A-5 24 K26012-020 1
YUA BAT 6N4-2A-5 24 K26012-020 1 KH100-B8
LABEL-WARNING,BATTERY 25 56040-1036 1
SWITCH ASSY,IGNITION 26 27005-085 1 USE FOR CANADIAN MKT
KEY,BLANK 27 27008-1016 1
KEY,BLANK 27 27008-1017 1
KEY,BLANK 27 27008-1018 1
KEY,BLANK 27 27008-1019 1
