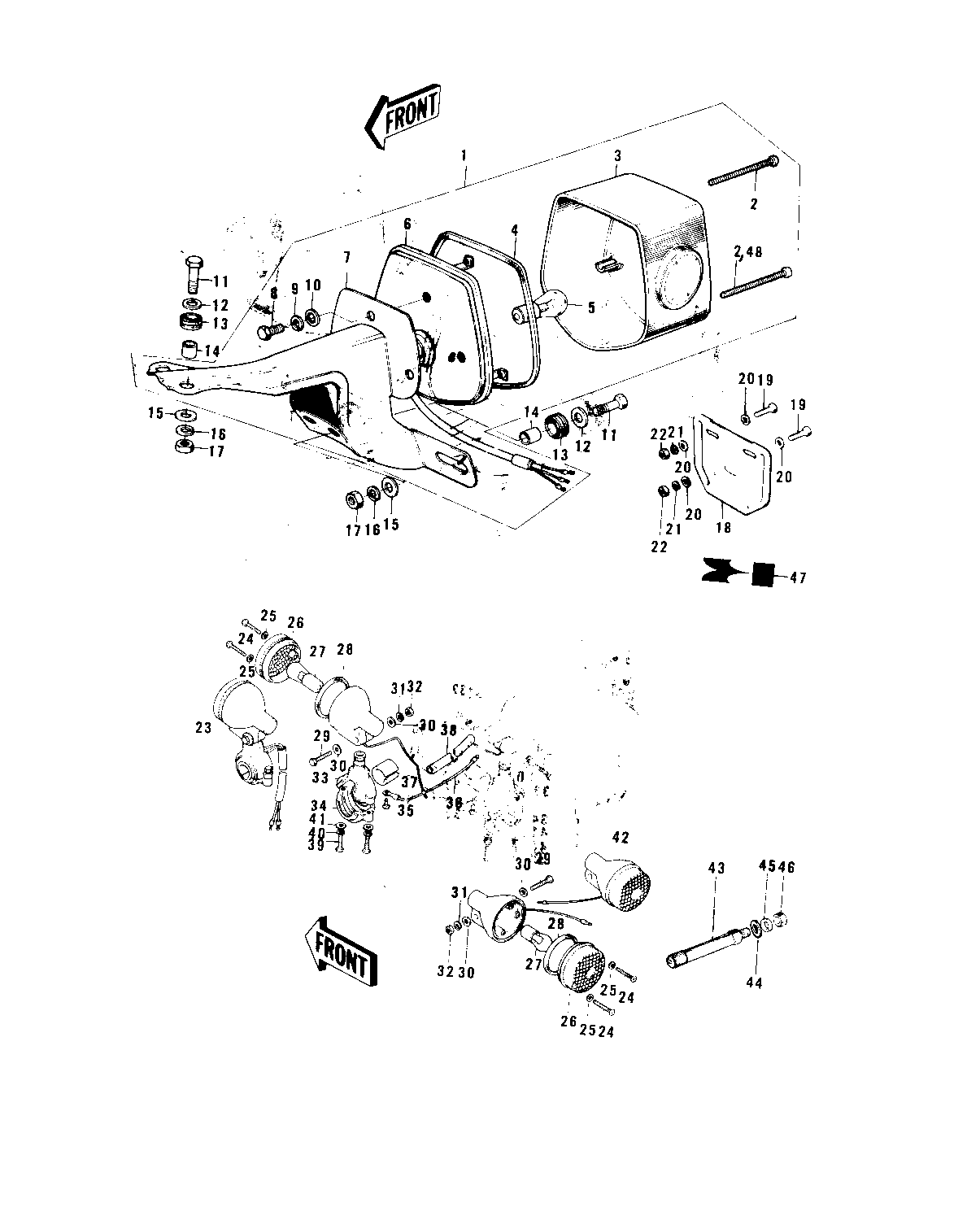

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASSY,TAIL,BLACK 1 23024-049-10 1 BLACK
SCREW 2 220R0455 3 (1 REQ KH100-B8)
LENS,TAIL LAMP 3 23026-028 1
GASKET,TAIL LAMP LENS 4 23028-019 1
BULB,60-32/3CP 5 92069-074 1
BODY COMP TAIL LAMP 6 23027-1018 1
BKT,LICENSE PLT,BLAC 7 23036-030-10 1 BLACK
BOLT-UPSET 6X14 8 112B0614 3
BOLT-UPSET 6X14 8 112B0614 AL
WASHER SPRING 6MM 9 461F0600 3
WASHER PLAIN 6MM 10 411B0600 3 (N/R KH100-B8)
BOLT 6X22 11 112B0622 4
BOLT 6X22 11 112B0622 AL
WASHER 6.5X20X1.6T 12 92022-125 4
DAMPER RUBBER 13 92075-076 4
COLLAR,6.8X10X8.5 14 92027-129 4
WASHER PLAIN 6MM 15 411B0600 4
WASHER SPRING 6MM 16 461F0600 4
NUT 6MM 17 311B0600 4
BRACKET,LICENSE PLATE 18 11034-1117 1
BOLT-UPSET,6X20 19 112G0620 2
BOLT-UPSET,6X20 19 112G0620 2
WASHER PLAIN 6MM 20 411B0600 4
WASHER SPRING 6MM 21 461F0600 2
NUT 6MM 22 311B0600 2
LAMP ASY-FR TURN SIG 23 23037-005 2
SCREW-PAN HEAD,4X20 24 220E0420A 8
WASHER-PLAIN,4MM 25 23058-002 8
LENS,TURN SIGNAL LAMP 26 23048-1001 4
BULB,6V 21CP 27 92069-056 4
GASKET-SIG LAMP LENS 28 23050-003 4
BOLT-UPSET 29 112G0630 4
WASHER-PLAIN,6MM 30 411D0600 8
WASHER SPRING 6MM 31 461F0600 4
NUT 6MM 32 311B0600 4
BRACKET,FRNT TURN SIG 33 23051-1004 2
BRACKET,SIGNAL LAMP 34 23051-1013 2
SCREW PAN HEAD 3X5 35 220B0305A 2
WIRE-TURN SIGNAL LEAD 36 26011-061 2
DAMPER RUBBER 37 23066-003 2
COVER-WIRING HARNESS 38 26009-004 2
BOLT 39 110N0516 4
WASHER SPRING 5MM 40 461F0500 4
WASHER-PLAIN,5MM 41 410D0500 4
LAMP ASSY,TURN SIGNAL 42 23040-038 2
BRACKET,TURN SIGNAL 43 23051-047 2
WASHER PLAIN 12MM 44 411B1200 2
WASHER SPRING 12MM 45 461F1200 2
NUT,12MM 46 311B1200 2
EMBLEM,LICNSE PLT BKT 47 56018-176 1
SCREW PAN HEAD 4X50 48 220E0450 2 KH100-B8
