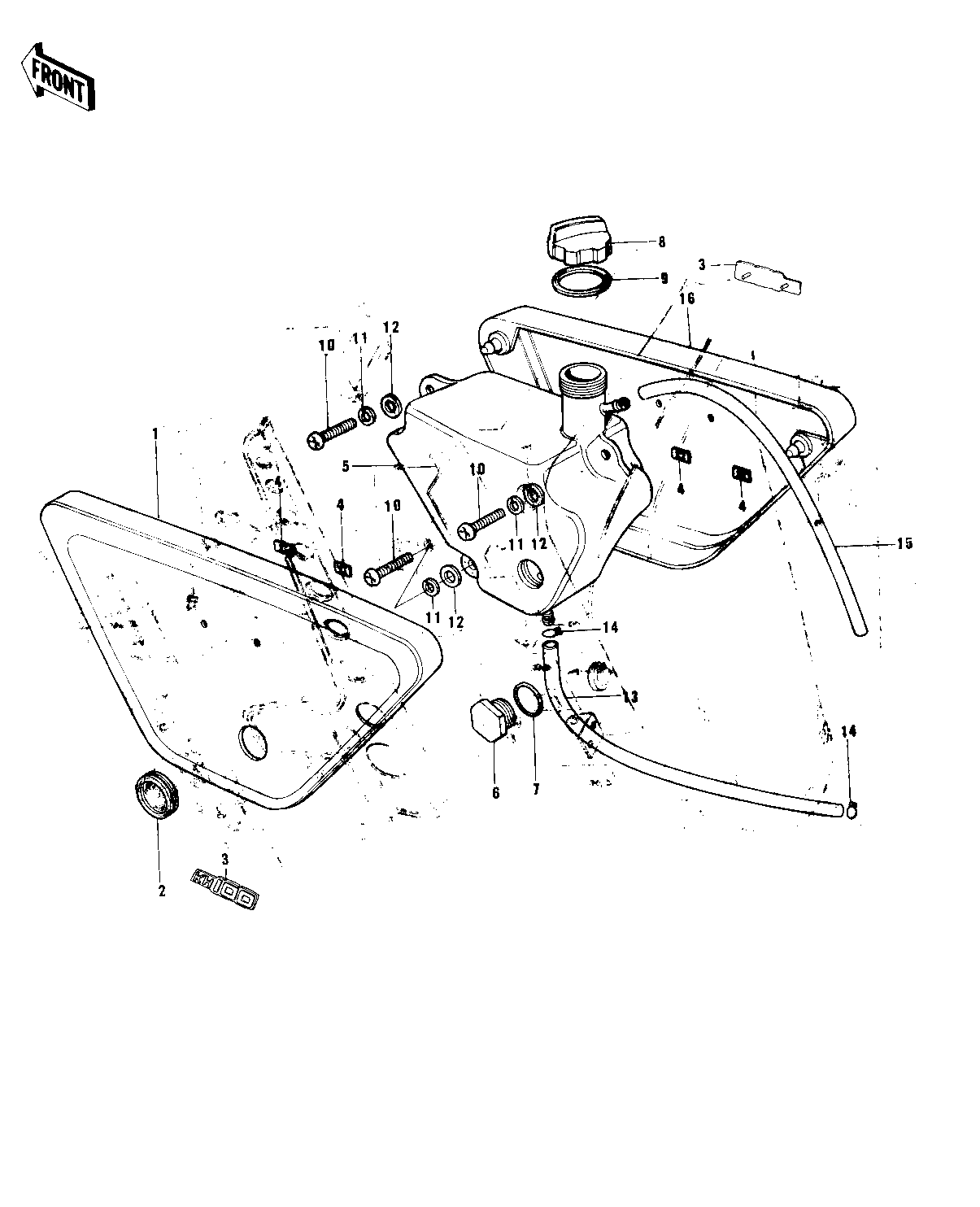

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,L.H SIDE,C.R.BL 1 36001-045-3S 1
COVER,L.H SIDE,T.GREN 1 36001-045-4V 1 KH100-B8
GROMMET-R.H SIDE COV 2 92071-065 1
EMBLEM,SIDE COVER 3 56018-210 2 KH100-B8
NUT,LOCK,3MM 4 92018-005 4
TANK,OIL 5 52001-042 1
GUAGE-OIL LEVEL 6 52015-002 1
"O" RING,20MM 7 92055-051 1
CAP-OIL TANK 8 52003-019 1
GASKET-OIL TANK CAP 9 92065-085 1
SCREW PAN HEAD 6X18 10 220B0618 3
WASHER SPRING 6MM 11 461F0600 3
WASHER PLAIN 6MM 12 410B0600 3
WASHER 6.5X20X1.6T 12 92022-125 3 KH100-B8
PIPE-OIL 13 92059-072 1
CLAMP FUEL PIPE 14 92037-010 2
TUBE-PVC,5X1000 15 700Q051000 1
COVER,RH SIDE,C.R.BLU 16 36007-038-3S 1
COVER,RH SIDE,T.GREEN 16 36007-038-4V 1 KH100-B8
