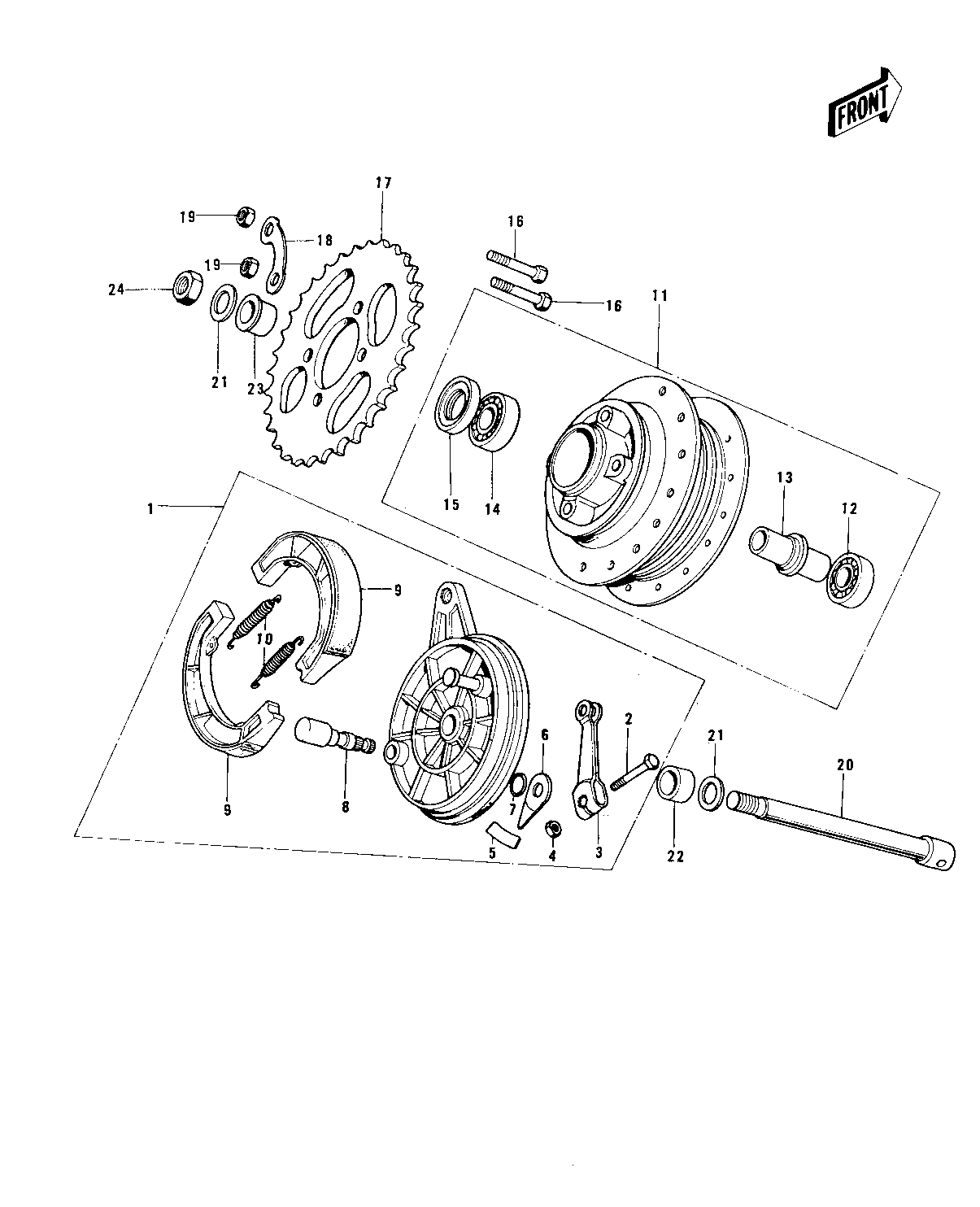

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PANEL-ASY,RR BRK,BUFF 1 42006-067-80 1
BOLT-UPSET 2 112G0630 1
BOLT-UPSET 2 112G0630 AL
LEVER,FRONT BRAKE CAM 3 41053-002 1
NUT,6MM 4 41072-007 1
LABEL,FR BRK SHOE 5 41084-002 1
INDICATOR,BKSHOE 6 41085-003 1
"0" RING,11MM 7 92055-004 1
CAM SHAFT,FRONT BRAKE 8 41050-012 1
SHOE-BRAKE 9 41048-1085 2
SPRING,BRAKE SHOE 10 92081-1766 2
DRUM ASSY REAR BRAKE 11 42005-006 1
BEARING BALL #6301Z 12 601B6301Z 1
SPACER RR HUB BEARING 13 42010-003 1
BEARING BALL #6301 14 601B6301 1
OIL SEAL RR BRK DRUM 15 92052-001 1
BOLT REAR SPROCKET 16 92001-021 4
REAR SPROCKET 37T 17 42041-020 1 STD
REAR SPROCKET 42T 17 42041-051 (1 OPTION
WASHER RR SPRCKT LOCK 18 92088-003 2
NUT,8MM 19 311B0800 4
AXLE,12X206 20 41068-1091 1
WASHER PLAIN 12MM 21 411B1200 2
COLLAR REAR HUB R.H 22 42032-006 1
COLLAR REAR HUB L.H 23 42032-005 1
NUT-HEX-FINE 24 314B1200 1
