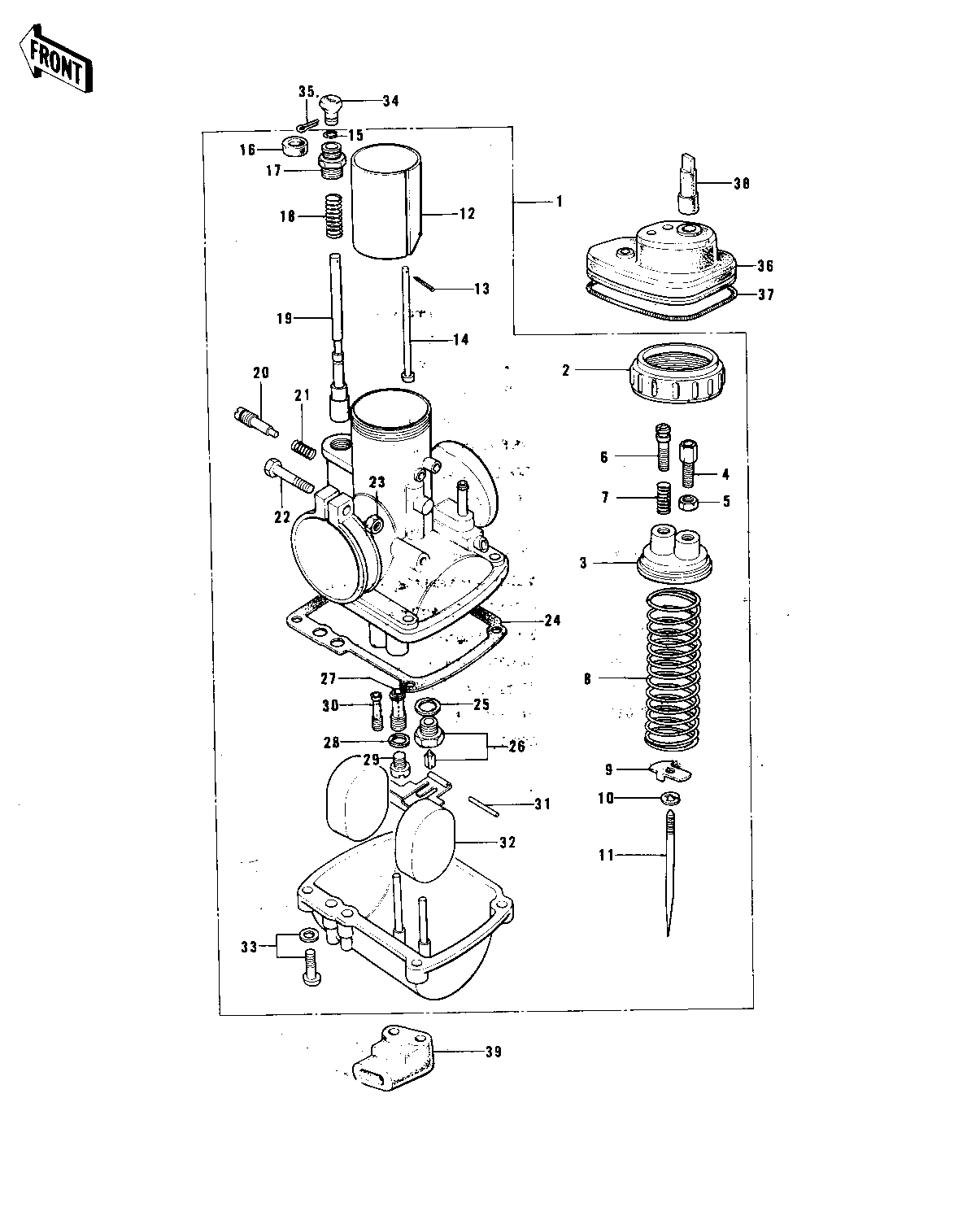

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY, 1 16001-230 1
CAP MIXING CHAMBER 2 16004-010 1
TOP MIXING CHAMBER 3 16005-005 1
CABLE ADJUSTER 4 16002-002 1
ADJUSTER,CABLE 4 16002-017 1 KH100-B8
NUT CABLE ADJUST LOCK 5 16003-004 1
SCREW,THROTTLE STOP 6 16021-002 1
SPRING THR STOP SCREW 7 16022-005 1
SPRING THROTTLE VALVE 8 16006-013 1
SPRING SEAT,THRTL TL 9 16007-020 1
CIRCLIP 10 16008-010 1
JET NEEDLE 4EJ7 11 16009-059 1
VALVE, THROTTLE CA, 2.0 12 16025-057 1
PIN COTTER 1.2X10 13 550D1210 1
ROD,THROTTLE VLV STP 14 16024-012 1
CIRCLIP 15 92037-1077 1
CAP,STARTER PLUNGER 16 16036-012 1
CAP,STARTER PLUNGER 17 16012-021 1
SPRING,STARTER PLUNGR 18 16013-010 1
PLUNGER,STARTER 19 16016-012 1
SCREW PILOT AIR ADJST 20 16014-002 1
SPRING-THR STOP SCREW 21 16022-007 1
SCREW CLAMP 22 16010-004 1
NUT 6MM 23 311B0600 1
NUT 6MM 23 311B0600 1 KH100-B8
GASKET,FLOAT CHAMBER 24 16019-021 1
WASHER VALVE SEAT 25 16029-002 1
FLOAT VALVE ASSY 26 16030-001 1
FLOAT VALVE ASSY 26 16030-009 1 KH100-B8
NEEDLE JET 0-2 27 16017-068 1
WASHER MAIN JET 28 16034-001 1
MAIN JET,#77.5R 29 92063-1032 1 STD
PILOT JET #17.5 ISO 30 92064-020 1
FLOAT PIN 31 16032-003 1
FLOAT 32 16031-015 1
SCREW-FLOAT CHAMBER 33 16033-012 4
KNOB,CARBURETOR 34 92077-022 1
PIN COTTER 1.6X15 35 550D1615 1
CAP,CARBURETOR 36 14038-035 1
SPRING COIL 37 92081-047 1
PLUG,CARBURETOR CAP 38 16147-001 1
GROMMET,OVER FLOW 39 16136-007 1
