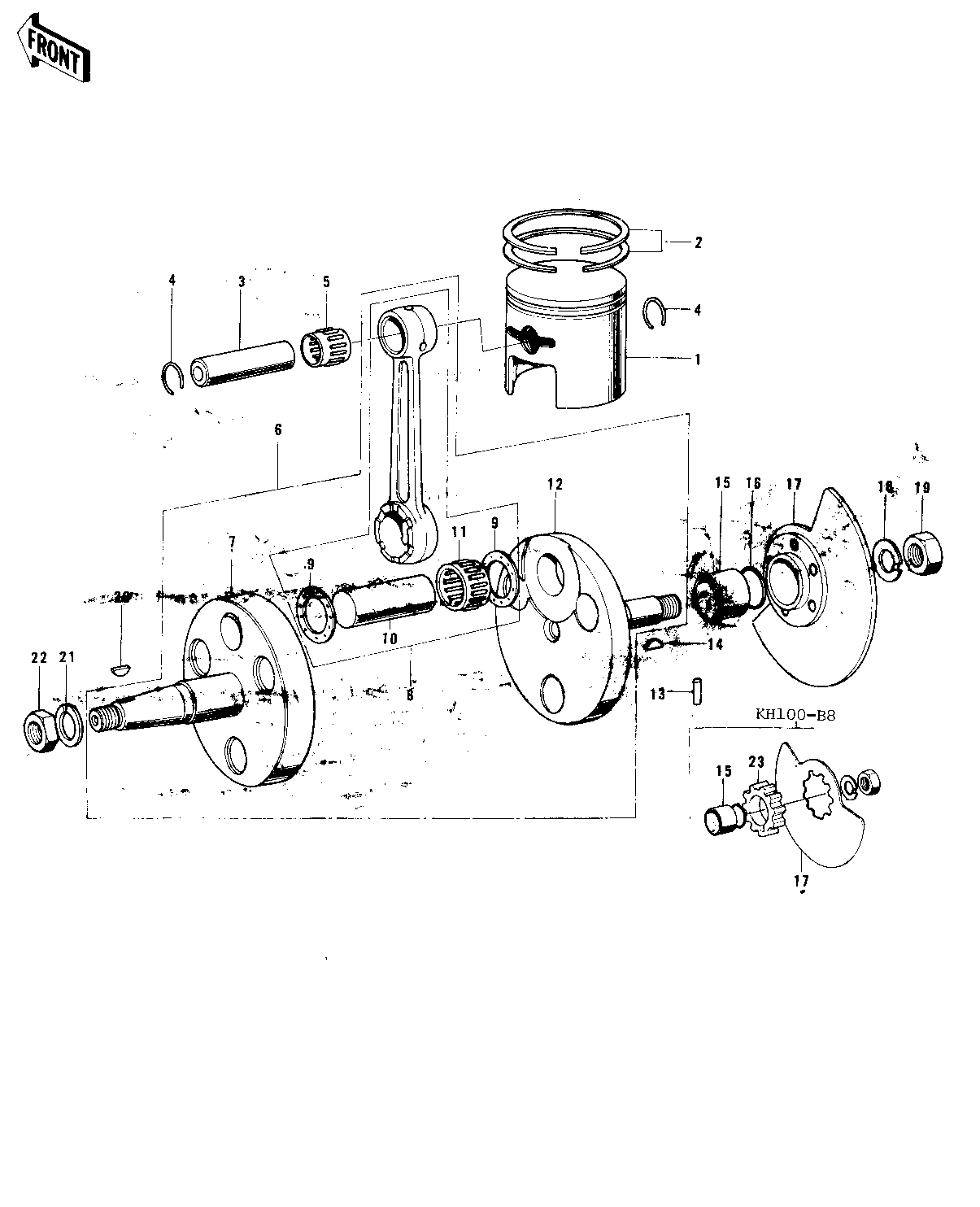

1976 KH100-B7 - CRANKSHAFT/PISTON/ROTARY VALVE

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON,STD 1 13001-057 1
PISTON.0.020 O.S 1 13029-059 (1
PISTON,0.040 O-S 1 13027-057 (1
RING SET,STD 2 13008-043 1
RING NET,0.020 O.S 2 13025-047 (1
RING NET,0.040 O.S 2 13024-050 (1
PIN-PISTON 3 13002-003 1
CIRCLIP PISTON PIN 4 92036-003 2
BEARING,SMALL END 5 13033-030 1 KTV141817
CRANK&CONROD ASSY 6 13036-043 1
CRANK&CONROD ASSY 6 13036-043 1 KH100-B8
CRANKSHAFT,L.H 7 13037-053 1
CRANKSHAFT,LH 7 13037-1136 1 KH100-B8
CONNECTING ROD SET 8 13044-5015 1
WASHER-SIDE 9 92025-047 2
CRANK PIN 10 13035-025 1
BEARING,BIG END 11 13034-034 1 KT192612
CRANK SHAFT,R.H 12 13038-049 1
CRANKSHAFT,RH 12 13037-1135 1 KH100-B8
PIN DOWEL 4X10 13 610A0410 1
WOODRUFF KEY PRY PINI 14 92038-003 1
COLLAR CRANKSHAFT 15 92027-022 1
COLLAR,CRANKSHAFT 15 92027-285 1 KH100-B8
"0" RING,16MM 16 670B2016 1
VALVE ROTARY DISC 17 12001-004 1
VALVE,ROTARY DISC 17 12002-030 1 KH100-B8
WASHER LOCK 12MM 18 92024-003 1
NUT 12MM 19 92015-006 1
WOODRUFF KEY 20 510A3200 1
WASHER SPRING 10MM 21 461F1000 1
NUT,10MM 22 314B1000 1
COLLAR,ROTARY VALVE 23 92027-1245 1 KH100-B8
