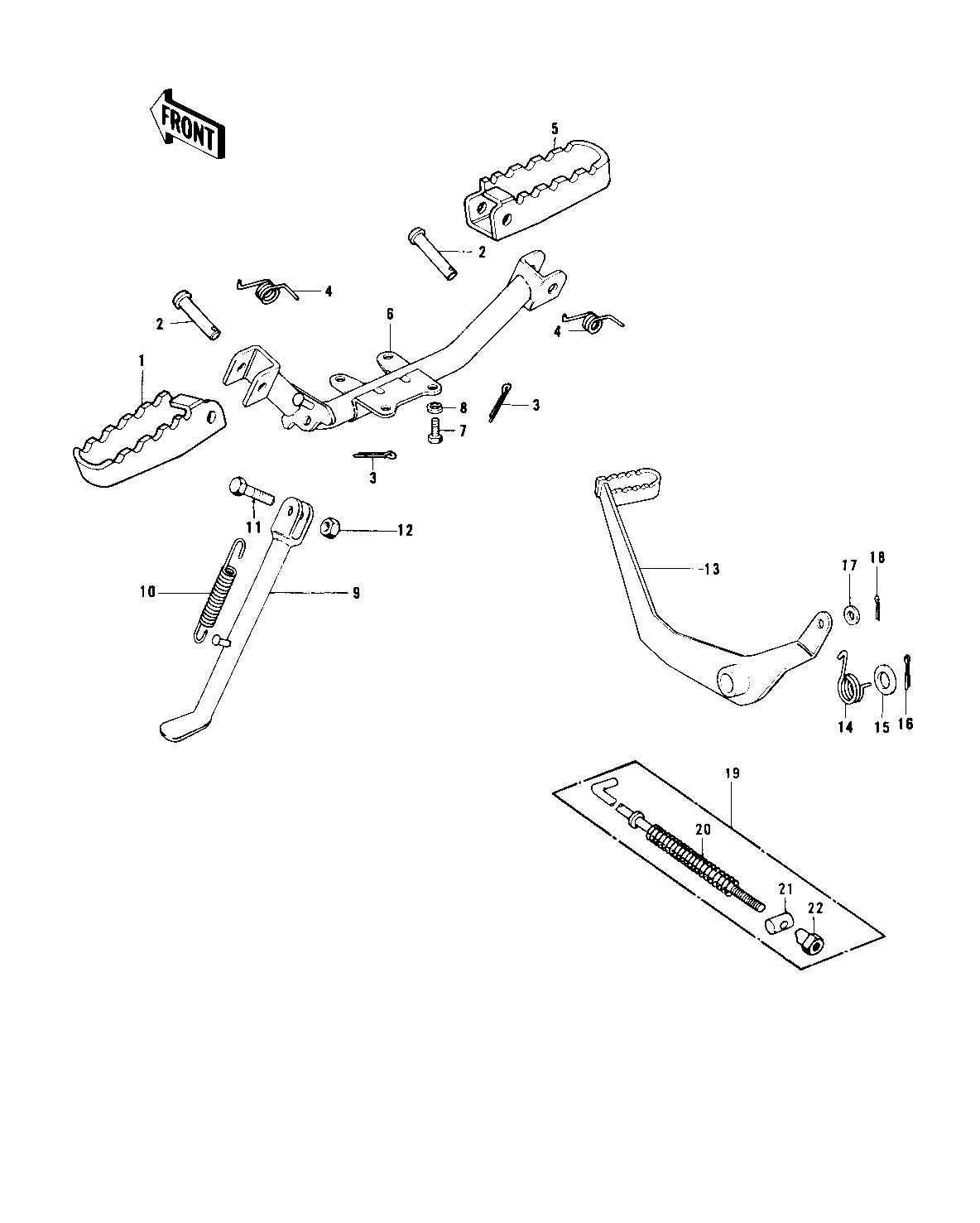

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BAR,L.H FOOTREST 1 34028-024 1
PIN-FOOTREST BAR FIT 2 92043-080 2
PIN COTTER 2.5X16 3 550D2516 2
SPRING,FOOTRESTBAR 4 92083-027 2
BAR,R.H FOOTREST 5 34028-023 1
BAR,FOOTREST 6 34002-047 1
BOLT-SMALL-UPSET,8X18 7 115G0818 4
WASHER SPRING 6MM 8 461F0600 4
STAND-SIDE 9 34024-1013 1 KD100-M1/M2
STAND-SIDE 9 34024-1013 1 KD100-M3/M4
BOLT,HEX HEAD,10X25 11 113G1025 1 KD100-M1/M2
BOLT,10X28 11 113G1028 1 KD100-M3/M4
NUT,10MM 12 314B1000 1
PEDAL,BRAKE 13 43001-062 1
SPRING-BRAKE PEDAL 14 43005-020 1
WASHER BRAKE PEDAL 15 92022-085 1
UNAVAILABLE IN PRICE BOOK 16 530D3030 1
WASHER PLAIN 6MM 17 410B0600 1
PIN COTTER 2.0X15 18 550D2015 1
ROD ASSY,REAR BRAKE 19 43010-5004 1
SPRING,BRAKE ROD 20 43012-001 1
PIN BRAKE 21 92043-039 1
NUT-BRAKE ROD ADJUST 22 92015-042 1
