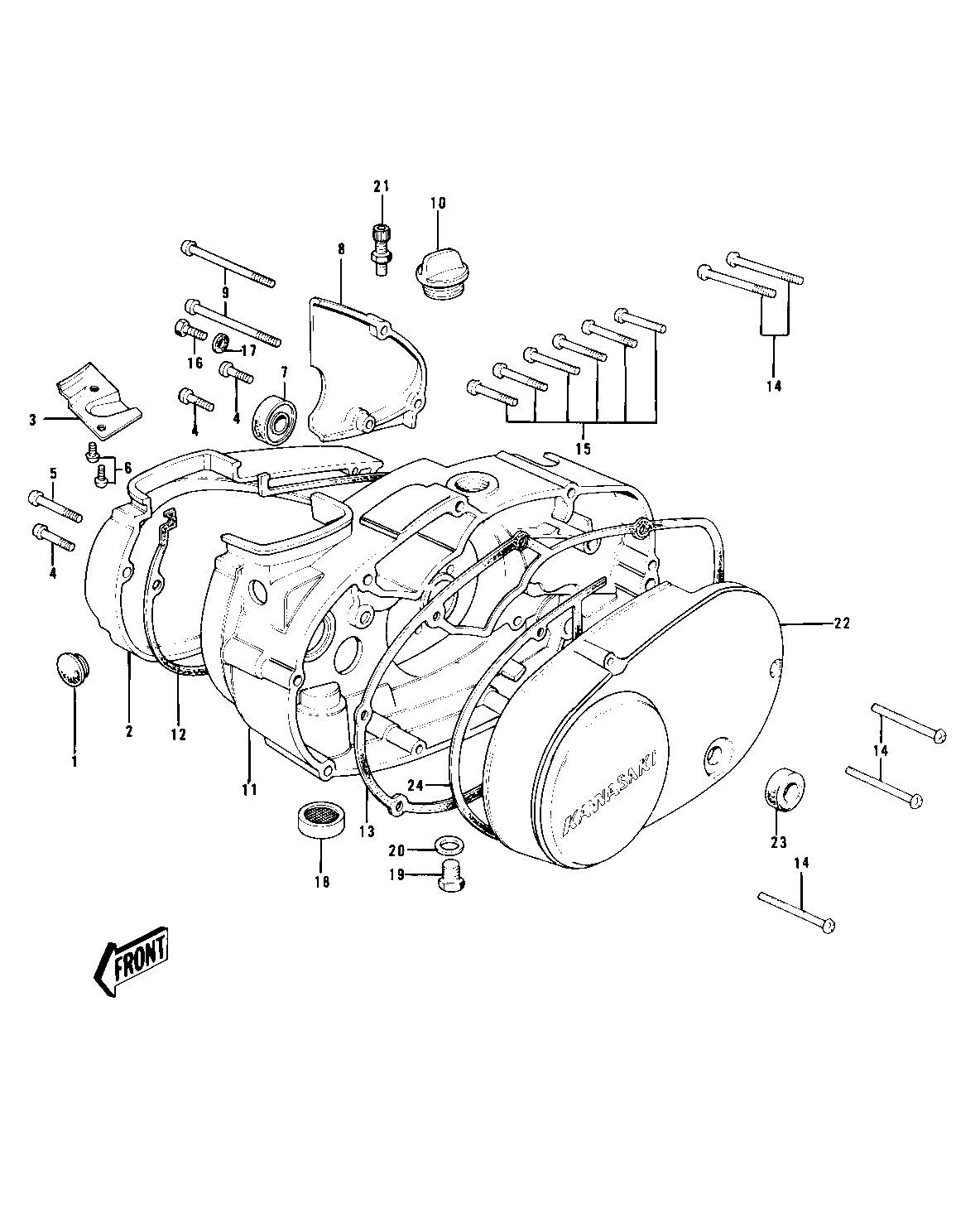

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP CARB MOUNT HOLE | 1 | 14039-001 | 1 | ||
| COVER,CARB BARREL | 2 | 14030-1005 | 1 | KD100-M1/M2 | |
| COVER,CARB BARREL | 2 | 14030-1005 | 1 | KD100-M3/M4 | |
| COVER,CLUTCH CABLE | 3 | 14025-1137 | 1 | ||
| SCREW PAN HEAD 6X20 | 4 | 220B0620 | 3 | ||
| SCREW PAN HEAD 6X35 | 5 | 220B0635 | 1 | ||
| SCREW PAN HEAD 6X12 | 6 | 220B0612 | 2 | ||
| OIL SEAL TB14257 | 7 | 653B142507 | 1 | ||
| COVER,OIL PUMP,BUFF | 8 | 14030-050-80 | 1 | ||
| SCREW PAN HEAD 6X75 | 9 | 220B0675 | 2 | ||
| FILLER,OIL | 10 | 16115-018 | 1 | ||
| COVER,R.H,ENG,BARREL | 11 | 14032-1017 | 1 | ||
| GASKET,CARBURETOR COV | 12 | 11060-1201 | 1 | ||
| GASKET,CLUTCH COVER | 13 | 11060-1198 | 1 | ||
| SCREW PAN HEAD 6X45 | 14 | 220B0645 | 5 | ||
| SCREW PAN HEAD 6X30 | 15 | 220B0630 | 6 | ||
| BOLT,HEX HEAD,6X14 | 16 | 92001-121 | 1 | ||
| WASHER OIL PUMP BANJO | 17 | 92022-077 | 1 | ||
| DRAIN,FUEL | 18 | 16116-006 | 1 | ||
| PLUG OIL DRAIN | 19 | 92067-001 | 1 | ||
| GASKET CHECK VALVE | 20 | 92065-058 | 1 | ||
| ADJUSTER,CABLE | 21 | 16002-012 | 1 | ||
| COVER,L.H ENG.BUFF | 22 | 14031-078-80 | 1 | KD100-M1/M2 | |
| COVER,L.H.ENGINE | 22 | 14031-1029 | 1 | KD100-M3/M4 | |
| OIL SEAL, VB12185 | 23 | 656G121805 | 1 | ||
| GASKET,GENERATOR COVE | 24 | 11060-1202 | 1 |
