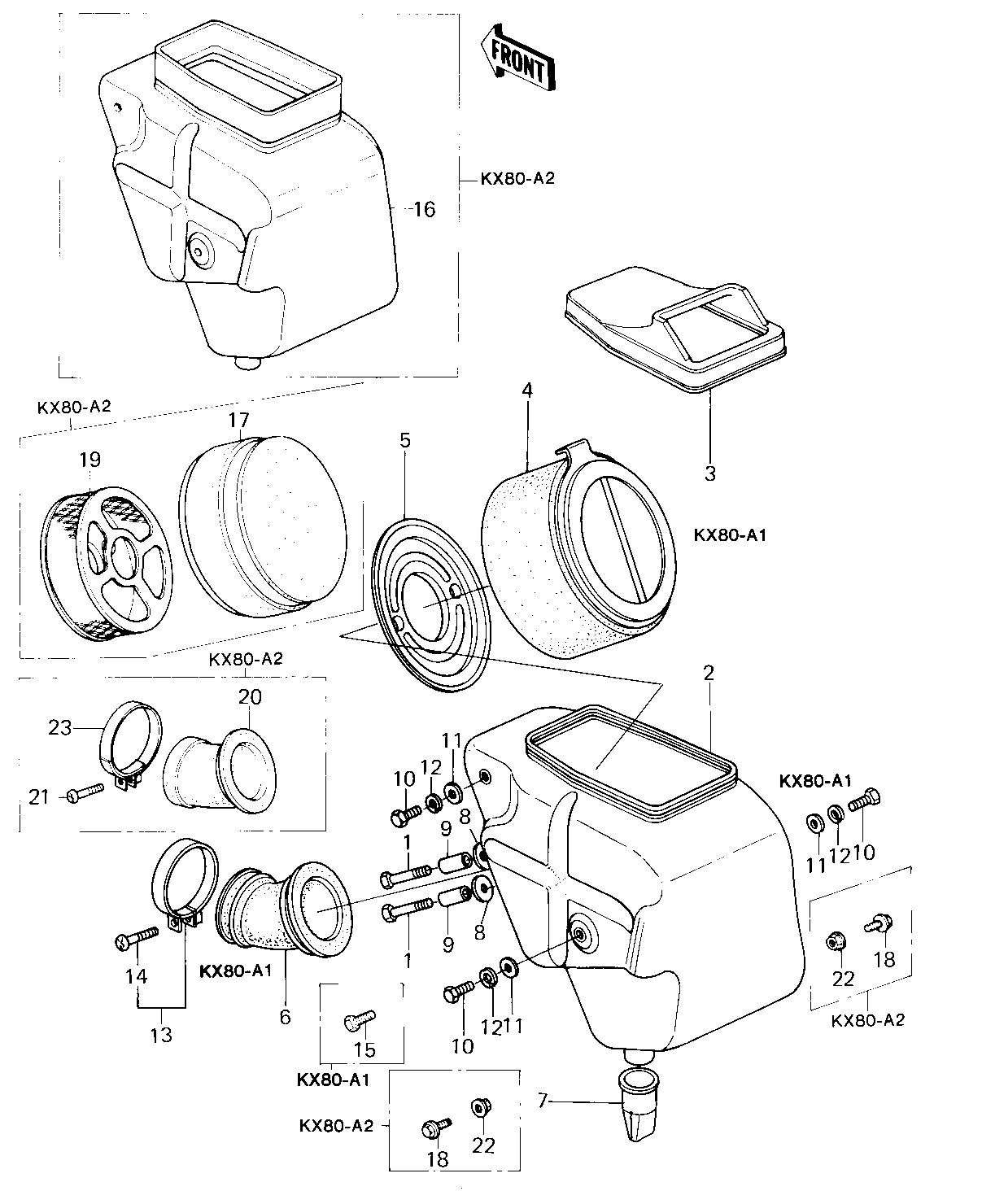

1979 KX80 - AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 1 112G0625 2 KX80-A1
CASE,AIR CLEANER 2 11011-1045 1 KX80-A1
CAP,AIR CLEANER 3 11012-1068 1 KX80-A1
ELEMENT,AIR CLNR 4 11013-1016 1 KX80-A1
PLATE,AIR CLEANER 5 13169-1162 1
DUCT,AIR CLEANER 6 14073-1017 1 KX80-A1
BOOT 7 49006-1012 1
WASHER 6.5X20X1.6T 8 92022-125 2
COLLAR 9 92027-169 2 KX80-A1
BOLT-UPSET,6X12 10 112G0612 3 KX80-A1
WASHER PLAIN 6MM 11 411B0600 3 KX80-A1
WASHER SPRING 6MM 12 461F0600 3 KX80-A1
CLAMP 13 92037-1326 1 KX80-A1
SCREW-PAN-CROS,6X35,B 14 220C0635 1 KX80-A1
BOLT,6X10 15 112G0610 2 KX80-A2~
CASE,AIR CLEANER 16 11011-1045 1 KX80-A2~
ELEMENT,AIR CLNR 17 11013-1029 1 KX80-A2~
BOLT,FLANGED,6X12 18 130G0612 3 KX80-A2~
HOLDER,ELEMENT 19 13091-1063 1 KX80-A2~
DUCT,AIR CLEANER 20 14073-1039 1 KX80-A2~
SCREW PAN HEAD 4X25 21 220B0425 1 KX80-A2~
NUT-6MM 22 92015-1078 3 KX80-A2~
CLAMP,CARBURETOR HOLD 23 92037-1484 1 KX80-A2~
