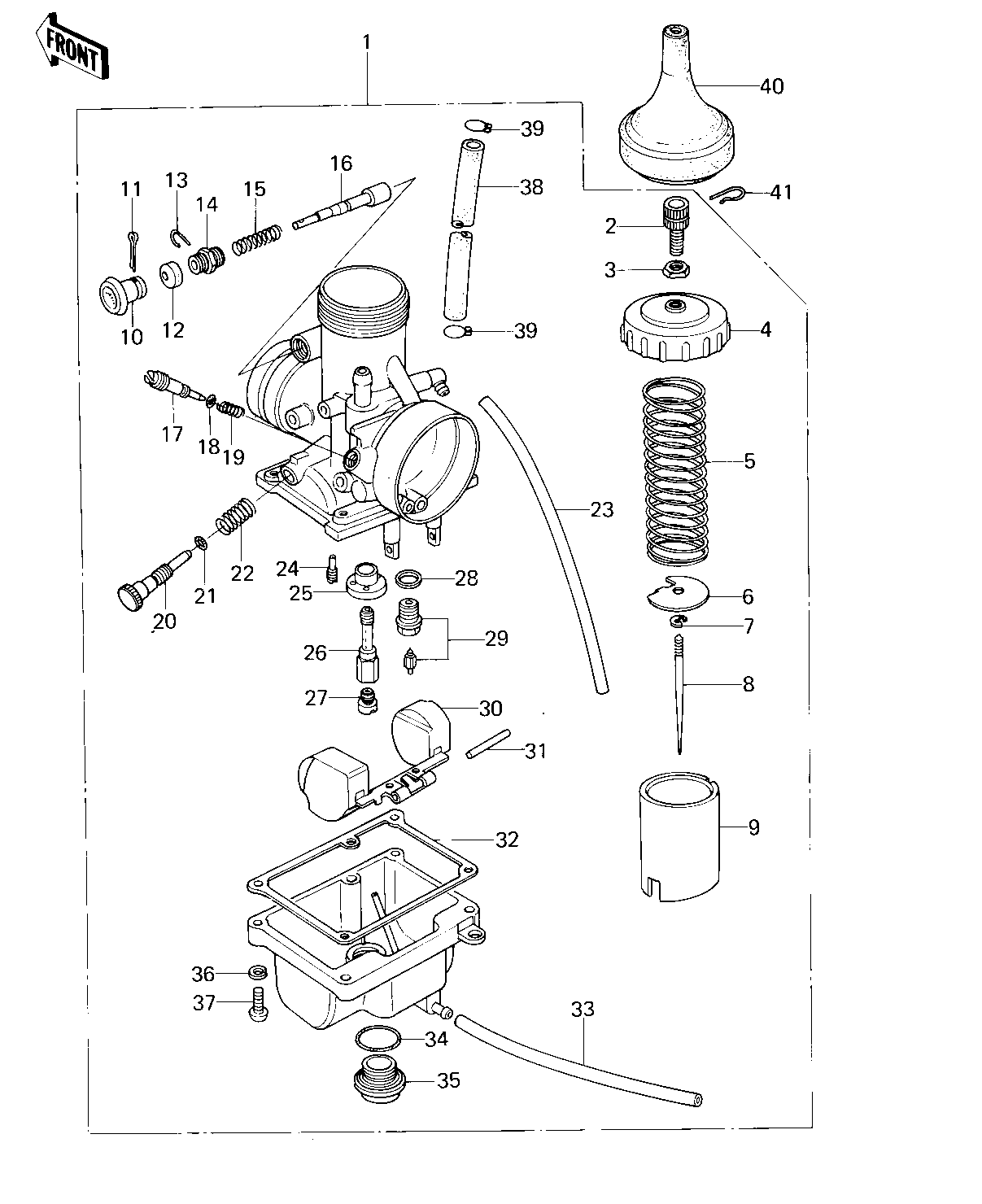

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-1096 1
CABLE ADJUSTER 2 16002-011 1
NUT-CABLE ADJUST LOCK 3 16003-006 1
CAP,MIXING CHAMBER 4 16004-025 1
SPRING,THROTTLE VALV 5 16006-023 1
SPRING SEAT,THRTL VL 6 16007-023 1
CIRCLIP 7 16008-010 1
JET NEEDLE,4J28 8 16009-1034 1
VALVE,THROTTLE,C.A1.5 9 16025-1028 1
KNOB,STARTER PLUNGER 10 92077-1009 1
PIN COTTER 1.6X15 11 550D1615 1
CAP,STARTER PLUNGER 12 16036-012 1
CIRCLIP 13 92037-1077 1
CAP,STARTER PLUNGER 14 16012-021 1
SPRING,STARTER PLUNGR 15 16013-011 1
PLUNGER ASSY,STARTER 16 16016-1004 1
SCREW,PILOT AIR 17 16014-1013 1
"O" RING 18 16038-022 1
SPRING,AIR SCREW 19 92081-1153 1
SCREW,THROTTLE ADJST 20 16021-1012 1
"0" RING 21 92055-044 1
SPRING,THROTTLE ADJST 22 92081-1152 1
TUBE,3X5X300 23 92059-1755 1
PILOT JET,#35 24 92064-1023 1
HOLDER,NEEDLE JET 25 16065-1020 1
NEEDLE JET,O-0 26 16017-1037 1
JET-MAIN NO 132.5R 27 92063-103 1
JET-MAIN,#A127.5 27 92063-1100 (1 OPTION
MAIN JET NO 130R 27 92063-057 (1 OPTION
MAIN JET NO 135R 27 92063-104 (1 OPTION
MAIN JET,#A137.5 27 92063-1087 (1 OPTION
WASHER FLOAT VLV SEAT 28 16029-004 1
FLOAT VALVE ASSY,2.6 29 16030-1004 1
FLOAT 30 16031-1005 1
FLOAT PIN 31 16032-003 1
GASKET,FLOAT CHAMBER 32 11009-1147 1
TUBE,3X5X300 33 92059-1755 1
"0" RING,MAIN JET COV 34 92055-1061 1
COVER,MAIN JET 35 16049-1001 1
WASHER SPRING 4MM 36 461F0400 4
SCREW PAN HEAD 4X16 37 220B0416 4
TUBE,5.3X10.5X155 38 92059-1080 1
CLAMP-PIPE 39 92037-072 2
BOOT,CARBURETOR 40 49006-1024 1
CIRCLIP 41 92036-018 1
