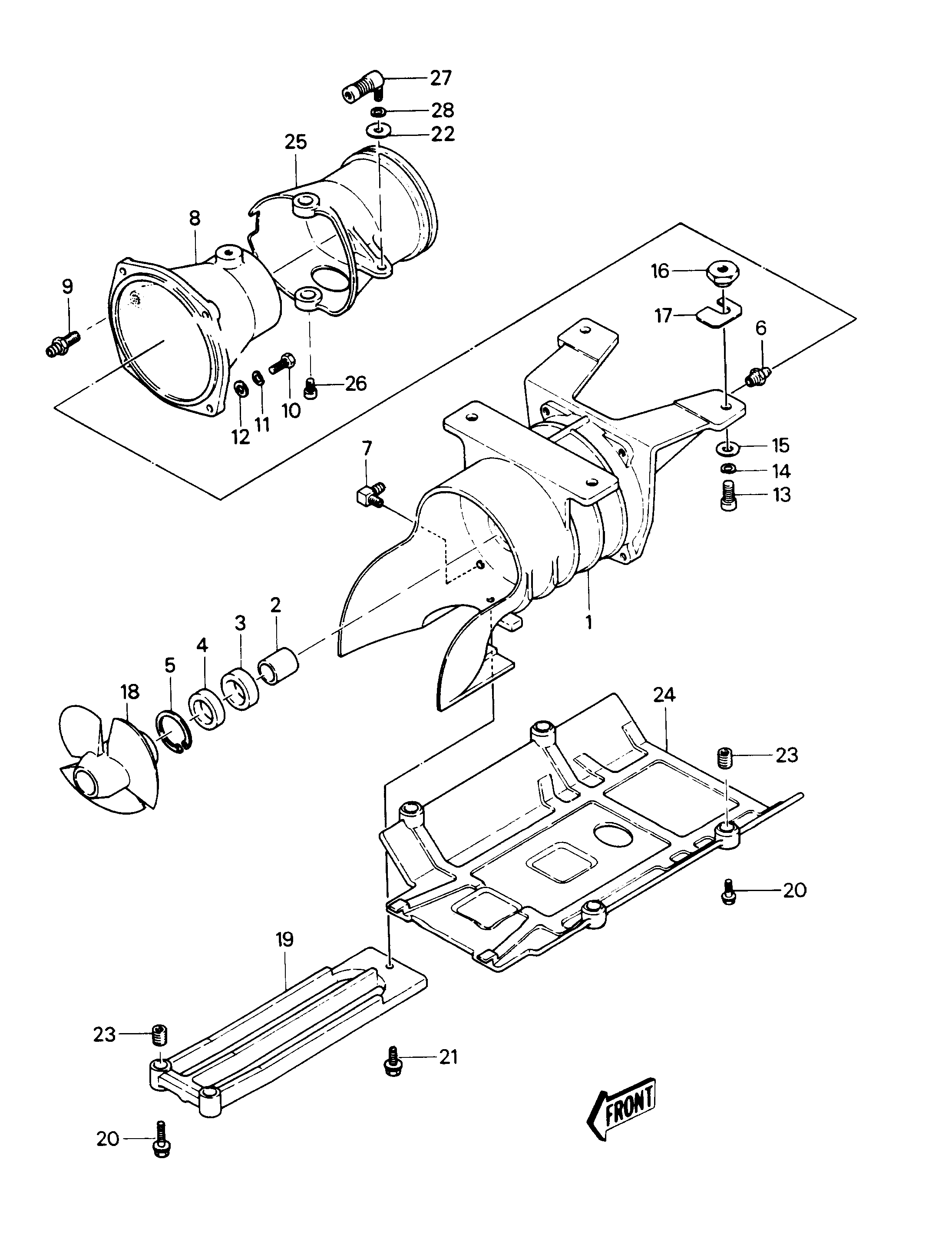

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,8X25 | 10 | 110R0825 | 4 | ||
WASHER-SPRING,8MM | 11 | 461S0800 | 4 | ||
WASHER | 12 | 92022-562 | 4 | ||
BOLT,10X25 | 13 | 92003-529 | 4 | ||
WASHER-SPRING,10MM | 14 | 461S1000 | 4 | ||
WASHER-PLAIN,10MM | 15 | 411S1000 | 4 | ||
NUT,10MM | 16 | 92015-3005 | 4 | ||
SHIM,T=0.5MM | 17A | 92025-3702 | AR | ||
SHIM,T=1.0MM | 17B | 92025-3703 | AR | ||
SHIM,T=1.5MM | 17C | 92025-3704 | AR | ||
SHIM,T=0.3MM | 17 | 92025-3701 | AR | ||
IMPELLER | 18 | 59256-504 | 1 | ||
GRATE | 19 | 59366-3001 | 1 | ||
BOLT-WP,6X25 | 20 | 156R0625 | 6 | ||
BOLT,6X12 | 21A | 92002-3763 | 1 | ||
WASHER | 22 | 92022-567 | 1 | ||
COVER-JET PUMP | 24A | 59446-3711 | 1 | ||
NOZZLE-STRG | 25 | 59476-3702 | 1 | ||
BOLT,SOCKET,6X11 | 26 | 92001-3701 | 2 | ||
JOINT-BALL | 27 | 59266-3701 | 1 | ||
WASHER-SPRING,6MM | 28 | 461S0600 | 1 | ||
CASE-PUMP | 1 | 59336-3701 | 1 | ||
BUSHING | 2 | 92028-503 | 1 | ||
SEAL-OIL,SCY20368 | 3 | 92050-502 | 1 | ||
SEAL-OIL,SC20367 | 4 | 92050-503 | 1 | ||
RING-SNAP | 5 | 92036-502 | 1 | ||
FITTING,GREASE | 6 | 92005-501 | 1 | ||
ELBOW | 7 | 52014-3002 | 1 | ||
NOZZLE-PUMP | 8 | 59136-3001 | 1 | ||
FITTING,HOSE | 9 | 92005-3001 | 1 |
