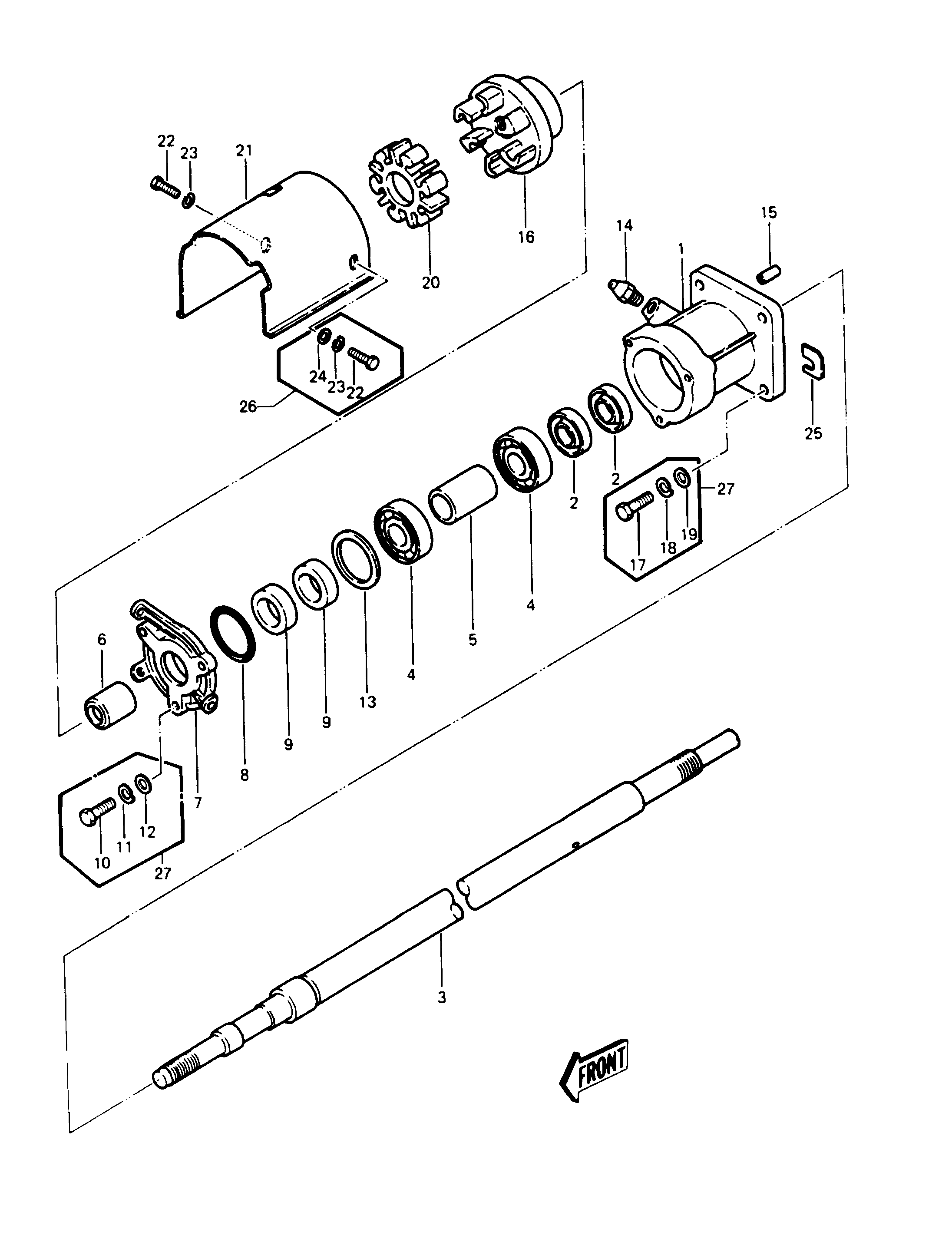

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHIM,T=0.3 13A 92025-503 AR
SHIM,T=0.15 13 92025-502 AR
FITTING,GREASE 14 92005-501 1
PIN-DOWEL 15 551R0612 2
COUPLING 16A 42034-3706 1
DAMPER,COUPLING 20 92075-520 1
COVER,COUPLING 21 59036-567 1
SHIM,T=0.5MM 25A 92025-3702 AR
SHIM,T=1.0MM 25B 92025-3703 AR
SHIM,T=1.5MM 25C 92025-3704 AR
SHIM,T=0.3MM 25 92025-3701 AR
BOLT,6X16 26 92150-3714 3
BOLT-WSP-SMALL,8X25 27 155R0825 7
HOUSING-BEARING 1 41046-502 1
SEAL-OIL,AC1799EX 2 92050-501 2
SHAFT,DRIVE 3 59111-515 1
BEARING-BALL,#6305C3 4 601B6305 2
COLLAR 5 92027-502 1
SLEEVE,BEARING 6 42036-501 1
COVER,BEARING 7 14025-3008 1
RING-O 8 92055-501 1
SEAL-OIL,AC1799EX 9 92050-501 2
