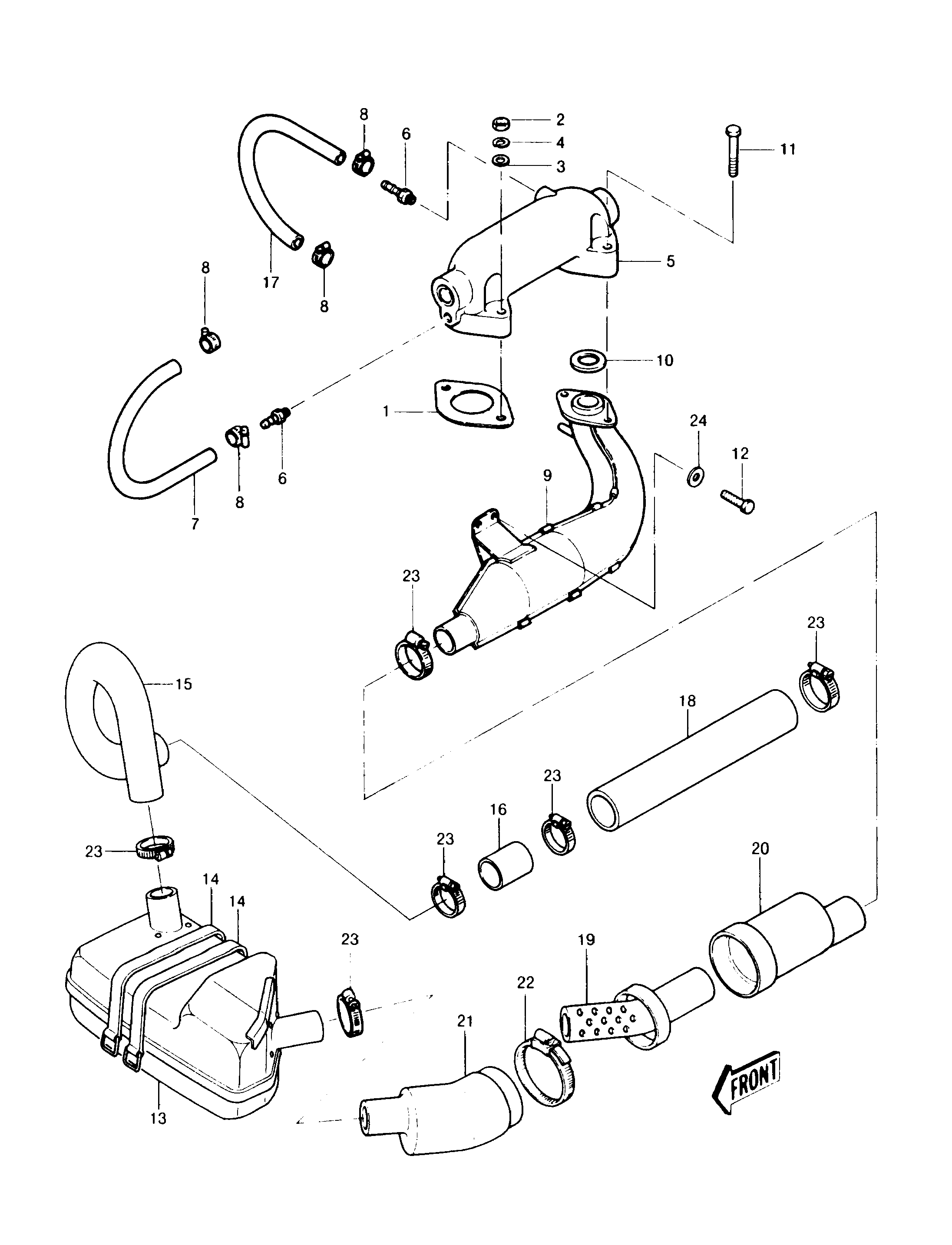

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST 10 18067-509 1
BOLT-WSP-SMALL 11 155R0845 2
BOLT-WS-SMALL 12 153R0820 2
MUFFLER-COMP,WATER BOX 13 49070-3714 1
BAND 14 92072-511 2
TUBE,EXHAUST 15 92059-3722 1
PIPE 16 32150-3740 1
TUBE,9X16X250 17 92059-502 1
TUBE 18 92059-3879 1
PIPE-EXHAUST 19 59151-528 1
TUBE 20 92059-542 1
TUBE 21 92059-543 1
CLAMP 22 92037-541 1
CLAMP 23 92037-509 6
WASHER,8.4X23X2.5 24 92022-3744 2
GASKET,EXHAUST 1 18067-502 1
NUT-HEX,8MM 2 311M0800 2
WASHER-PLAIN-SMALL,8MM 3 410S0800 2
WASHER-SPRING,8MM 4 461S0800 2
PIPE-COMP-EXHAUST 5 49062-3702 1
FITTING,HOSE 6 92005-3001 2
TUBE,9X190 7 92059-3021 1
CLAMP 8 92170-3718 4
MUFFLER 9 18001-520 1
