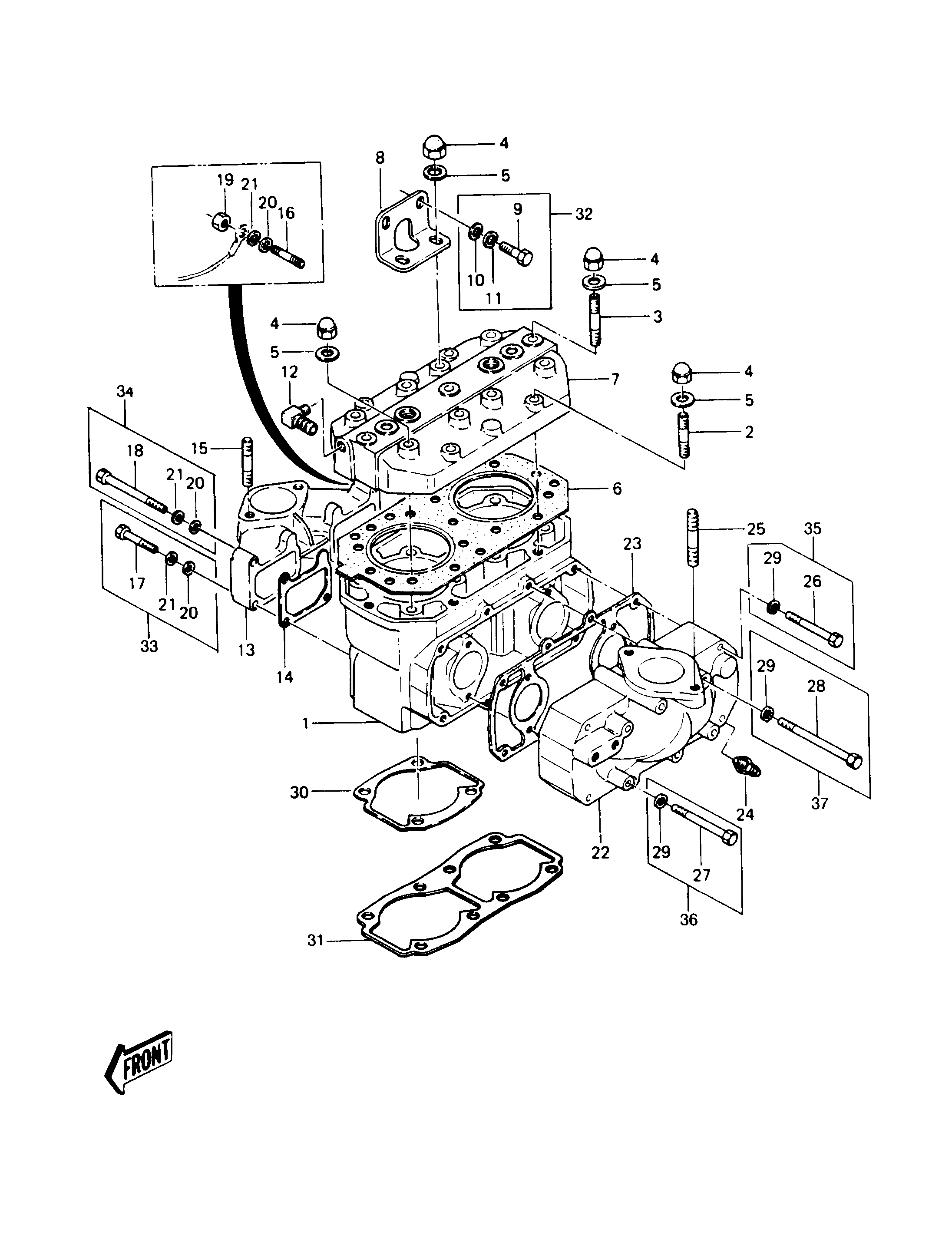

1989 JS440 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM 10 411S0600 2
WASHER-SPRING,6MM 11 461S0600 2
ELBOW 12 52014-3002 1
MANIFOLD-INTAKE 13 59076-505-YR 1
GASKET,INTAKE 14 16062-510 2
BOLT-STUD,8X35 15 172R0835 2
BOLT-STUD,6X35 16 171R0635 1
BOLT,6X35 17 110R0635 3
BOLT,6X70 18 110R0670 2
NUT-HEX,6MM 19 311R0600 1
WASHER-PLAIN-SMALL,6MM 20 410S0600 6
WASHER-SPRING,6MM 21 461S0600 6
MANIFOLD-EXHAUST 22 59081-504-YR 1
GASKET,EXHAUST MANIFOLD 23 11009-3023 1
FITTING,HOSE 24 92005-3001 1
BOLT-STUD,8X35 25 172R0835 2
BOLT,6X50 26 110R0650 6
BOLT,6X70 27 110R0670 4
BOLT,6X85 28 110R0685 2
WASHER-PLAIN-SMALL,6MM 29 410S0600 12
GASKET,CYLINDER 30 11009-505 2 ( - TC440B-046483 )
GASKET,CYLINDER 31 11009-3054 1 ( TC440B-046484 - )
CYLINDER-ENGINE 1 11005-3025-YR 1
STUD,8X42 2 92004-3016 4
STUD,8X50 3 92004-3017 3
NUT,CAP,8MM 4 92015-3003 15
WASHER-PLAIN,8MM 5 411S0800 15
GASKET-HEAD 6 11004-3019 1
HEAD-COMP-CYLINDER 7 11008-3002-YR 1
BRACKET 8 11034-3011 1
BOLT,6X14 9 110R0614 2
