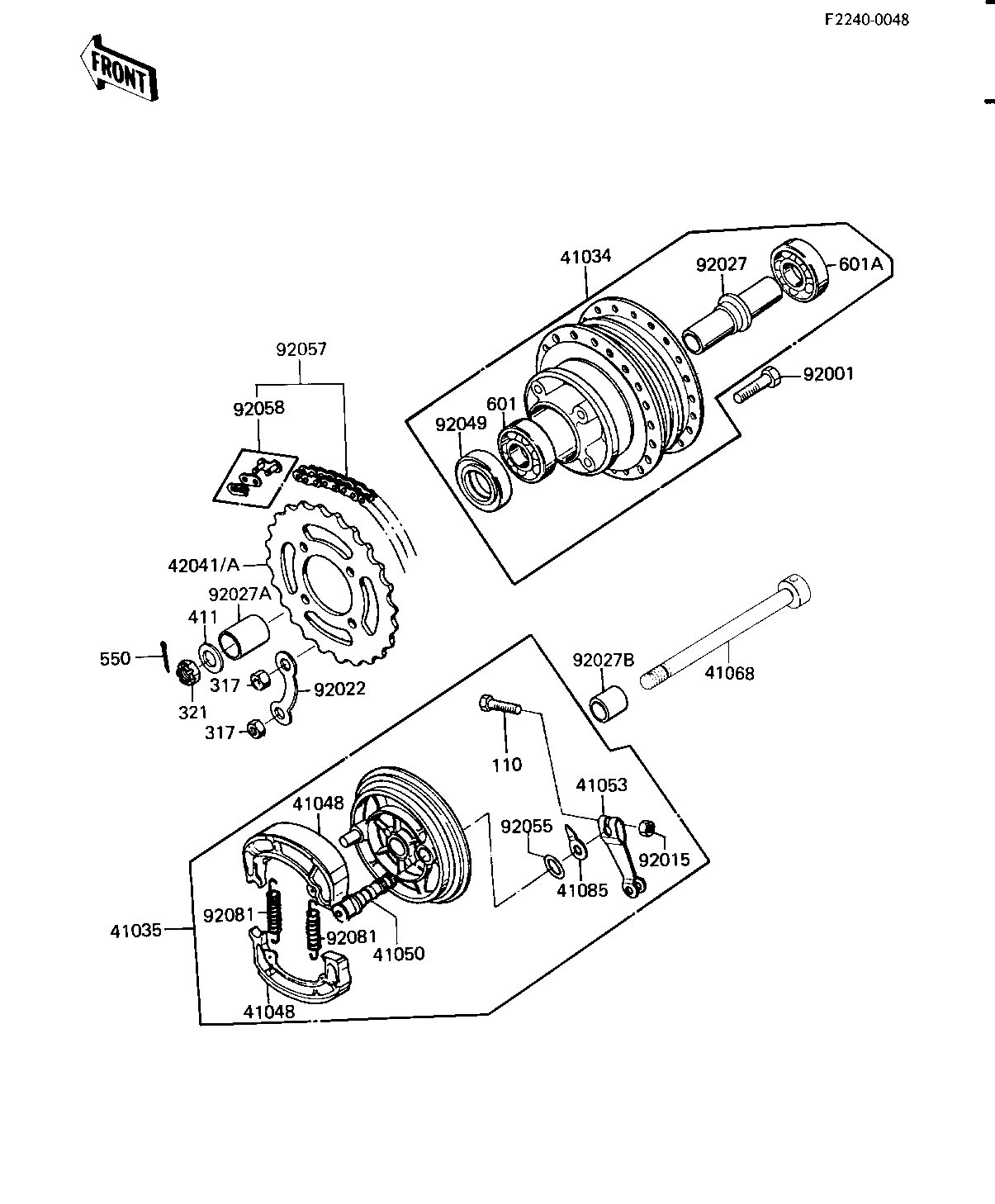

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,RR BRK,BUFF 41034 41034-1002-80 1
PANEL-ASY,RR BRK,BUFF 41035 42006-063-80 1
SHOE-BRAKE 41048 41048-1085 2
CAM SHAFT,REAR BRAKE 41050 42026-018 1
LEVER,REAR BRAKE PANL 41053 42029-027 1
AXLE,12X206 41068 41068-1091 1
INDICATOR,BKSHOE 41085 41085-003 1
REAR SPROCKET 37T 42041 42041-020 1
REAR SPROCKET 39T 42041A 42041-045 1
BOLT REAR SPROCKET 92001 92001-021 4
NUT,6MM 92015 41072-007 1
WASHER RR SPRCKT LOCK 92022 92088-003 2
SPACER RR HUB BEARING 92027 42010-003 1
COLLAR,REAR AXLE 92027A 42032-044 1
COLLAR,12.2X22X30.5 92027B 92027-1478 1
OIL SEAL RR BRK DRUM 92049 92052-001 1
"0" RING,11MM 92055 92055-004 1
CHAIN,DRIVE,EK428 98L 92057 92057-1092 1
JOINT-CHAIN 92058 92058-1014 1
SPRING,BRAKE SHOE 92081 92081-1766 2
BOLT-UPSET 110 112G0630 1
NUT,8M/M 317 317B0800 4
NUT CASTLE 12MM 321 321B1200 1
WASHER PLAIN 12MM 411 411B1200 1
PIN COTTER 3.0X25 550 550D3025 1
BEARING BALL #6301 601 601B6301 1
BEARING BALL #6301Z 601A 601B6301Z 1
