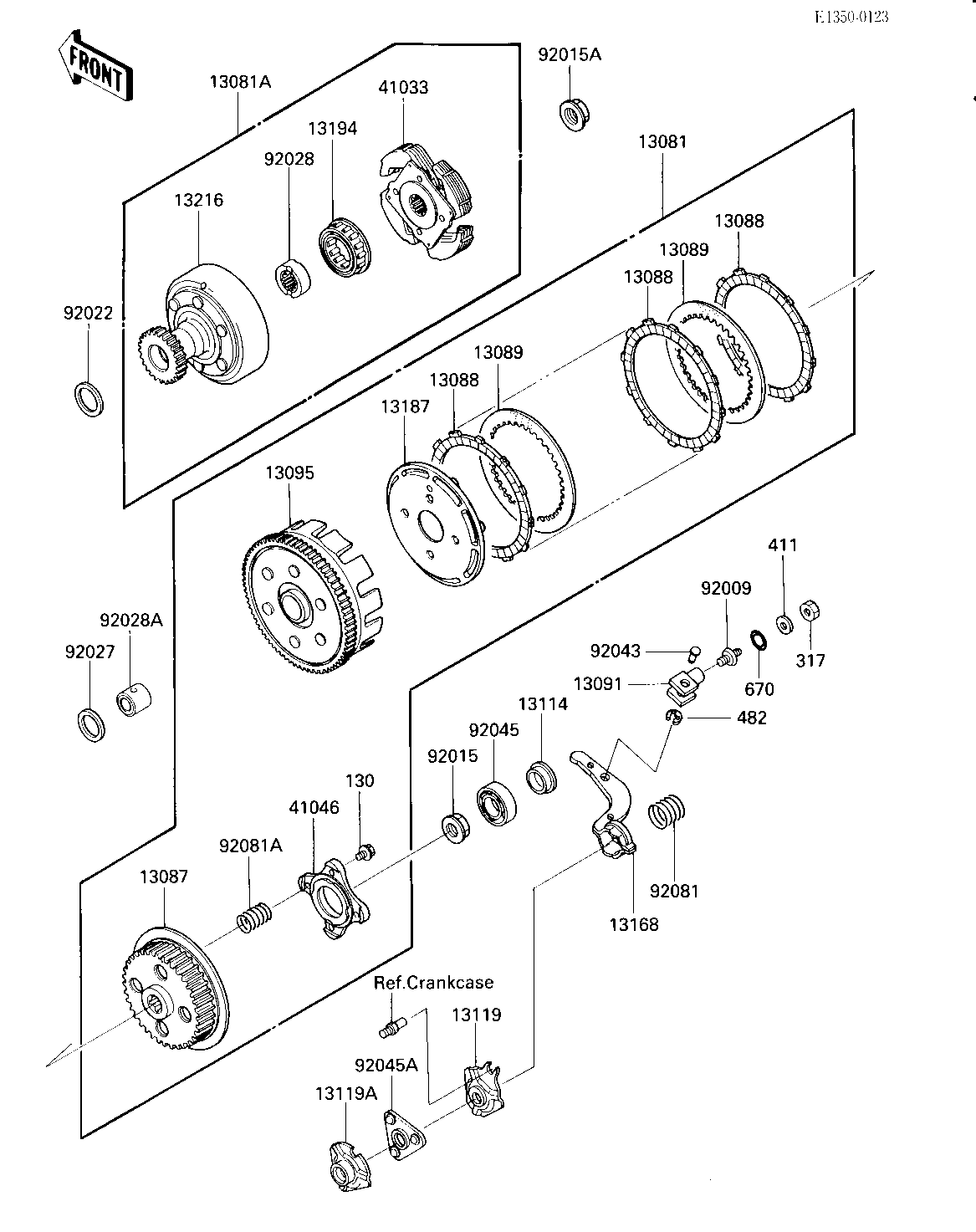

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 13081 13081-1203 1
CLUTCH-ASSY,FR 13081A 13081-1204 1
HUB-CLUTCH 13087 13087-1065 1
PLATE,CLUTCH FRICTION 13088 13088-041 5
PLATE,CLUTCH,STEEL 13089 13089-1005 4
HOLDER,CLUTCH RELEASE 13091 13091-1341 1
HOUSING-COMP-CLUTCH 13095 13095-1133 1
PUSHER-CLUTCH 13114 13114-1056 1
CAM-RELEASE 13119 13119-1060 1
CAM-RELEASE 13119A 13119-1054 1
LEVER,CLUTCH RELEASE 13168 13168-1263 1
PLATE-CLUTCH OPERATIN 13187 13187-1053 1
CLUTCH-ONEWAY 13194 13194-1055 1
GEAR-COMP,CLUTCH,FR 13216 13216-1073 1
HUB-ASSY,CLUTCH,FR 41033 41033-1937 1
HOUSING-BEARING 41046 41046-1063 1
SCREW,CLUTCH RELEASE 92009 92009-1303 1
NUT 92015 92015-1465 1
NUT,18MM 92015A 92015-1512 1
WASHER,27.3X38X1.5 92022 92022-1683 1
COLLAR,20.5X34X4 92027 92027-1888 1
BUSHING 92028 92028-1370 1
BUSHING,CLUTCH 92028A 92028-1371 1
PIN,CLUTCH RELEASE 92043 92043-1230 1
BEARING,BALL,#6905 92045 92045-036 1
RETAINER,CLUTCH RELEA 92045A 14020-1093 1
SPRING,SHOCKABSORBER, 92081 92081-1681 1
SPRING,CLUTCH 92081A 92081-1848 4
BOLT-FLANGED,6X20 130 130P0620 4
NUT,8M/M 317 317B0800 1
WASHER PLAIN 8MM 411 411B0800 1
CIRCLIP 6MM 482 482J6000 1
"O" RING,8MM 670 670B1508 1
