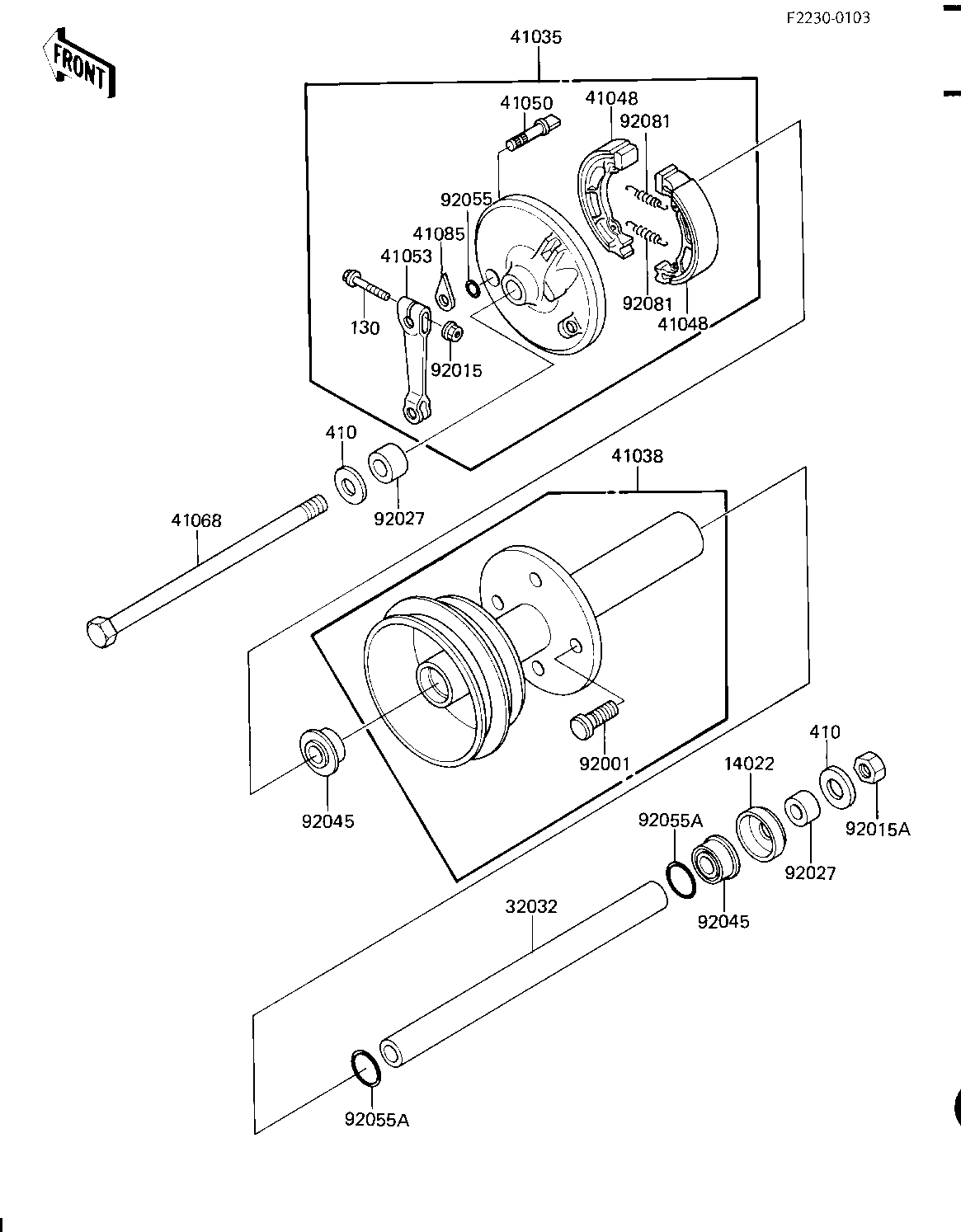

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP-BEARING 14022 14022-4003 1
PIPE,SPACER 32032 32032-4109 1
PANEL-ASSY-BRAKE,FR 41035 41035-1164 1
DRUM ASSY,FRONT 41038 41038-4013 1
SHOE-BRAKE 41048 41048-1085 2
CAM SHAFT-FRONT BRAKE 41050 41050-018 1
LEVER FRONT BRAKE CAM 41053 41053-005 1
AXLE,FRONT 41068 41068-4003 1
INDICATOR,FR BK SHOE 41085 41085-013 1
BOLT,LUG 92001 92001-4006 4
NUT,6MM 92015 41072-007 1
NUT,LOCK 14M/M 92015A 92015-1122 1
COLLAR 92027 92027-4009 2
BEARING BALL HUB-ASSY 92045 92045-4005 2
"0" RING,11MM 92055 92055-004 1
"0" RING 92055A 92055-4001 2
SPRING,BRAKE SHOE 92081 92081-1766 2
BOLT,FLANGED,6X25 130 130G0625 2
WASHER PLAIN 16MM 410 410B1600 2
