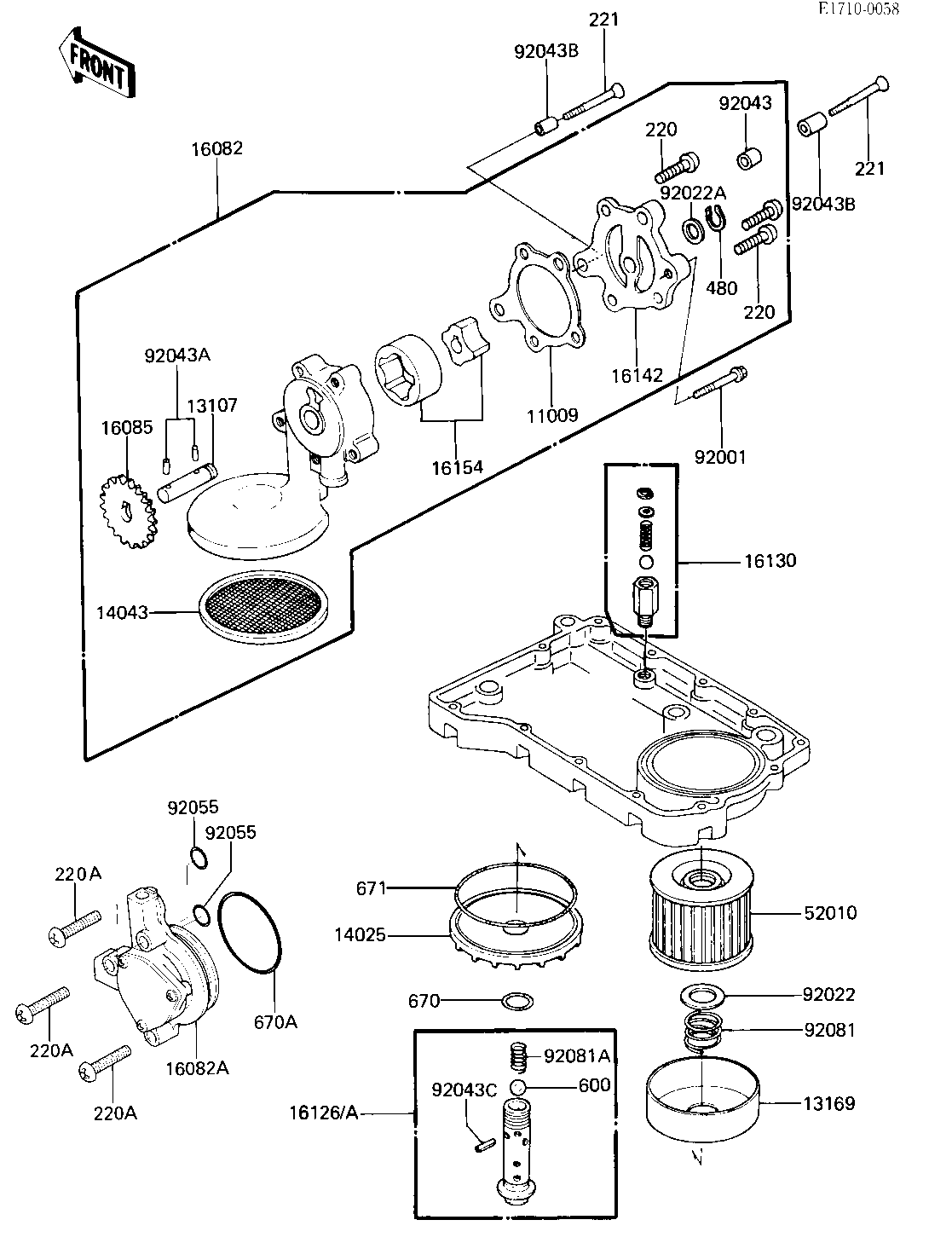

1985 GPz 750 Turbo - OIL PUMP/OIL FILTER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,OIL PUMP COVER | 11009 | 16145-004 | 1 | ||
SHAFT,OIL PUMP | 13107 | 16086-004 | 1 | ||
PLATE,OIL FILTER | 13169 | 13169-1110 | 1 | ||
COVER,OIL FILTER,F.BL | 14025 | 14025-1422 | 1 | ||
STRAINER,OIL PUMP | 14043 | 16111-004 | 1 | ||
OIL PUMP ASSY | 16082 | 16082-064 | 1 | ||
PUMP-ASSY-OIL,TURBO | 16082A | 16082-1051 | 1 | ||
GEAR,OIL PUMP,57T | 16085 | 16085-025 | 1 | ||
VALVE,OIL FILTER | 16126A | 16126-1108 | 1 | ||
RELEAF VALVE ASSY | 16130 | 16130-1001 | 1 | ||
COVER,OIL PUMP | 16142 | 16142-005 | 1 | ||
ROTOR ASSY,OIL PUMP | 16154 | 16154-003 | 1 | ||
FILTER,OIL | 52010 | 16099-003 | 1 | ||
BOLT,HEX HEAD,6X45 | 92001 | 92001-165 | 1 | ||
WASHER,20.5X30X1.0 | 92022 | 92022-1012 | 1 | ||
WASHER,PLAIN | 92022A | 92022-311 | 1 | ||
PIN,DOWEL,8X10 | 92043 | 92043-1302 | 1 | ||
PIN,DOWEL | 92043A | 92042-041 | 2 | ||
PIN,DOWEL,6.2X8X28 | 92043B | 92042-050 | 2 | ||
SPRING PIN | 92043C | 92043-111 | 1 | ||
"O" RING | 92055 | 92055-074 | 2 | ||
SPRING-CHANG LEVER | 92081 | 92081-101 | 1 | ||
SPRING | 92081A | 92081-109 | 1 | ||
SCREW PAN HEAD 6X22 | 220 | 220B0622 | 3 | ||
SCREW PAN HEAD 6X30 | 220A | 220B0630 | 3 | ||
SCREW,CNTSNK HD,6X55 | 221 | 221B0655 | 2 | ||
CIRCLIP,11MM | 480 | 480J1100 | 1 | ||
BALL STEEL 3/8' | 600 | 600A1200 | 1 | ||
"0" RING,16MM | 670 | 670B2016 | 1 | ||
"0" RING,46MM | 670A | 670B3046 | 1 | ||
"0" RING,90MM | 671 | 671B2590 | 1 |
