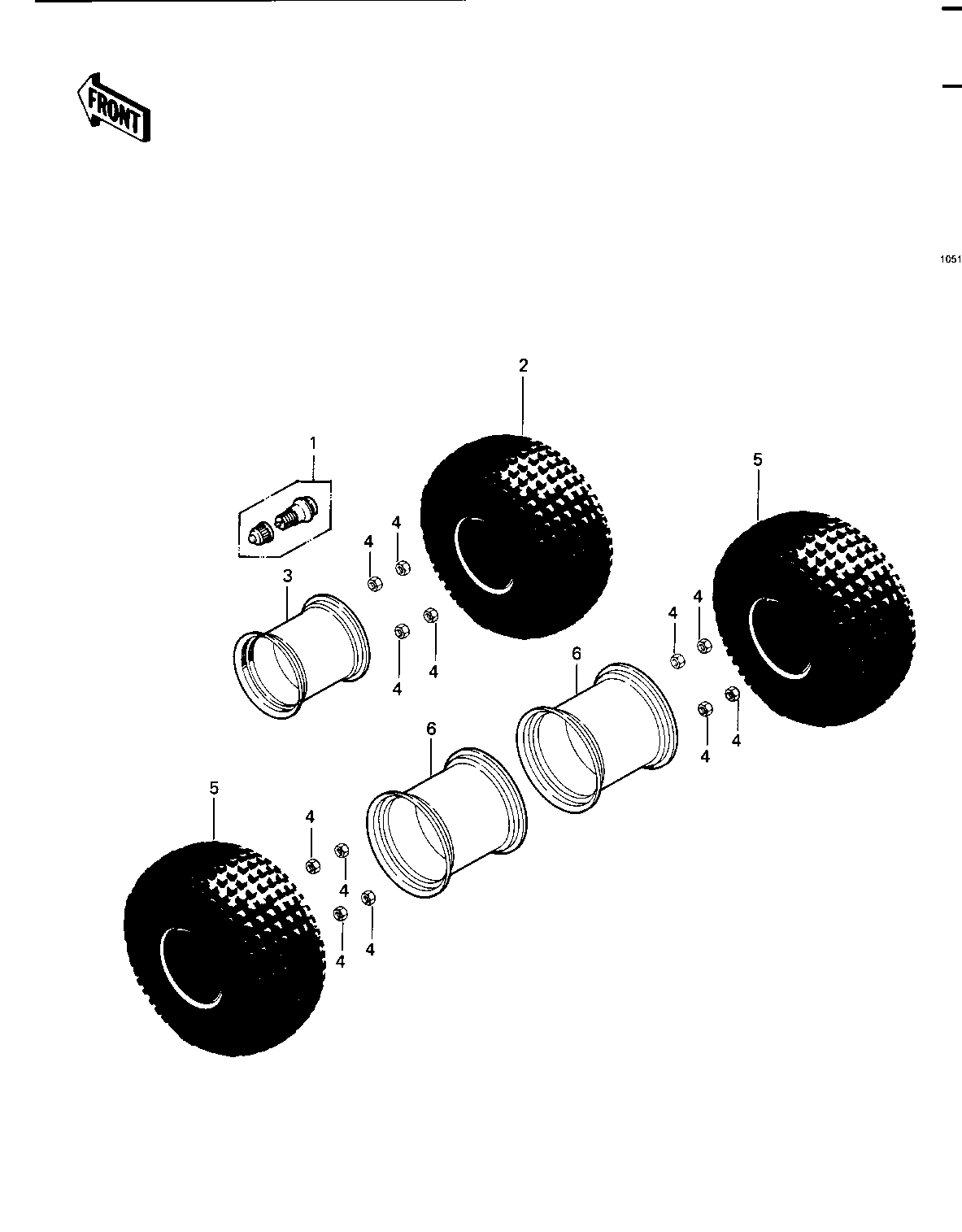

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 1 16126-4001 3
TIRE 22X11-8 KNOBBY F 2 41002-4014 1 DUNLOP
RIM-FR,J-WHITE 3 41025-4005-8C 1
NUT 4 92015-4005 12
TIRE 25X12-9 KNOBBY R 5 41002-4013 2 DUNLOP
RIM,RR,J.WHITE 6 41025-1123-8C 2
