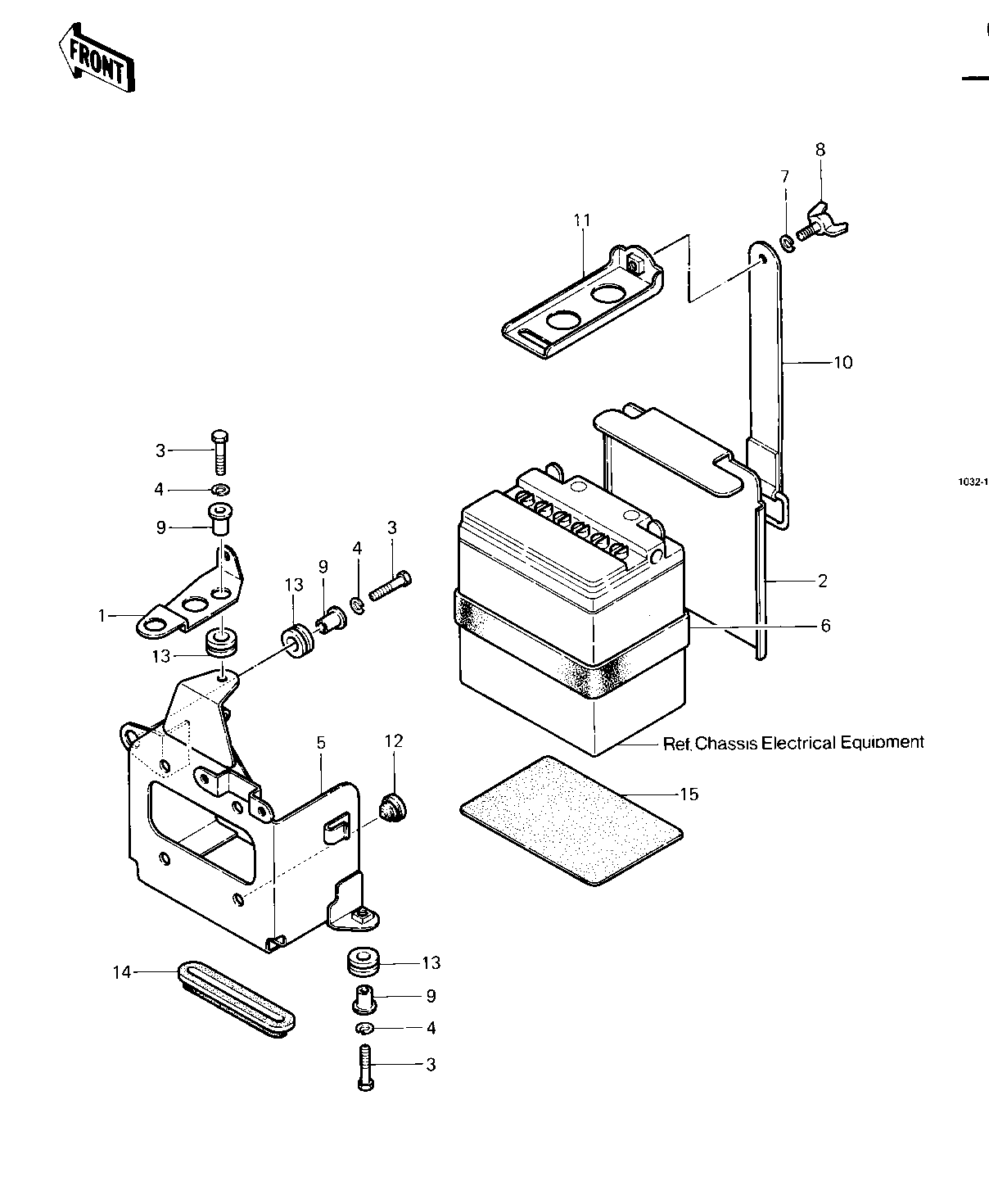

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BATTERY CASE 1 11034-4213 1
COVER 2 14025-4007 1
BOLT-UPSET,6X20 3 112G0620 3
WASHER SPRING 6MM 4 461F0600 3
CASE-BATTERY 5 32097-4006 1
MAT-BATTERY SIDE 6 32103-023 1
WASHER,SPING,6MM 7 461F0600 1
BOLT,CLNR ELEMENT 8 92003-199 1
COLLAR 9 92027-1045 3
BAND,BATTERY 10 92072-4005 1
BAND,BATTERY 11 92072-4006 1
DAMPER RUBBER 12 92075-078 4
DAMPER RUBBER 13 92075-277 3
DAMPER RUBBER 14 92075-280 1
DAMPER,BATTRY CASE 15 92075-4019 1
