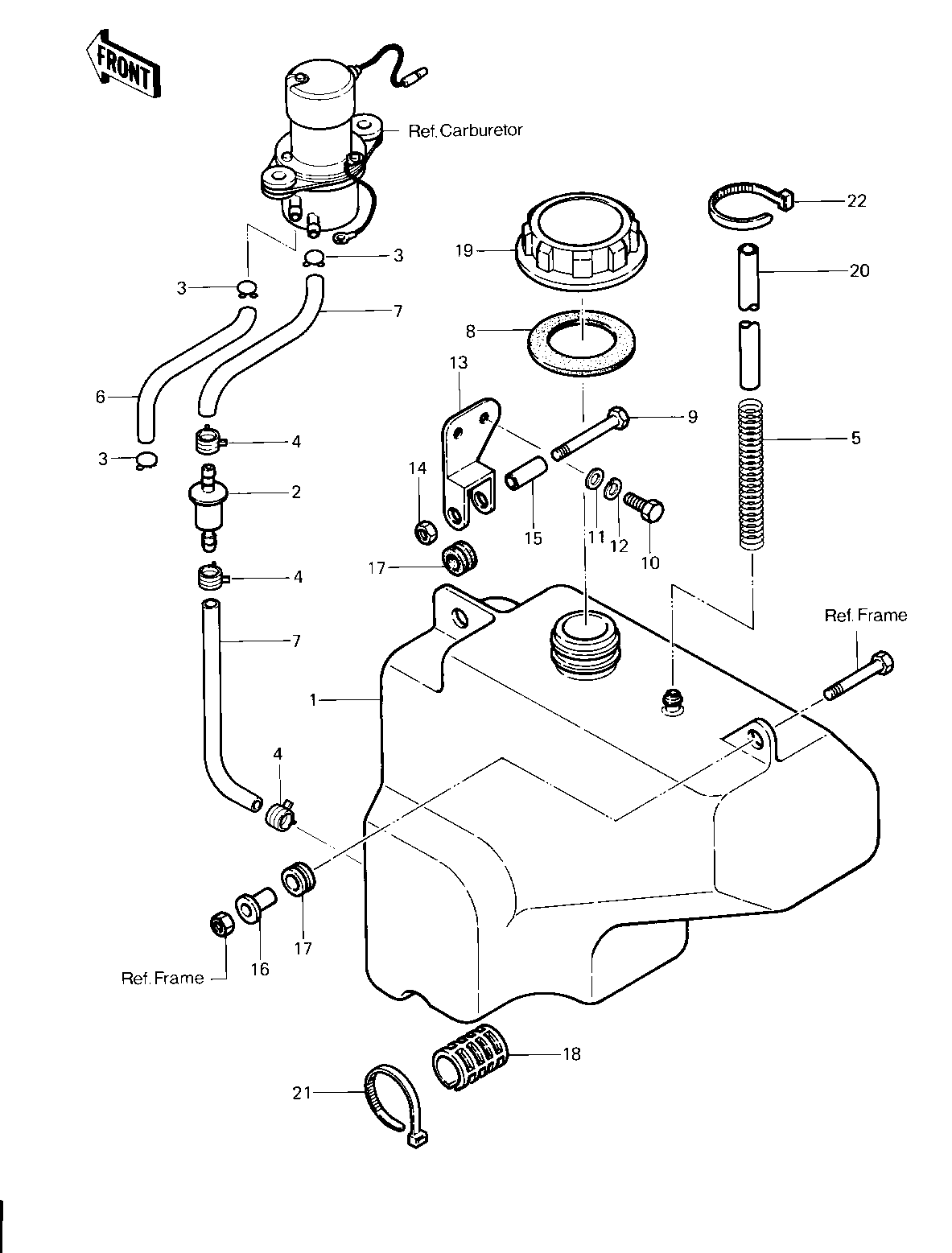

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TANK-FUEL,GRAY 1 51001-4003-8L 1
FILTER-FUEL 2 49019-4001 1
CLAMP,TUBE 3 92037-1682 3
CLAMP 4 92037-4009 3
SPRING 5 92081-4011 1
TUBE,5.3X10.5X450 6 92059-4030 1
TUBE,5.3X10.5X85 7 92059-4029 2
GASKET,FUEL TANK CAP 8 11009-3020 1
BOLT-SMALL-UPSET,8X30 9 115G0830 1
BOLT-UPSET,6X12 10 112G0612 2
WASHER PLAIN 6MM 11 411B0600 2
WASHER SPRING 6MM 12 461F0600 2
BRACKET-TANK 13 32052-4010 1
NUT,LOCK,8MM 14 92015-1124 1
SPACER FUEL TANK MONT 15 92027-012 1
COLLAR,FUEL TANK FITT 16 92027-1134 1
DAMPER RUBB TANK FRNT 17 92075-013 2
DAMPER RUBBER 18 92075-084 2
CAP,FUEL TANK 19 51049-3001 1
TUBE 20 92059-4033 1
BAND 21 92072-3505 2
BAND 22 92072-4004 3
