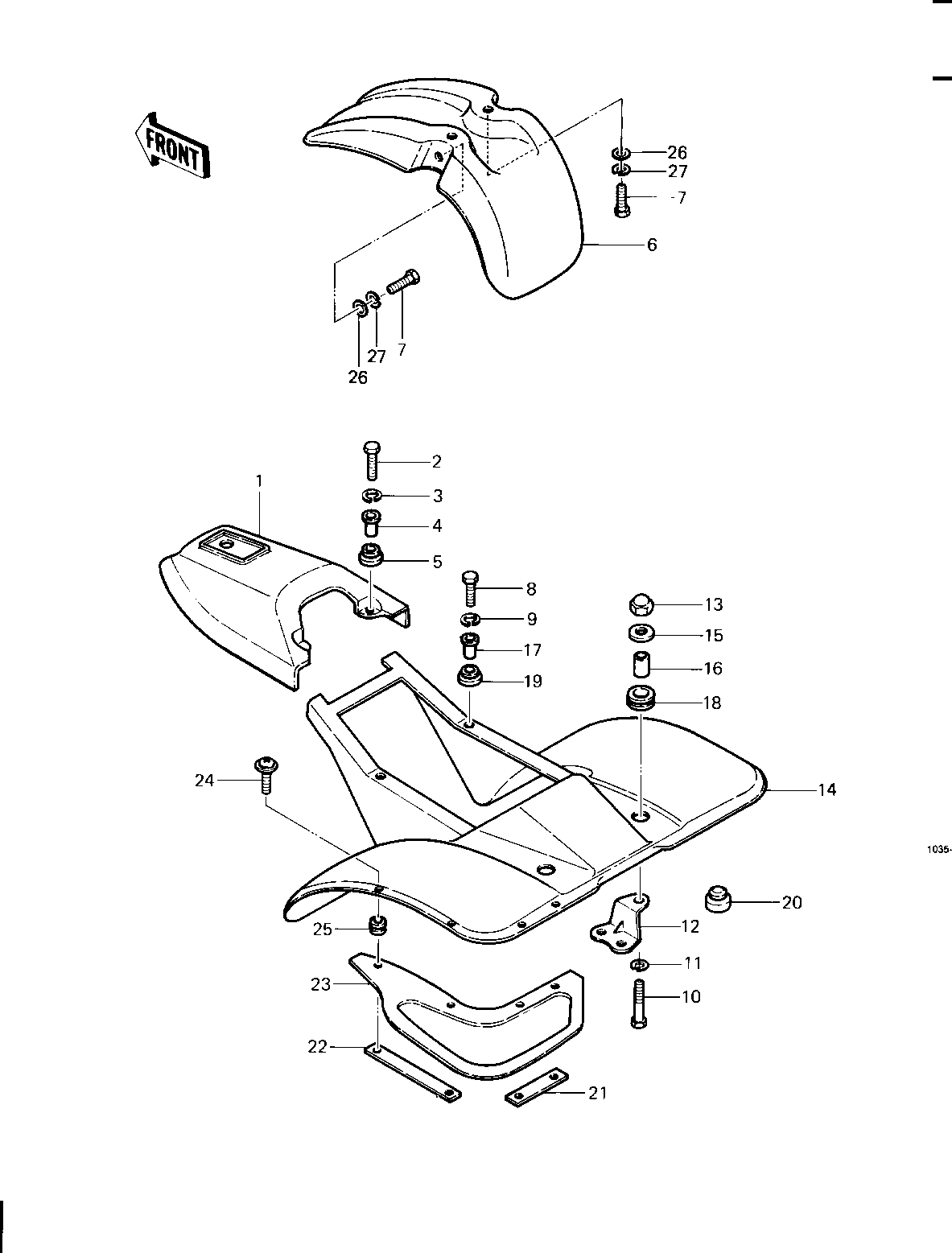

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FR,BLACK 1 14025-4008-6D 1
COVER,FR,RED 1 14025-4008-8S 1
BOLT 6X22 2 112B0622 2
WASHER SPRING 6MM 3 461F0600 2
DAMPER RUBBER 5 92075-112 2
FENDER-FR,BLACK 6 35004-4005-6D 1
FENDER-FR,RED 6 35004-4005-8S 1
BOLT-UPSET 7 112G0618 4
BOLT 6X22 8 112B0622 2
WASHER SPRING 6MM 9 461F0600 2
BOLT-SMALL-UPSET 8X25 10 115G0825 2
WASHER SPRING 8MM 11 461F0800 2
BRACKET 12 32065-4008 2
NUT,CAP,8M/M 13 323N0800 2
FENDER-RR,BLACK 14 35022-4002-6D 1
FENDER-RR,RED 14 35022-4002-8S 1
92022-101 (Canada) 15 92022-092 2
COLLAR 16 92027-102 2
COLLAR 17 92027-194 2
DAMPER RUBB TANK FRNT 18 92075-013 2
DAMPER RUBBER 19 92075-112 2
DAMPER RUBBER 20 92075-281 2
BRACKET,FLAP 21 11034-4062 2
BRACKET,FLAP 22 11034-4063 2
FLAP 23 35019-4004 2
SCREW,6X20 24 92009-1289 8
DAMPER RUBBER 25 92075-051 8
WASHER 6.5X20X1.6T 26 92022-125 4
WASHER SPRING 6MM 27 461F0600 4
