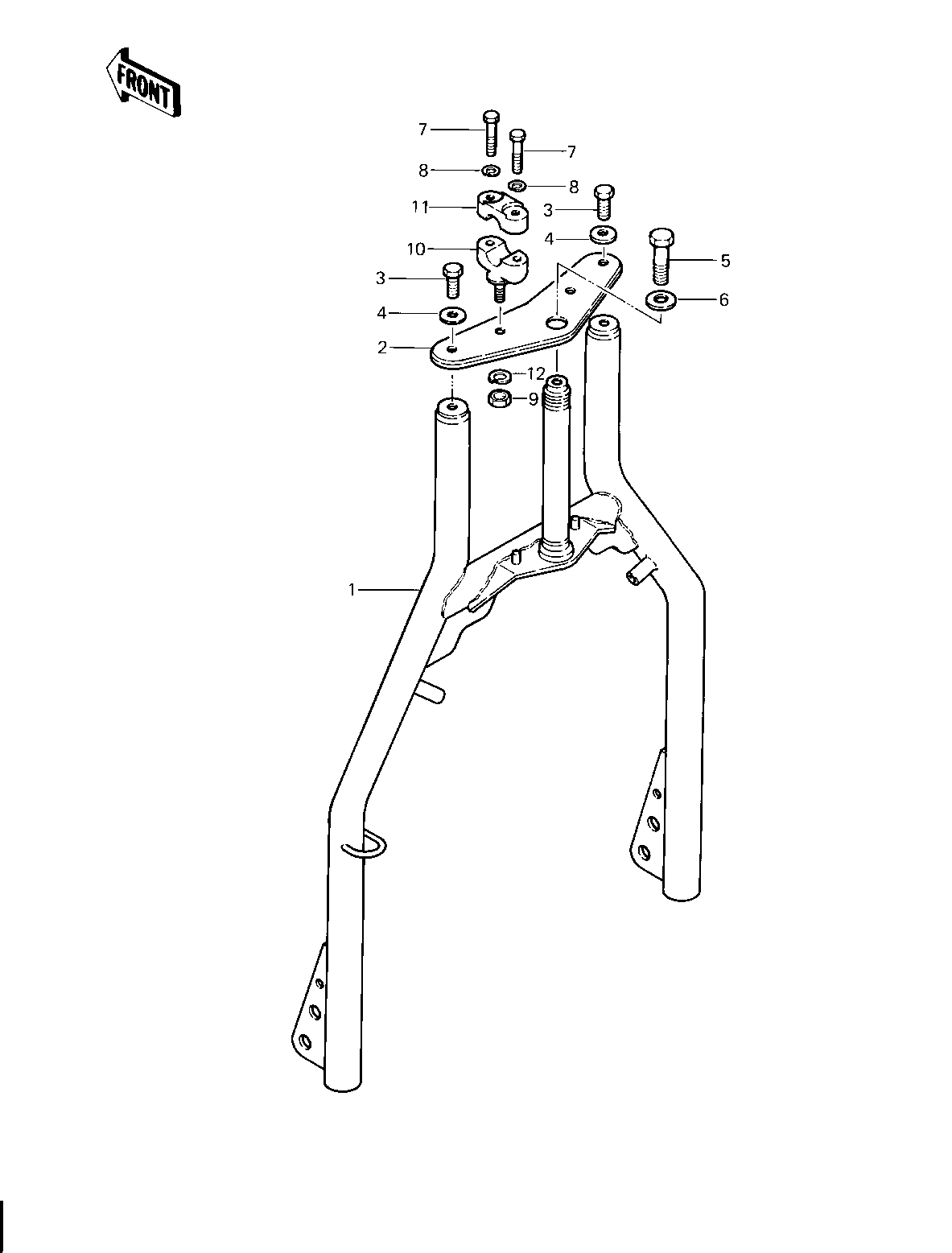

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT,BLACK 1 44001-4009-8G 1
FRONT FORK,RED 1 44001-4009-8R 1
HOLDER-FORK UPPER 2 44039-4003 1
BOLT 3 92001-1742 2
WASHER 4 92022-1381 2
BOLT,STEERING STEM 5 44041-072 1
WASHER,STEERING STEM 6 44043-056 1
BOLT, HEX HEAD, 8 X 35 7 114B0835 4
WASHER SPRING 8MM 8 461F0800 4
NUT,10MM 9 314B1000 2
HOLDER,HANDLEBAR,BUFF 10 46012-002-80 2
HOLDER UPPER HANDLBAR 11 46012-004 2
WASHER SPRING 10MM 12 461F1000 2
