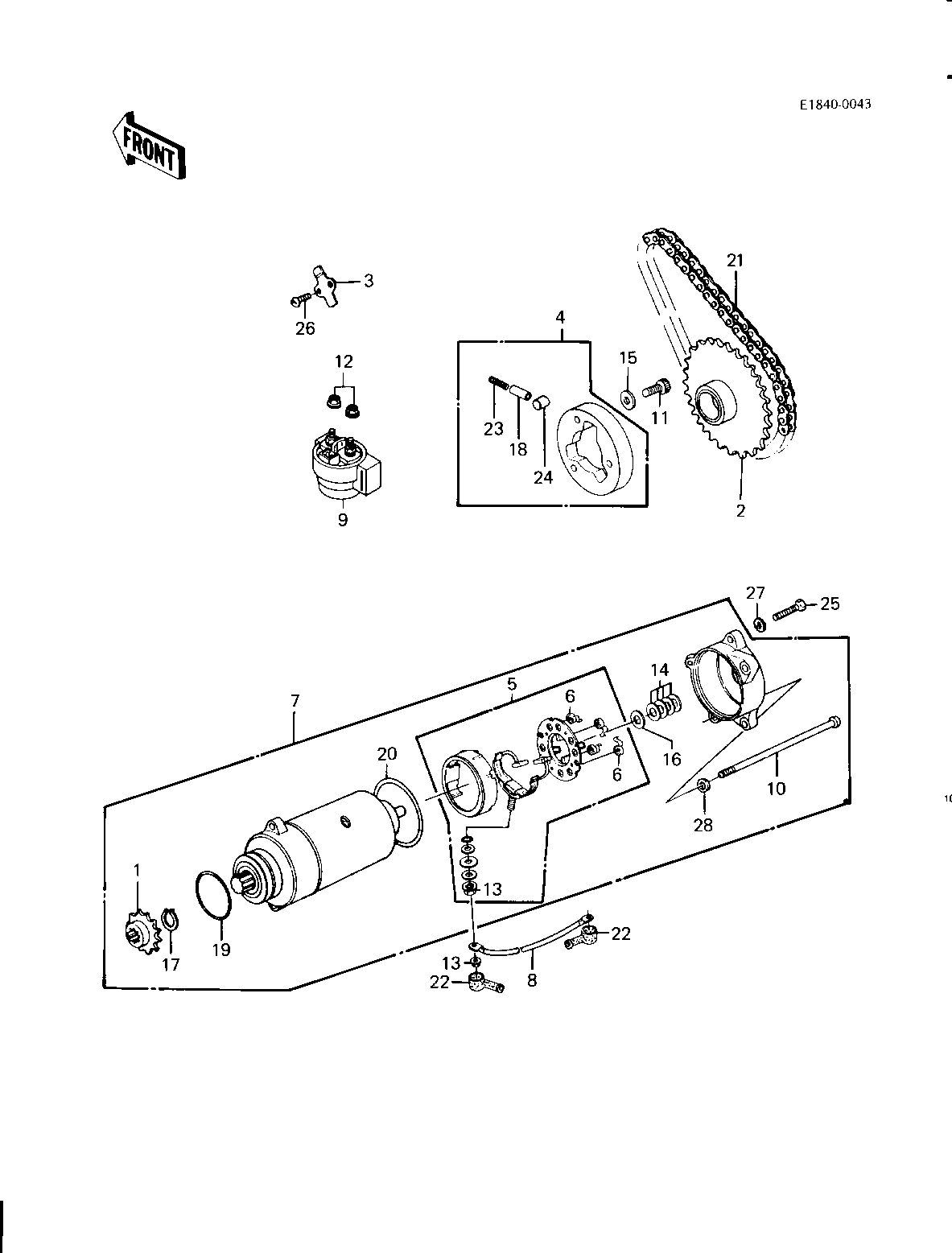

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,STARTER MOTO 1 12046-1004 1
SPROCKET,STARTER CLUT 2 12046-1107 1
PLATE 3 13169-1010 1
CLUTCH ASSY,ONEWAY 4 13193-1002 1
BRUSH,CARBON 5 21039-1053 1
SPRING-BRUSH 6 21040-1003 4
STARTER-ELECTRIC 7 21163-1036 1
WIRE-LEAD,STARTER MOT 8 26011-1201 1
SWITCH,STARTER 9 27010-1314 1
SCREW,PAN HEAD,6X130 10 92001-1046 2
BOLT 11 120P0816 3
NUT-6MM 12 92015-1078 2
NUT-6MM 13 92015-1078 2
WASHER,THRUST,0.2T 14 21025-011 AR
WASHER,PLAIN 15 92022-1108 3
WASHER,THRUST,0.8T 16 92022-1132 1
CIRCLIP,13M/M 17 92033-037 1
PIN 18 92043-132 3
"0" RING,42.8MM 19 21027-005 1
"0" RING,STARTER MOTR 20 92055-1086 2
CHAIN,DYNAMO 21 92057-1009 1
GROMMET,CORD 22 21017-017 2
SPRING,COIL 23 92081-159 3
ROLLER 24 92122-006 3
BOLT-SMALL-UPSET 8X25 25 115G0825 2
SCREW PAN HEAD 6X14 26 220B0614 1
WASHER PLAIN 6MM 27 411B0600 2
WASHER SPRING 6MM 28 461F0600 2
