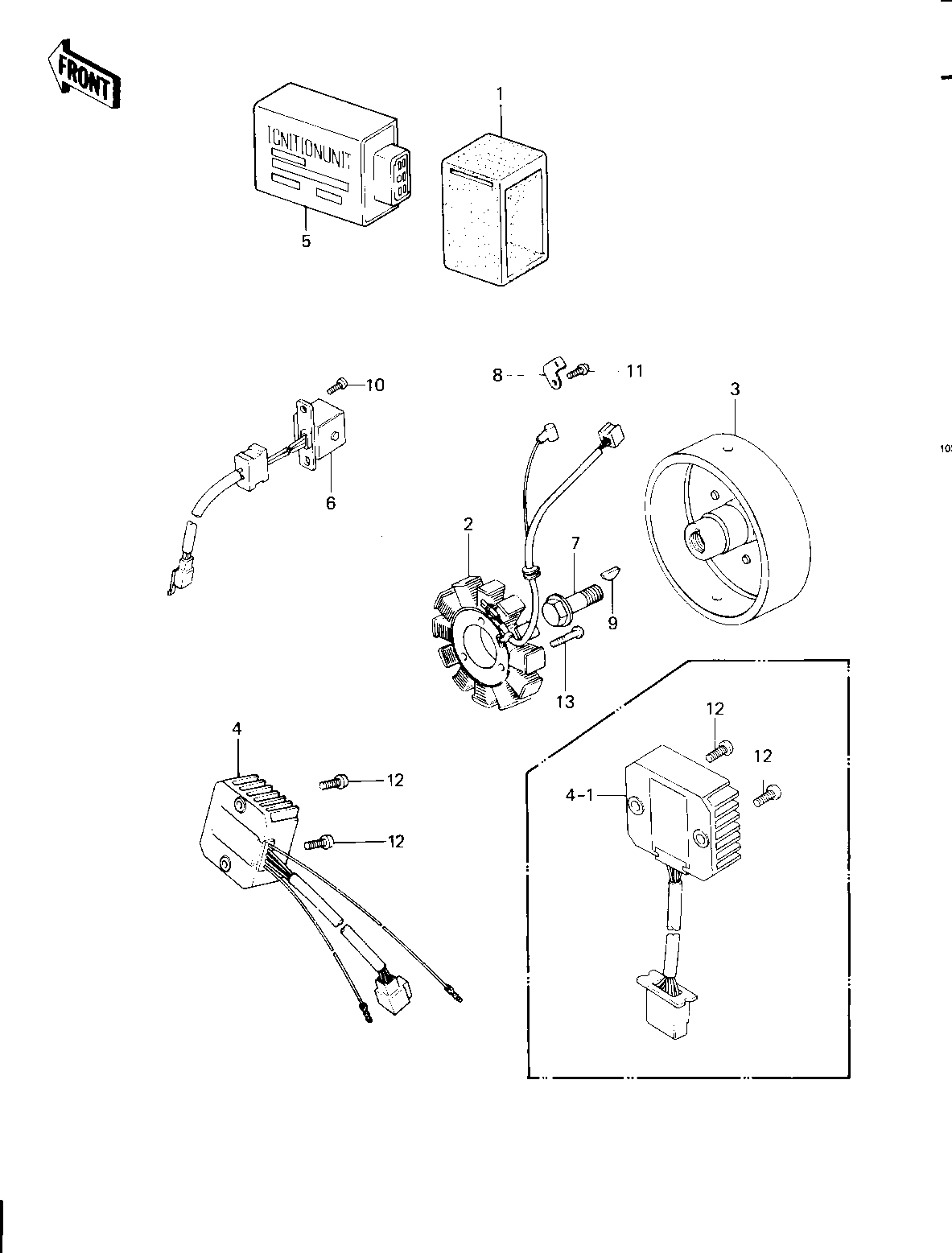

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 1 13091-1095 1
STATOR ASSY 2 21003-1002 1
ROTOR 3 21007-1107 1
REGULATOR,VOLTAGE 4 21066-1014 1 --F/NO. 501600
REGULATOR-VOLTAGE 4-1 21066-1032 1 F/NO. 501601--
IGNITER 5 21119-1193 1
COIL-PULSING 6 59026-1018 1
BOLT,10X40 7 92001-1201 1
CLAMP 8 92037-194 1
WOODRUFF KEY 9 92038-001 1
SCREW PAN HEAD 5X8 10 220B0508 2
SCREW PAN HEAD 6X8 11 220B0608 2
SCREW PAN HEAD 6X14 12 220B0614 2
SCREW PAN HEAD 6X20 13 220B0620 3
