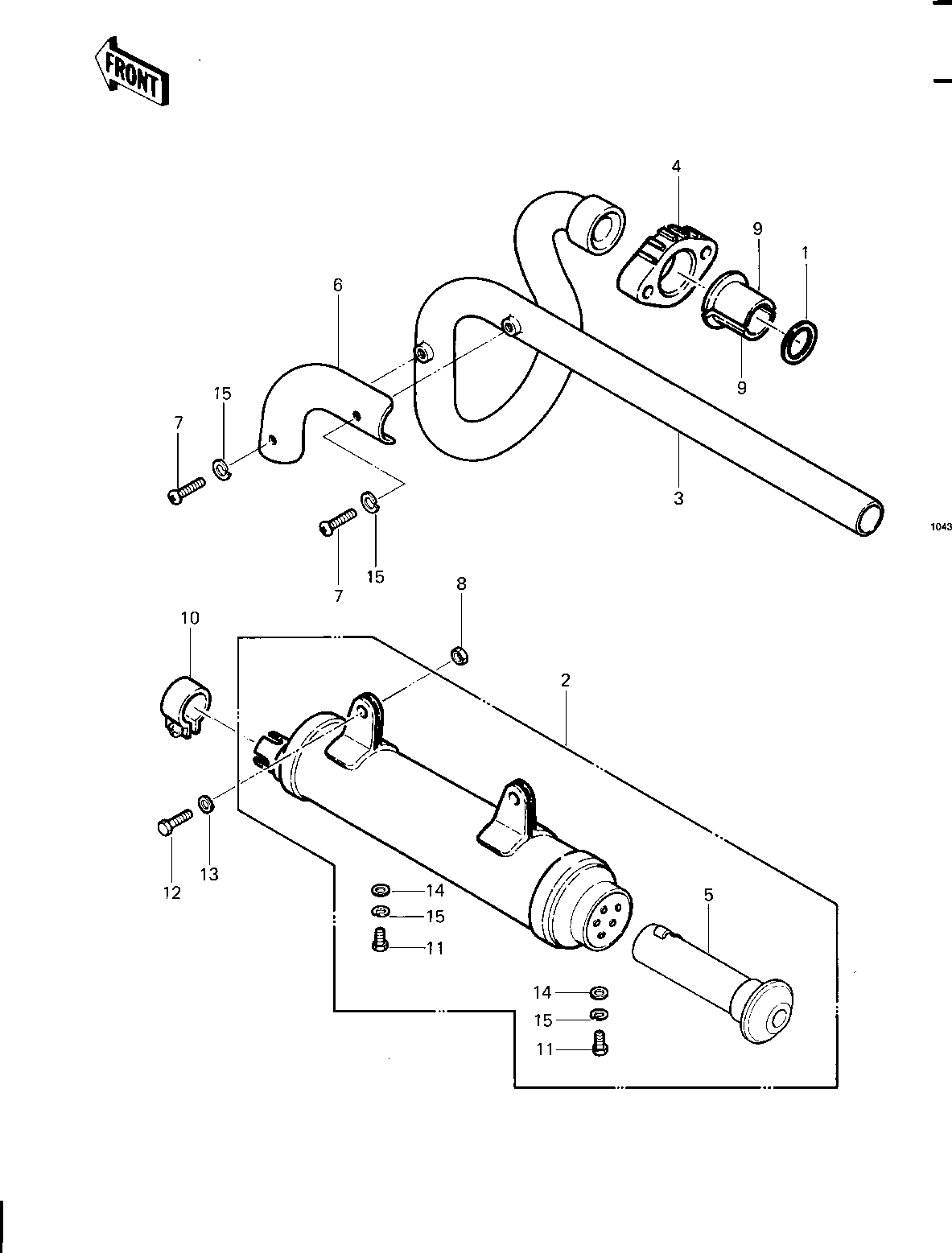

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE H 1 11009-1866 1
MUFFLER 2 18001-1451 1
MUFFLER 2 18001-1451 1 EPA REQUIRED 1/1/83
PIPE EXHAUST 3 18049-1203 1
HOLDER EXHAUST PIPE 4 18069-1014 1
BAFFLE-PIPE MUFFLER 5 49099-1119 1
COVER-EXHAUST PIPE 6 49107-1006 1
SCREW 7 92009-1054 2
NUT,LOCK,8MM 8 92015-1124 1
INSERT,EXHAUST PIPE 9 92027-278 2
CLAMP,MUFFLER FITTING 10 92037-1035 1
BOLT-UPSET,6X12 11 112G0612 2
BOLT,8X20 12 115G0820 1
WASHER PLAIN 8MM 13 410B0800 1
WASHER PLAIN 6MM 14 411B0600 2
WASHER SPRING 6MM 15 461F0600 4
