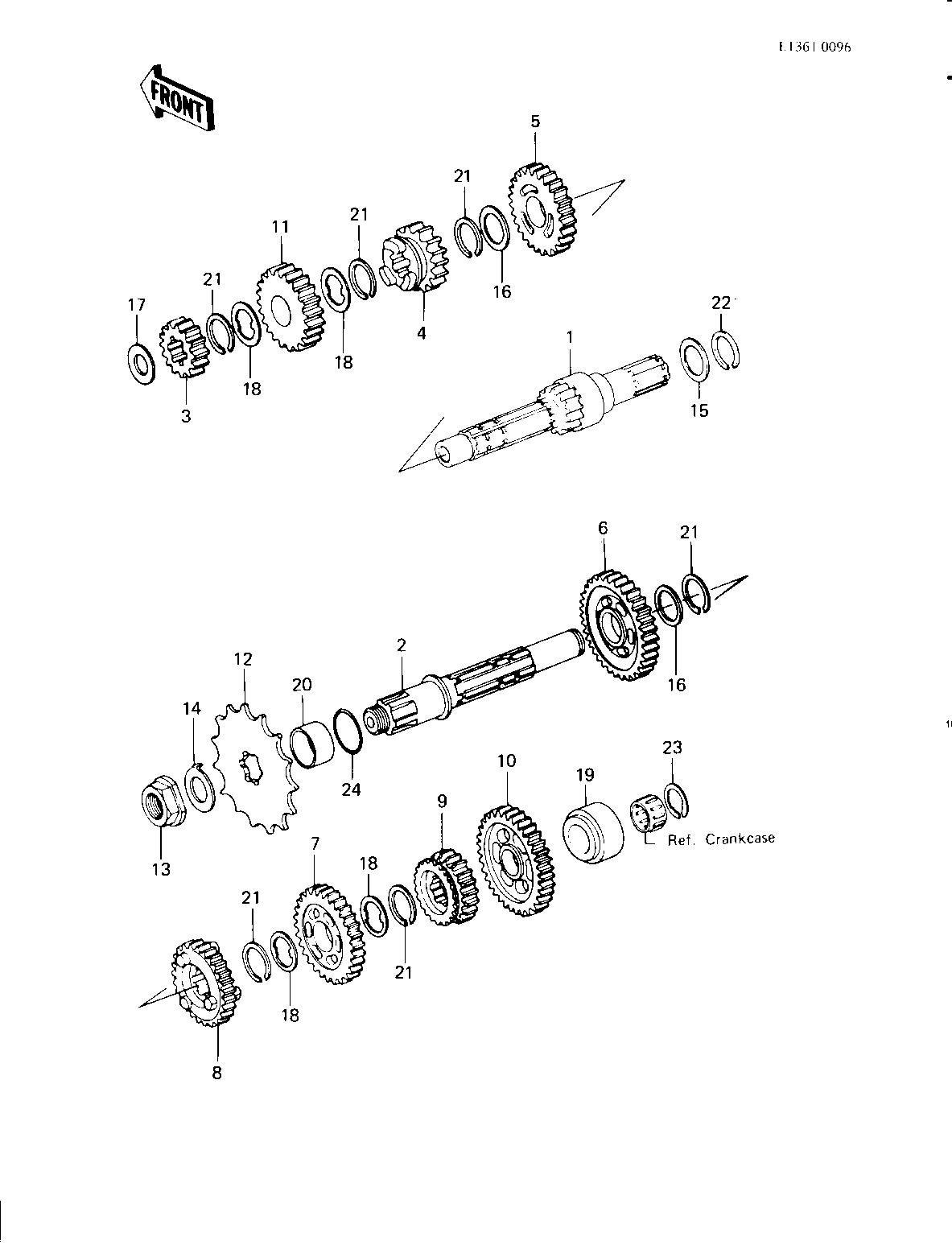

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION IN 1 13127-1068 1
SHAFT,OUTPUT 2 13128-1007 1
GEAR,INPUT,2ND,13T 3 13129-1316 1
GEAR,INPUT,3RD,18T 4 13129-1317 1
GEAR,INPUT,TOP,24T 5 13129-1318 1
GEAR,OUTPUT,2ND,27T 6 13129-1320 1
GEAR,OUTPUT,3RD,26T 7 13129-1321 1
GEAR,OUTPUT,4TH,21T 8 13129-1322 1
GEAR,OUTPUT,TOP,20T 9 13129-1323 1
GEAR-TRANSMISSION SPU 10 13129-1422 1
4TH GEAR,DRIVE SHAFT 11 13134-026 1
SPROCKET-OUTPUT,13T 12 13144-1038 1
SPROCKET-OUTPUT,12T 12 13144-1039 (1
NUT,LOCK,16M/M 13 92015-1013 1
WASHER,LOCK 14 92022-1017 1
WASHER THRUST 15 92022-112 1
WASHER-PLAIN 16 92022-198 2
WASHER,THRUST,15MM 17 92022-279 1
WASHER-LOCK 18 92024-039 4
SPACER,DRIVE SHAFT 19 92026-1061 1
COLLAR,ENGINE SPROCKT 20 92027-287 1
CIRCLIP,25MM 21 92033-025 6
CIRCLIP,18MM 22 92033-029 1
CIRCLIP,16MM 23 92033-032 1
"0" RING 24 92055-022 1
