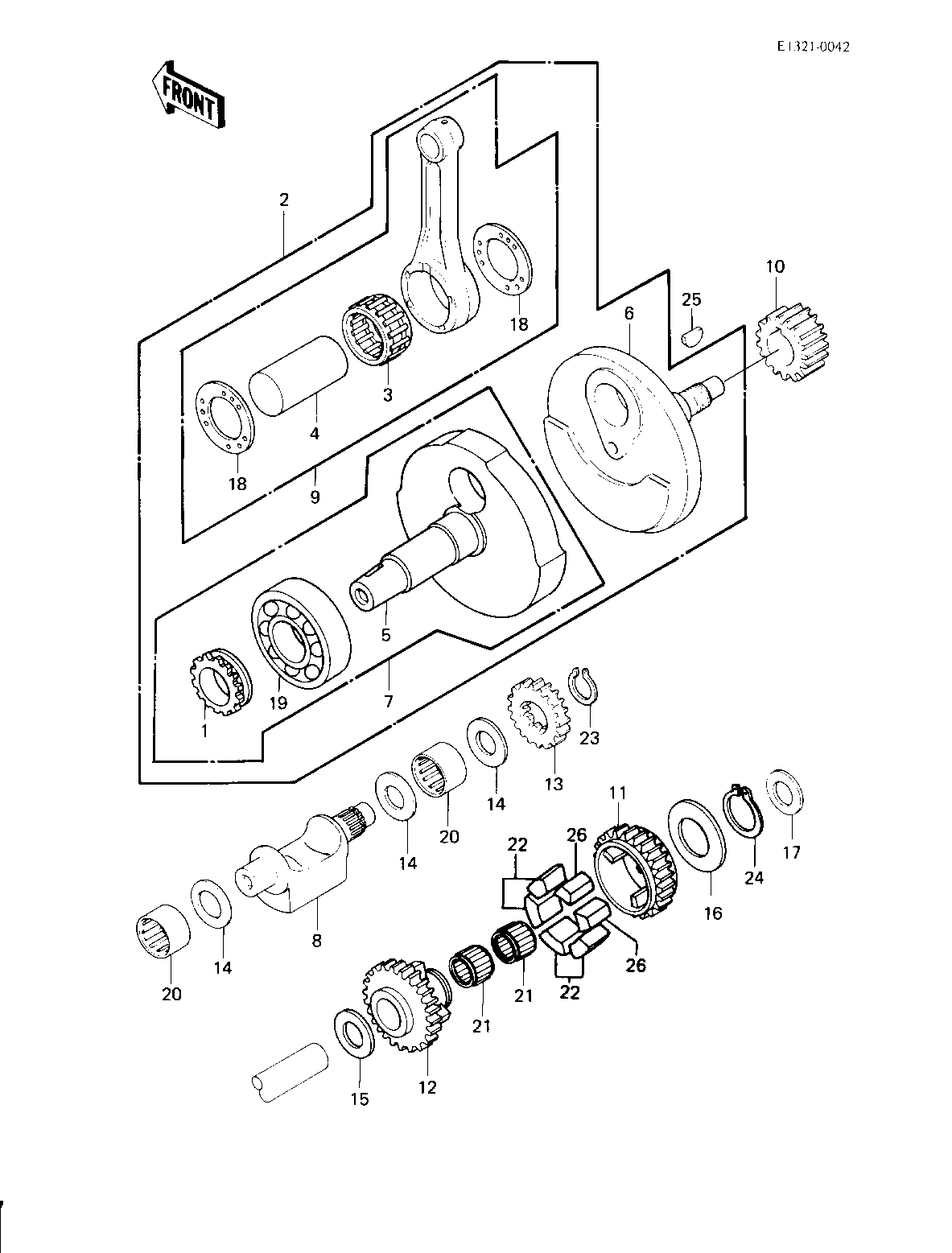

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,16T 1 12046-1038 1
CRANKSHAFT-COMP 2 13031-1082 1
BEARING-BIG END 3 13034-1013 1
PIN-CRANK 4 13035-1009 1
CRANKSHAFT,LH 5 13037-1155 1
CRANKSHAFT,RH 6 13037-1156 1
CRANKSHAFT 7 13037-5007 1
BALANCER 8 13041-1003 1
SET-CONNECTING ROD 9 13044-5029 1
GEAR-PRIMARY SPUR,21T 10 13097-1067 1
GEAR-TRANSMISSION SPU 11 13129-1364 1
GEAR-TRANSMISSION SPU 12 13129-1365 1
GEAR-TRANSMISSION SPU 13 13129-1366 1
WASHER,20X36X1 14 92022-1366 3
WASHER,16X34X1 15 92022-1367 1
WASHER,25.3X44X1 16 92022-1390 1
WASHER,16.3X25X1 17 92022-1391 1
SPACER 18 92026-1070 2
BEARING,BALL,#6306 19 92045-037 1
BEARING-NEEDLE,NK20/1 20 92046-1183 2
BEARING-NEEDLE,K16X20 21 92046-1053 2
DAMPER,IDLER GEAR 22 92075-1595 4
CIRCLIP, 20MM 23 480J2000 1
CIRCLIP,25M/M 24 480J2500 1
WOODRUFF KEY 25 510A5100 1
DAMPER,IDLER GEAR 26 92075-1596 2
