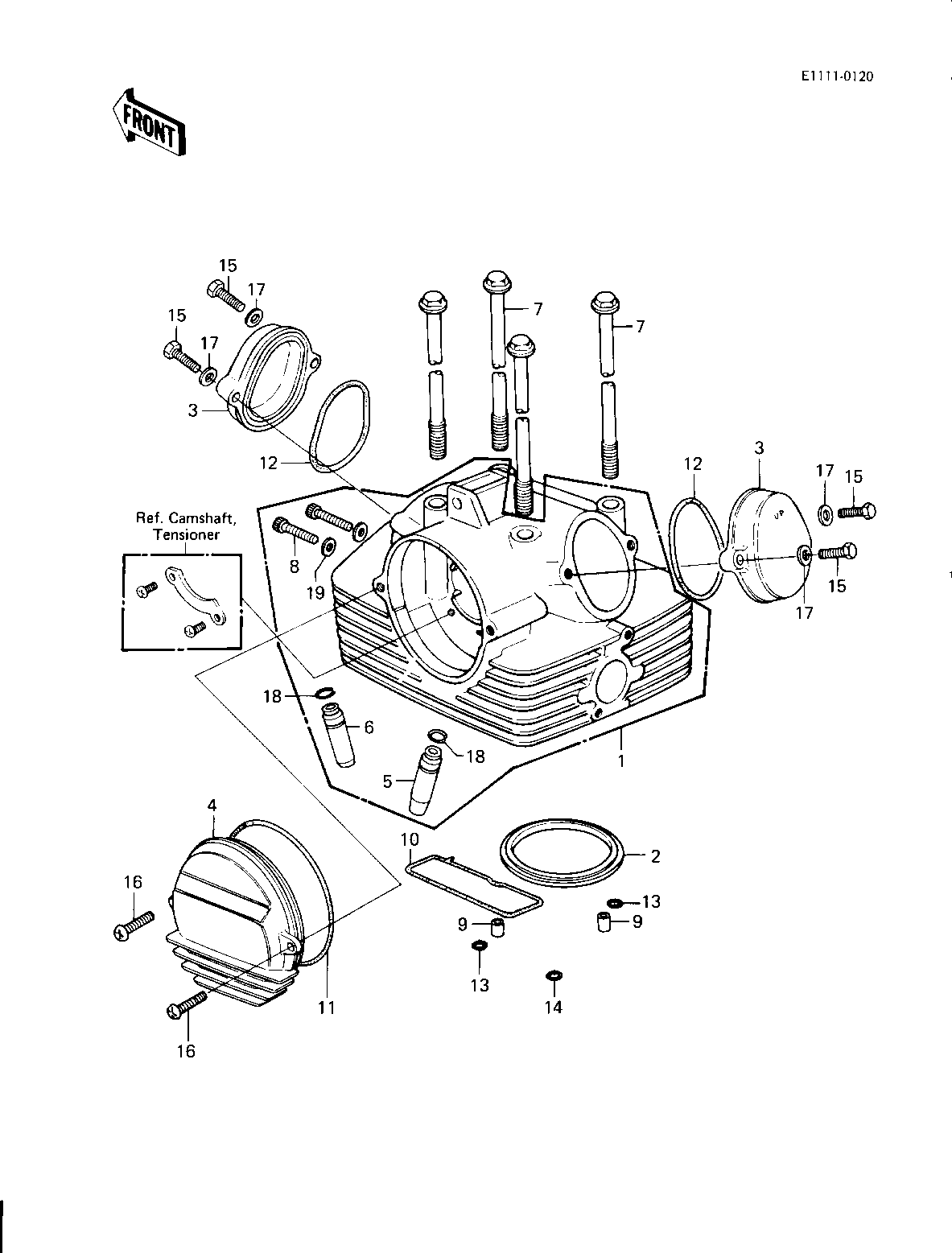

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 1 11002-5029 1
GASKET,CYLINDER HEAD 2 11004-1004 1
CAP,ROCKER,F.BLACK 3 11012-1270 2
COVER,CAMSHAFT,F.BLAC 4 14025-1549 1
GUIDE,INLET VALVE 5 12013-009 1
GUIDE,EXHAUST VALVE 6 49002-1002 1
BOLT,8X233 7 92003-220 4
BOLT,SOCKET,8X30 8 120P0830 2
PIN,DOWEL,10X8.2X14 9 92043-1037 2
"0" RING 10 92055-105 1
"O" RING,99M/M 11 92055-107 1
"0" RING,53.5MM 12 92055-112 2
RING-O,10MM 13 92055-1149 2
O RING,10MM 14 92055-1150 1
BOLT-UPSET 15 112G0625 4
SCREW PAN HEAD 6X16 16 220B0616 2
WASHER PLAIN 6MM 17 411B0600 4
CIRCLIP-VALVE 18 92036-023 2
WASHER PLAIN 8MM 19 410B0800 2
