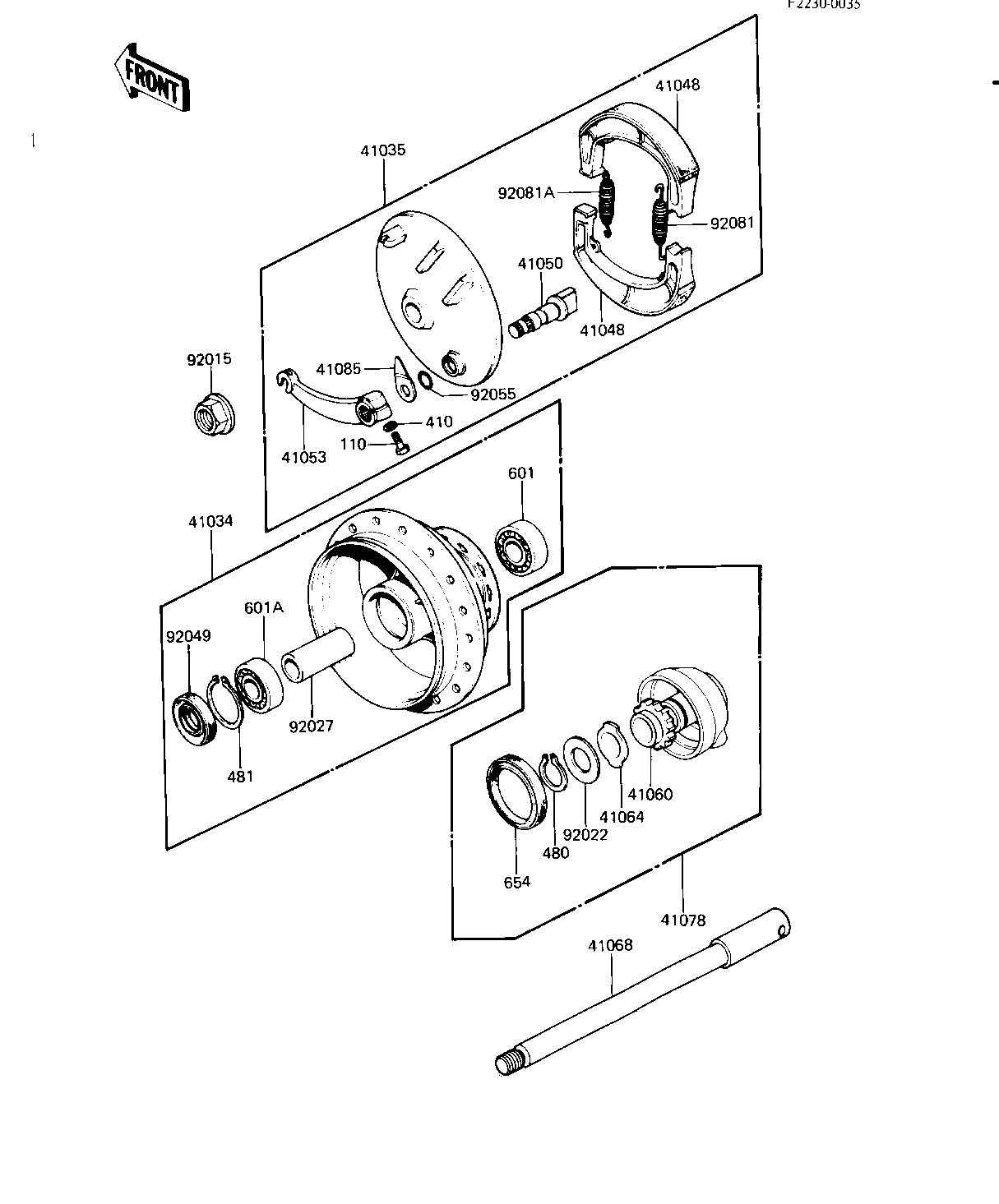

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR BRK 41034 41034-1024 1
PANEL-ASY,FR BRK 41035 41035-1035 1
SHOE,BRAKE 41048 41048-015 2
CAM SHAFT,FRONT BRAKE 41050 41050-012 1
LEVER,FRNT BRAKE CAM 41053 41053-020 1
GEAR,SPEEDOMETER 41060 41059-024 1
RECEIVER,SPEED GEAR 41064 41064-011 1
AXLE,FR 41068 41068-1064 1
CASE-ASSY-METER GEAR 41078 41078-1019 1
INDICATOR,FR BRK PNL 41085 41085-002 1
NUT-12MM 92015 92015-1156 1
WASHER,THRUST 92022 41065-004 1
SPACER,FR HUB BEARING 92027 41039-025 1
OIL SEAL,FR BK DRUM 92049 92050-059 1
"0" RING,11MM 92055 92055-004 1
SPRING,BRAKE SHOE 92081 92081-1766 1
SPRING,BRAKE SHOE 92081A 92081-1550 1
BOLT-UPSET 110 112G0622 1
WASHER PLAIN 6MM 410 410B0600 1
CIRCLIP,19MM 480 480J1900 1
CIRCLIP.37MM 481 481J3700 1
BEARING BALL #6201 601 601B6201 1
BEARING BALL #6301 601A 601B6301 1
OIL SEAL 654 654A405208 1
