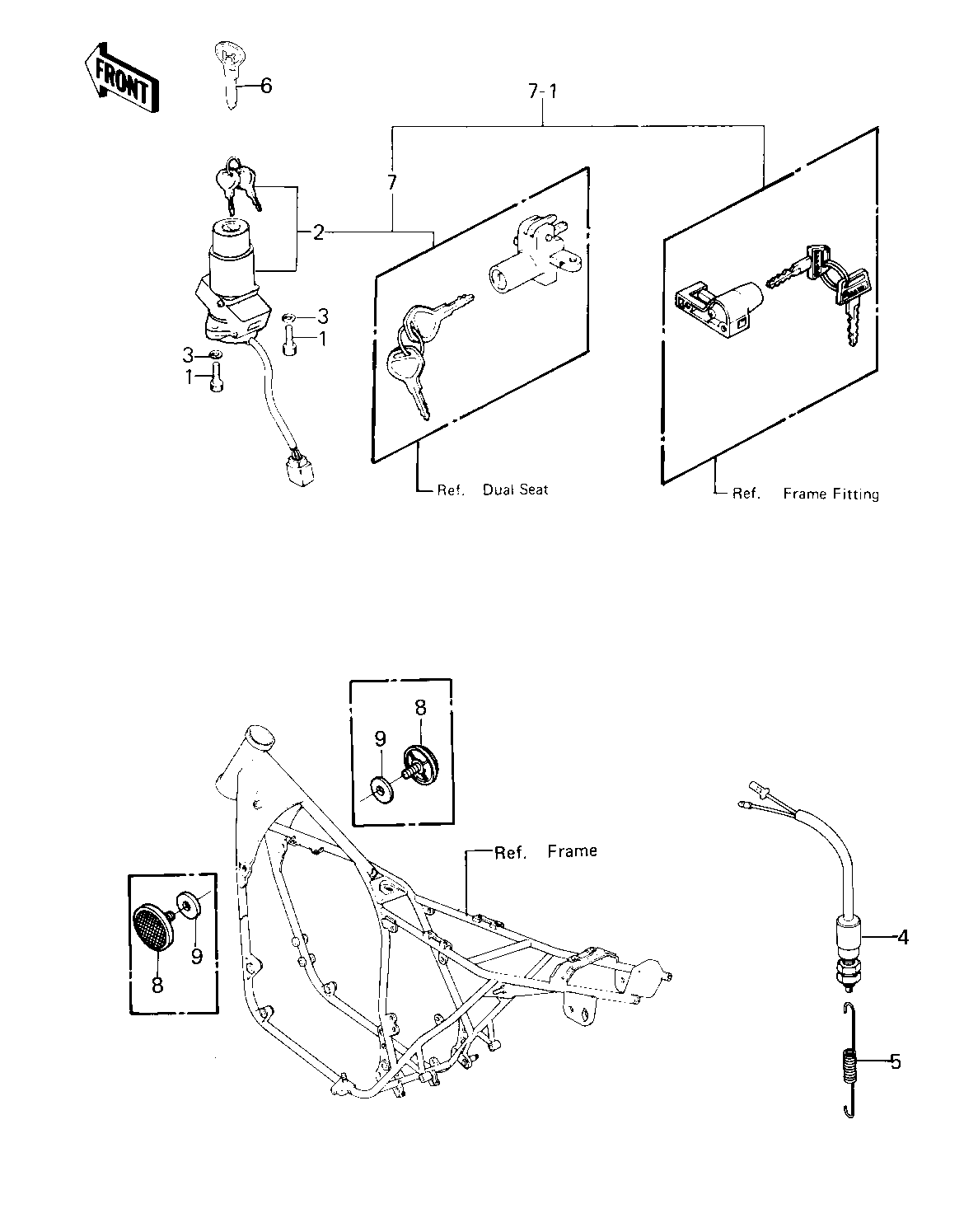

1981 KZ550-A2 - IGNITION SWITCH/LOCKS/REFLECTORS ('80-'8

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT, SOCKET 6X16 1 120Q0616 2
SWITCH ASSY,IGNITION 2 27005-5014 1
WASHER SPRING 6MM 3 461F0600 2
SWITCH-BRAKE LAMP 4 27010-017 1
SPRING,BRAKE LAMP SW 5 92081-1146 1
KEY-LOCK,BLANK 6 27008-1103 1
LOCK ASSY,KZ550A1 7 27004-5016 (1 KZ550-A1
LOCK ASSY 7-1 27004-5099 (1 KZ550-A2
REFLECTOR,REFLEX 8 28012-016 2
DAMPER RUBBER,REFLECT 9 92094-011 2
