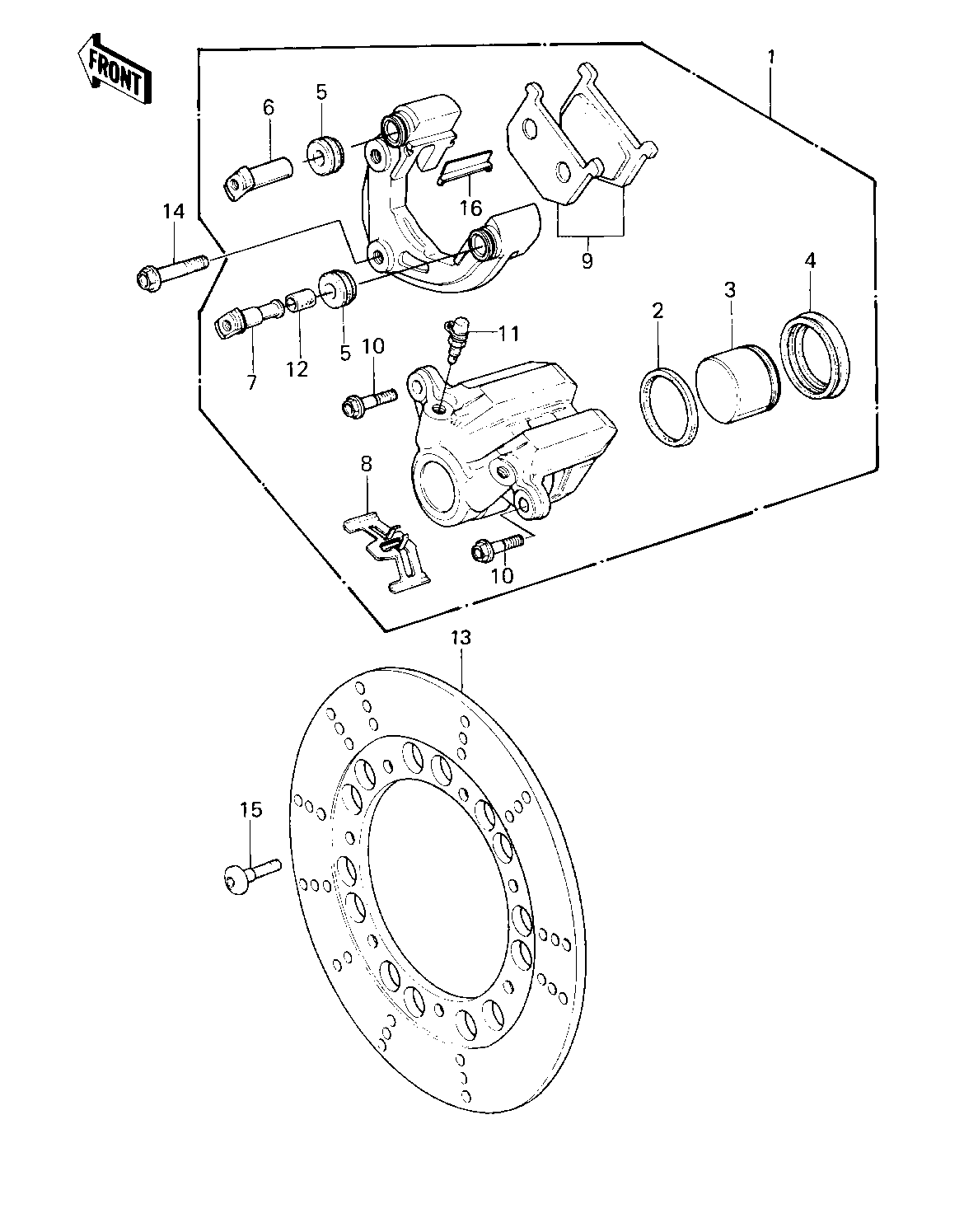

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CALIPER-ASSY,FR 1 43041-1113 1
RING,PISTON SEAL 2 43049-002 1
PISTON-COMP-BRAKE 3 43020-1096 1
DUST SEAL,PISTON 4 49006-1043 1
DUST SEAL 5 49006-1044 2
SHAFT,CALIPER 6 43045-1007 1
SHAFT,CALIPER 7 43045-1008 1
SPRING,PAD 8 92081-1229 1
PAD-ASSY-BRAKE 9 43082-1025 1
BOLT,FLANGED,8X25,BLA 10 92001-1510 2
BLEEDER SET 11 43085-001 1
BUSHING,SHAFT CALIPER 12 92028-1090 1
DISC,FR,SILVER 13 41080-1127 1
BOLT,HEX HEAD,10X44 14 92001-1299 2
BOLT,SOCKET,8X30 15 92001-1951 7
GUIDE,PAD 16 13070-1026 2
