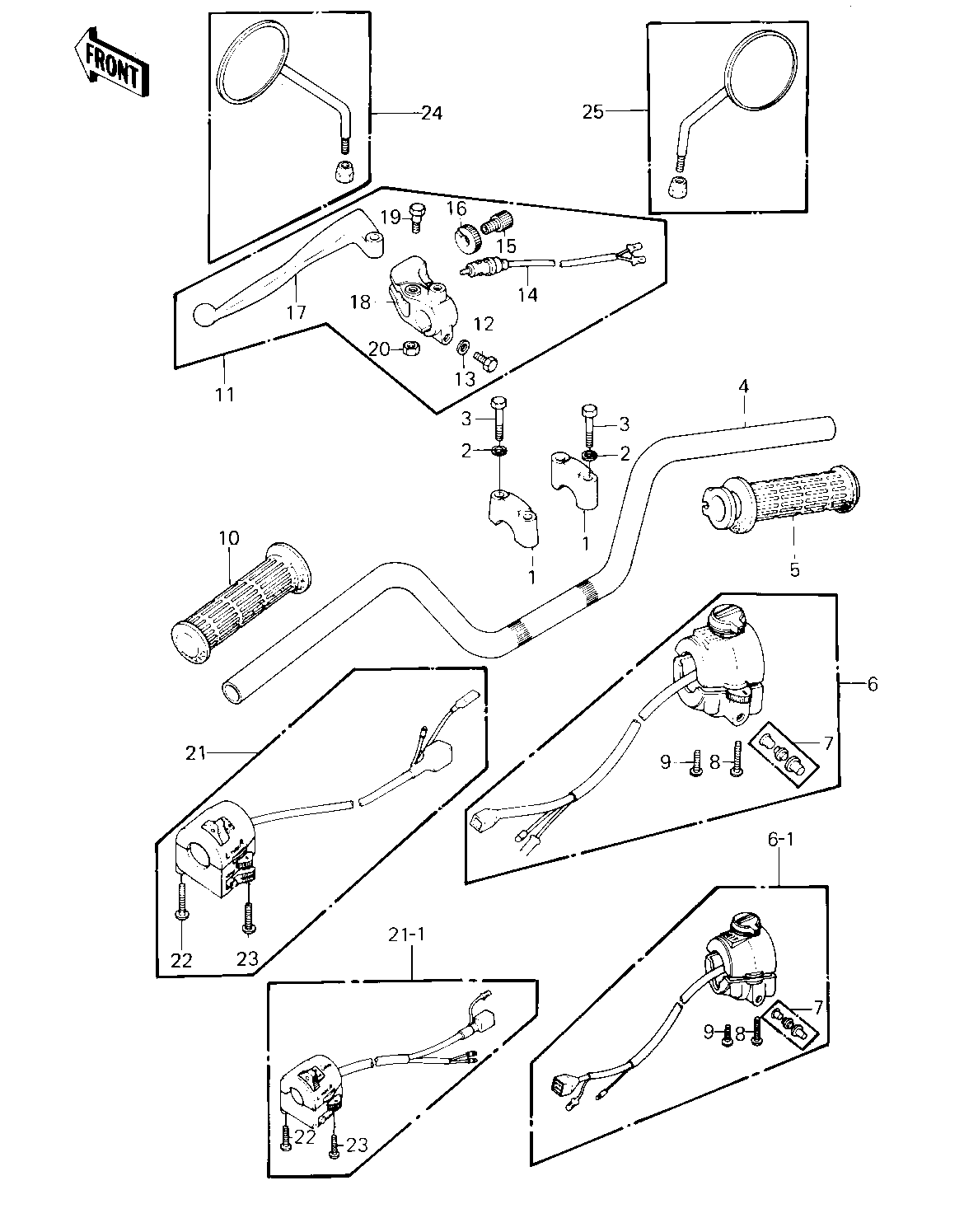

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER HANDLEBAR UPPER 1 46012-008 2
WASHER SPRING 8MM 2 461F0800 4
BOLT 8X38 3 92001-1405 4 KZ550-A1
BOLT 8X38 3 92001-1405 4 KZ550-A2
HANDLEBAR 4 46003-1057 1
GRIP ASSY,THROTTLE 5 46019-038 1
HOUSING ASSY,CONT,R.H 6 46091-1078 1 KZ550-A1
HOUSING ASSY,CONTR,RH 6-1 46091-1105 1 KZ550-A2
SWITCH ASSY,HORN BUTN 7 27010-1009 1
SCREW-PAN-CROS 8 220B0540 1
SCREW PAN HEAD 5X30 9 220B0530 1
RUBBER,L.H GRIP 10 46075-028 1
LEVER ASSY,CLUTCH 11 46076-054 1
BOLT-UPSET 12 112G0625 1
WASHER PLAIN 6MM 13 410B0600 1
SWITCH,CLUTCH 14 27043-002 1
SCREW CABLE ADJUST 15 46055-003 1
NUT,CABLE ADUST NUT 16 46056-007 1
LEVER,CLUTCH 17 46092-023 1
HOLDER,CLUTCH LEVER 18 46094-019 1
BOLT,HEX HEAD 19 92007-047 1
NUT 20 92019-008 1
HOUSING ASSY,CONT,L.H 21 46091-1079 1 KZ550-A1
HOUSING ASSY,CONTR,LH 21-1 46091-1141 1 KZ550-A2
SCREW-PAN-CROS 22 220B0535 1
SCREW PAN HEAD 5X30 23 220B0530 1
REAR VIEW MIRROR,L.H. 24 56001-1015 1
REAR VIEW MIRROR,R.H. 25 56001-1016 1
