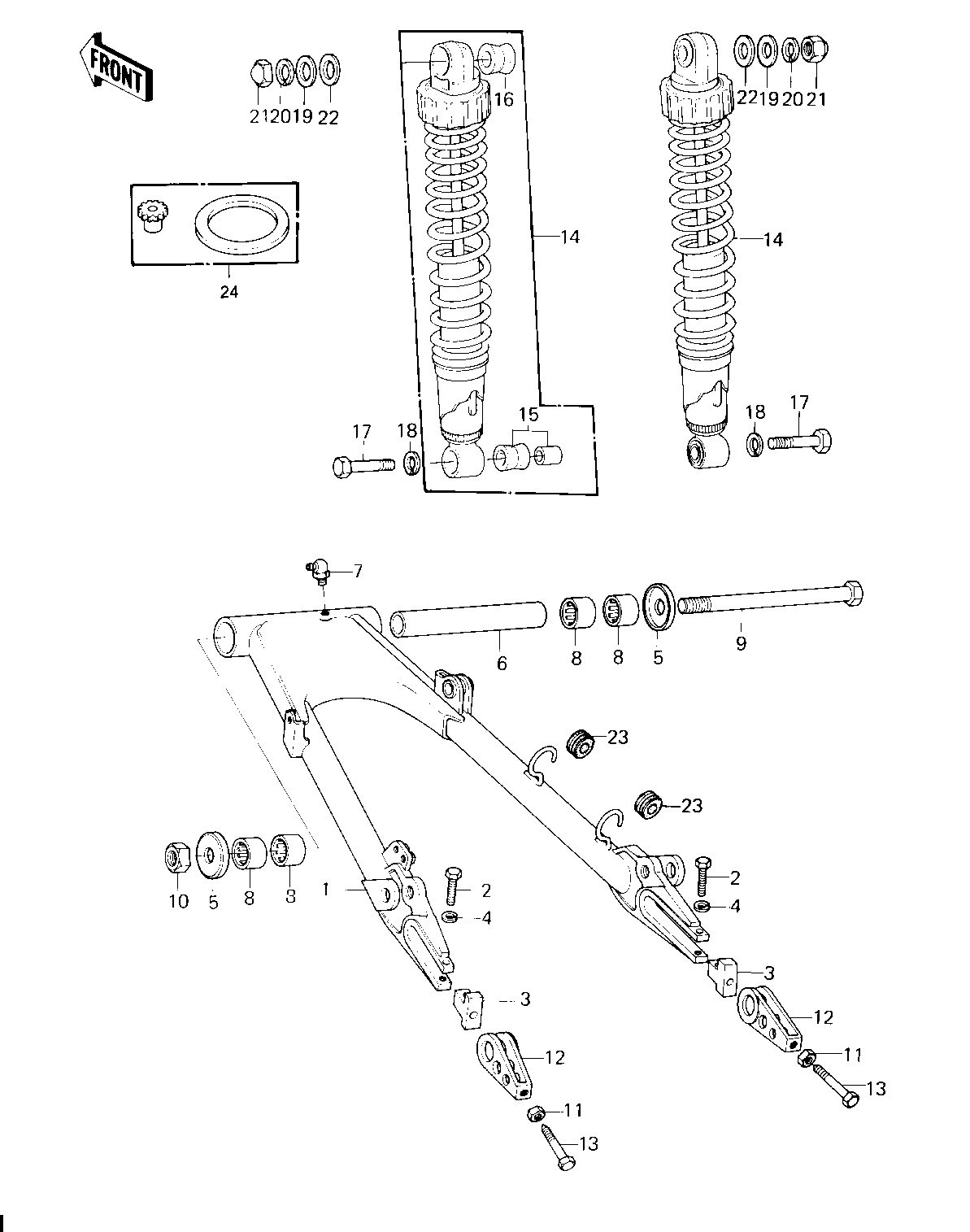

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWING ARM 1 33001-1058 1
BOLT,FLANGED,8X35 2 92001-1577 2
STOPPER,CHAIN ADJUST 3 33044-002 2
WASHER SPRING 8MM 4 461F0800 2
CAP,SWING ARM 5 33035-009 2
SLEEVE,SWING ARM 6 42036-1012 1
GREASE NIPPLE 7 92005-002 1
BEARING-NEEDLE,HK2216 8 92046-1115 4
SHAFT,SWING ARM 9 33032-050 1
NUT-SELF LOCKING 10 92019-012 1
NUT 8MM 11 312B0800 2
ADJUSTER,CHAIN 12 33040-056 2
BOLT,8X50 13 92001-1399 2
SHOCK ABSBR RR 14 45014-1112 2
BUSHING,SHOCK ABSORBE 15 45017-019 2
BUSHING,SHOCK ABSORBR 16 92075-1262 2
BOLT HEX HEAD 10X35 17 113N1035 2
WASHER SPRING 10MM 18 461F1000 2
WASHER PLAIN 12MM 19 410B1200 2
WASHER SPRING 12MM 20 461F1200 2
NUT 12MM 21 92020-014 2
WASHER PLAIN 12MM 22 411B1200 2
DAMPER RUBBER 23 43064-007 2
SHOCK ABSORBER KIT 24 99996-1025 2
