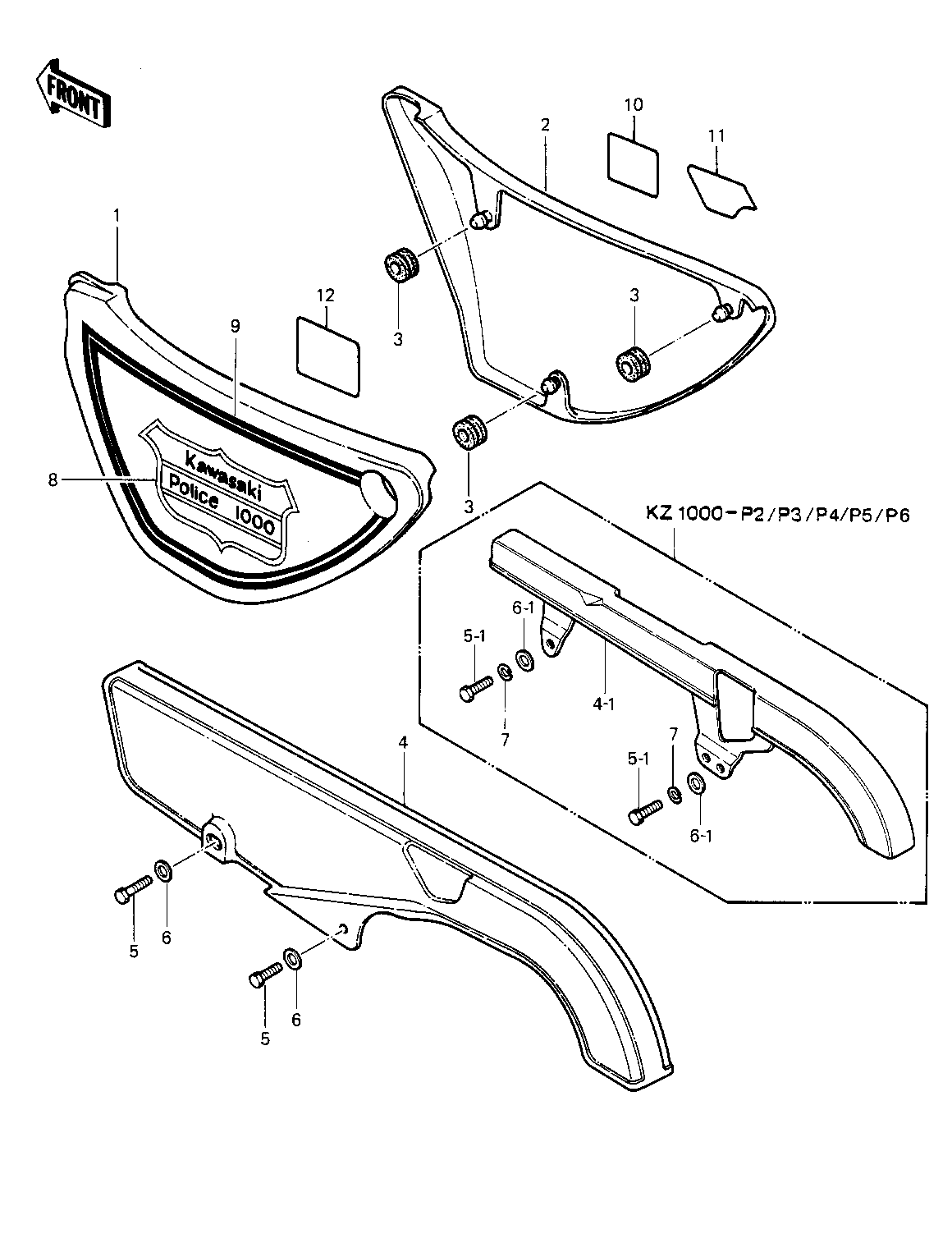

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,WHITE-LH 1 36001-1110-8C 1
COVER-SIDE,WHITE-RH 2 36001-1111-8C 1
GROMMET 3 92071-056 6
CASE-CHAIN 4 36014-1061 1 KZ1000-P1
CASE-CHAIN 4-1 36014-1034 1 KZ1000-P2/P3/P4/P5
BOLT,HEAX HEAD,6X14 5 92001-115 2 KZ1000-P1
BOLT-UPSET,6X16 5-1 112G0616 3 KZ1000-P2/P3/P4/P5
WASHER,8.5X20X1.6 6 92022-1561 2 KZ1000-P1
WASHER PLAIN 6MM 6-1 411B0600 3 KZ1000-P2/P3/P4/P5
WASHER SPRING 6MM 7 461F0600 3 KZ1000-P2/P3/P4/P5
EMBLEM 8 56014-4020 2
PATTERN,SIDE COVER 9 56027-4075 1
PATTERN,SIDE COVER 9 56027-4076 1
LABEL,BATTERY VENT 10 56031-1159 1 KZ1000-P3/P4/P5
LABEL,OIL&OIL FILTER 11 56031-1162 1 KZ1000-P3/P4/P5
LABEL-MANUAL,DAILY SA 12 56031-1188 1 KZ1000-P3/P4/P5
