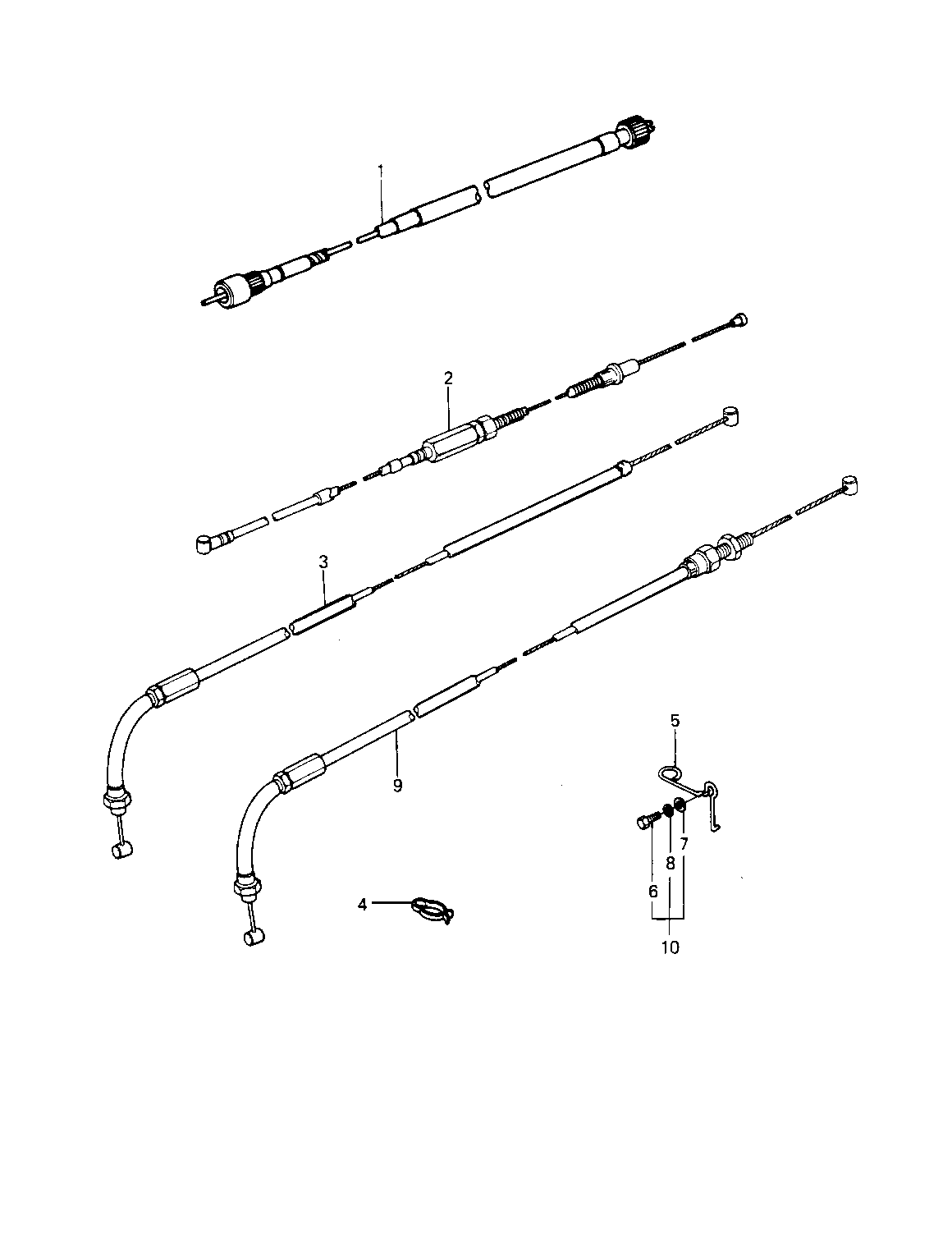

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SPEEDOMETER 1 54001-1029 1
CABLE-CLUTCH 2 54011-4005 1
CABLE-THROTTLE 3 54012-1124 1
CLAMP,CABLE 4 92037-093 1
CLAMP,CLUTCH CABLE 5 92037-1253 1
BOLT-UPSET 6X14 6 112B0614 1 KZ1000-P1/P2/P3
WASHER PLAIN 6MM 7 411B0600 1 KZ1000-P1/P2/P3
WASHER SPRING 6MM 8 461F0600 1 KZ1000-P1/P2/P3
CABLE-THROTTLE 9 54012-4004 1 KZ1000-P2/P3/P4/P5
BOLT 6X14 10 187B0614 1 KZ1000-P4/P5
