Part Item Information

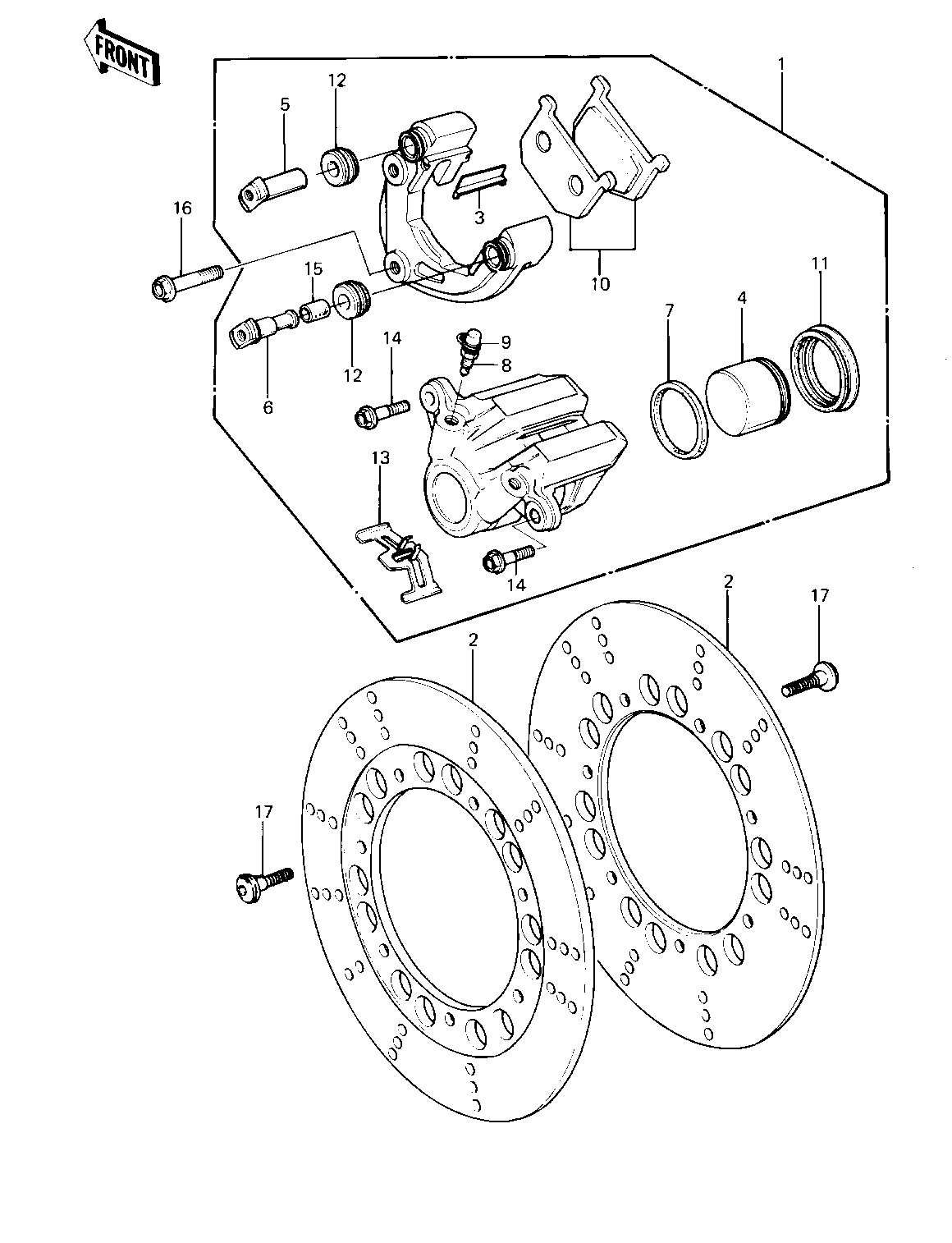

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CALIPER-ASSY,FR,LH 1 43041-1045 1
CALIPER-ASSY,FR,RH 1 43041-1046 1
DISK,FR 2 41080-1047 2
GUIDE,PAD 3 13070-1026 4
PISTON-COMP-BRAKE 4 43020-1096 2
SHAFT,CALIPER 5 43045-1007 2
SHAFT,CALIPER 6 43045-1008 2
RING,PISTON SEAL 7 43049-002 2
BREEDER 8 43056-003 2
CAP,BREEDER 9 43057-003 2
PAD-ASSY,FR 10 43082-1021 2
DUST SEAL,PISTON 11 49006-1043 2
DUST SEAL 12 49006-1044 4
SPRING,PAD 13 92081-1229 2
BOLT,FLANGED,8X25,BLA 14 92001-1510 4 KZ1000-P1/P2
BOLT,FLANGED,8X25,BLA 14 92001-1510 4 KZ1000-P3/P4/P5
BUSHING,SHAFT CALIPER 15 92028-1090 2
BOLT,FLANGED,10X41 16 92001-1355 4
BOLT,SOCKET,8X30 17 92001-1951 14 KZ1000-P1/P2
BOLT,SOCKET,8X30 17 92001-1951 14 KZ1000-P3/P4/P5
