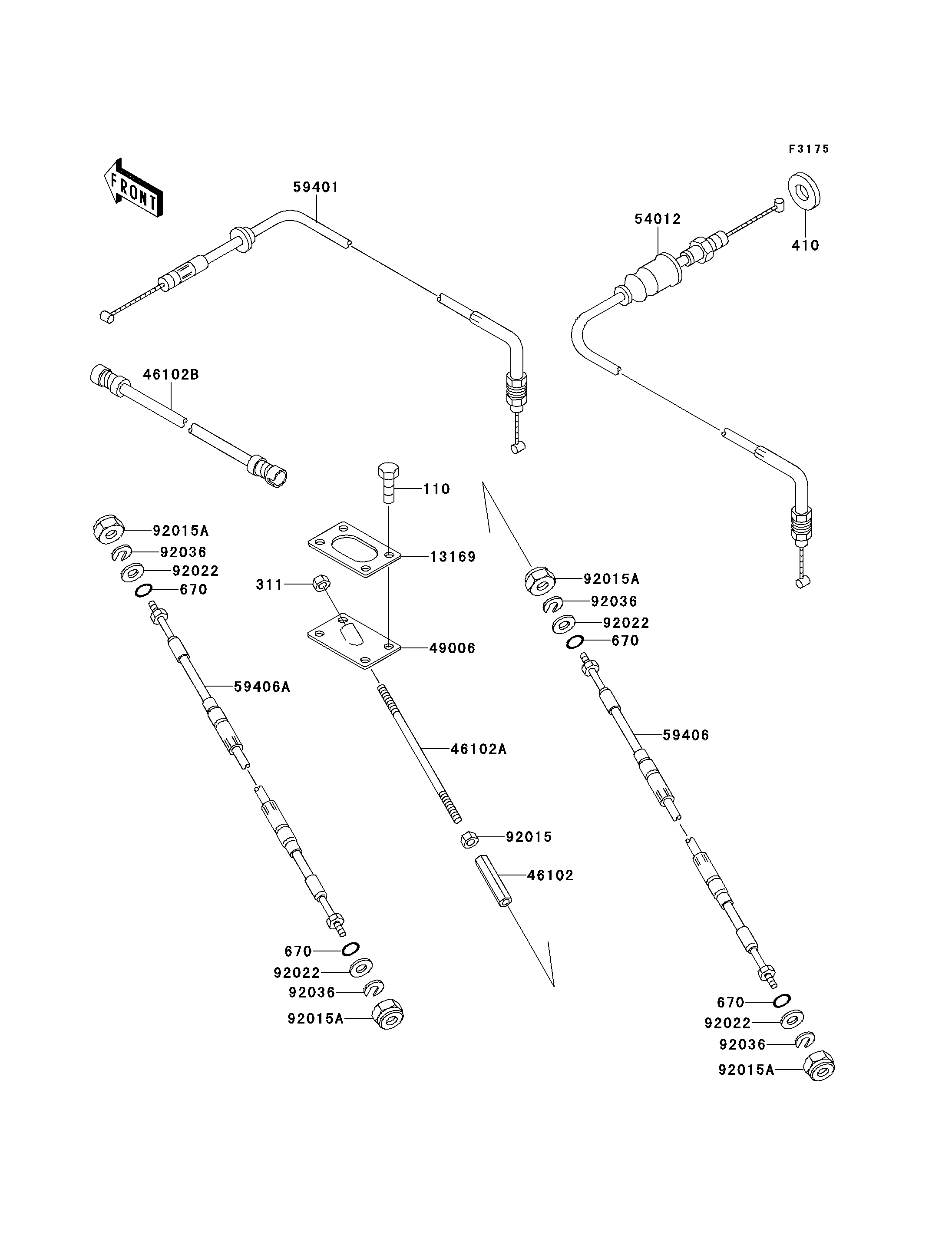

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,5X16 110 110R0516 4
NUT-HEX,5MM 311 311R0500 1
W-PLAIN-S,10MM 410 410S1000 1
O RING,11MM 670 670B2011 4
PLATE 13169 13169-3713 1
ROD,L=40 46102 46102-3706 1
ROD,5X125 46102A 46102-3707 1
ROD 46102B 46102-3714 1
BOOT 49006 49006-3706 1
CABLE-THROTTLE 54012 54012-3728 1
CABLE-CHOKE 59401 59401-3709 1
CABLE-STRG,UP&DOWN 59406 59406-3711 1
CABLE-STRG,LEFT&RIGHT 59406A 59406-3721 1
NUT,5MM 92015 92015-3754 1
NUT,20MM 92015A 92015-526 4
WASHER 92022 92022-535 4
RING-SNAP 92036 92036-501 4
