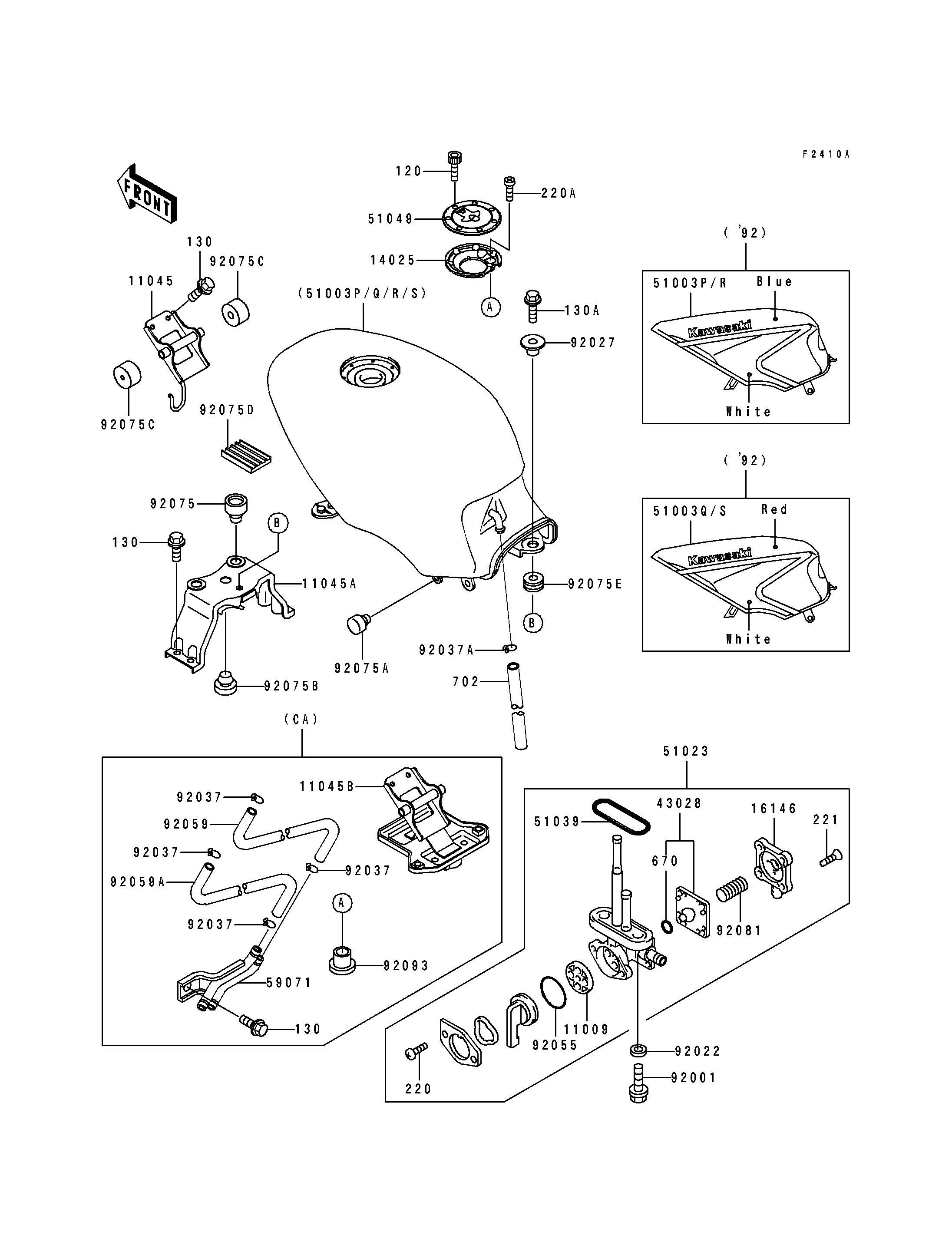

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAP VALVE 11009 11009-1188 1
BRACKET,FUEL TANK,FR 11045 11045-1362 1 CNUS
BRACKET,FUEL TANK,RR 11045A 11045-1363 1
BRACKET,FUEL TANK,FR 11045B 11045-1389 1 CA
COVER,TANK CAP 14025 14025-1913 1
COVER-ASSY,TAP DIAPHRAGM 16146 16146-1010 1
DIAPHRAGM 43028 43028-1033 1
TANK-COMP-FUEL,BLUE/WHITE 51003P 51003-5409-S3 1 CNUS
TANK-COMP-FUEL,RED/WHITE 51003Q 51003-5410-GP 1 CNUS
TANK-COMP-FUEL,BLUE/WHITE 51003R 51003-5411-S3 1 CA
TANK-COMP-FUEL,RED/WHITE 51003S 51003-5412-GP 1 CA
TAP-ASSY,FUEL 51023 51023-1142 1
RING,TAP FLANGED 51039 51039-003 1
CAP-TANK,FUEL 51049 51049-1091 1
JOINT,EVAPO 59071 59071-1122 1 CA
BOLT,6X20 92001 92001-1091 2
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=19.3 92027 92027-1780 1
CLAMP,TUBE 92037 92037-010 4 CA
CLAMP 92037A 92037-1712 1
RING-O,TAP LEVER 92055 92055-1085 1
TUBE,EVAPO 92059 92059-1767 1 CA
TUBE,EVAPO 92059A 92059-1768 1 CA
DAMPER 92075 92075-015 2
DAMPER 92075A 92075-021 2
DAMPER 92075B 92075-1045 1
DAMPER,FUEL TANK,FR 92075C 92075-1115 2
DAMPER 92075D 92075-1489 2
DAMPER 92075E 92075-1736 1
SPRING,TAP DIAPHRAGM 92081 92081-1240 1
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X12 130 130B0612 7 CA
BOLT-FLANGED,6X12 130 130B0612 6 CNUS
BOLT-FLANGED,8X30 130A 130G0830 1
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 4
O RING,4MM 670 670B1504 1
TUBE-RUBBER,7X10X380 702 702A07380 1
