Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

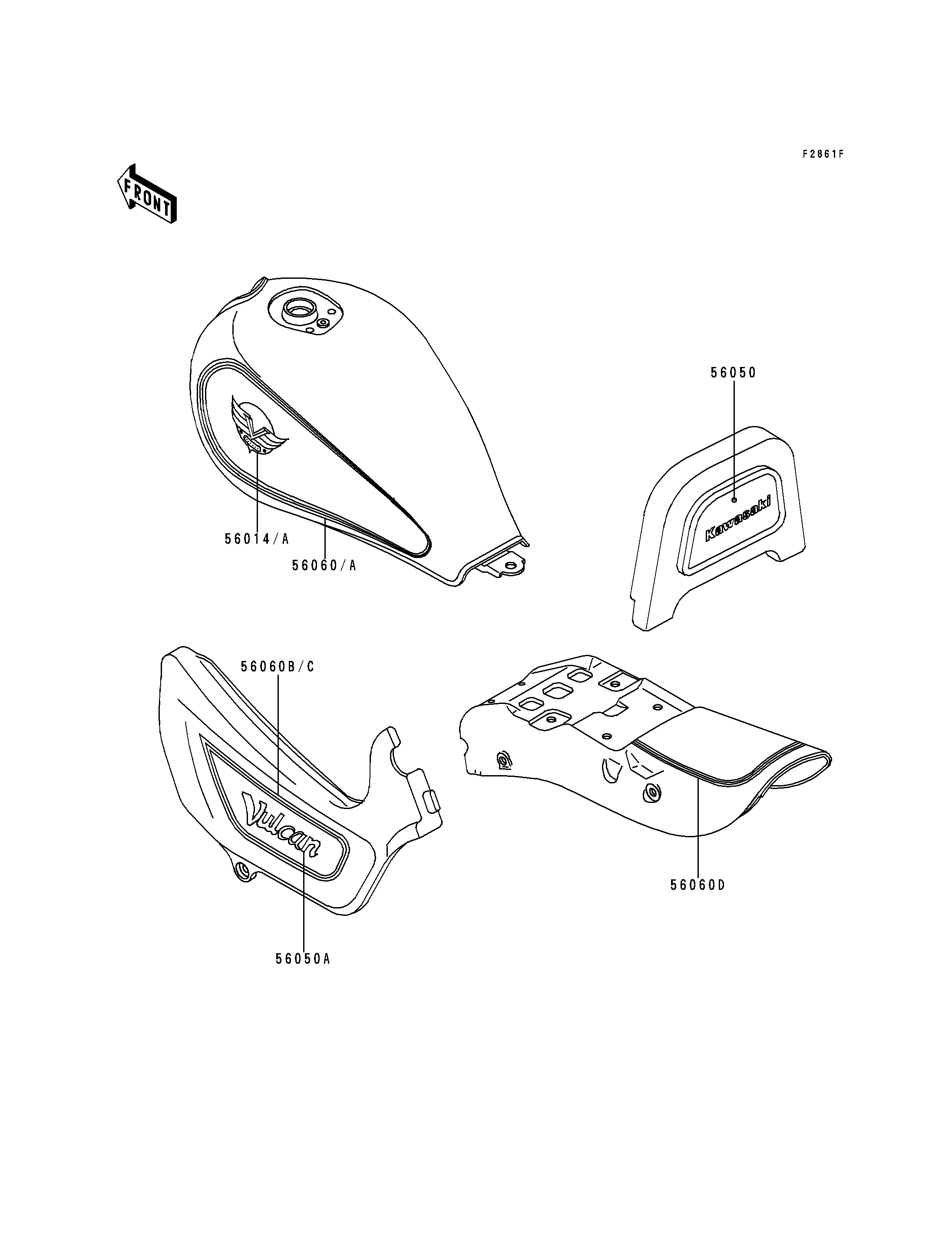

56014
56014A
56050
56050A
56060
56060A
56060B
56060C
56060D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,LH 56014 56014-1250 1
EMBLEM,FUEL TANK,RH 56014A 56014-1258 1
MARK,BACK REST 56050 56050-1493 1
MARK,SIDE COVER,VULCAN 56050A 56050-1496 2
PATTERN,FUEL TANK,LH 56060 56060-1737 1
PATTERN,FUEL TANK,RH 56060A 56060-1738 1
PATTERN,SIDE COVER,LH 56060B 56060-1739 1
PATTERN,SIDE COVER,RH 56060C 56060-1740 1
PATTERN,RR FENDER 56060D 56060-1741 1
