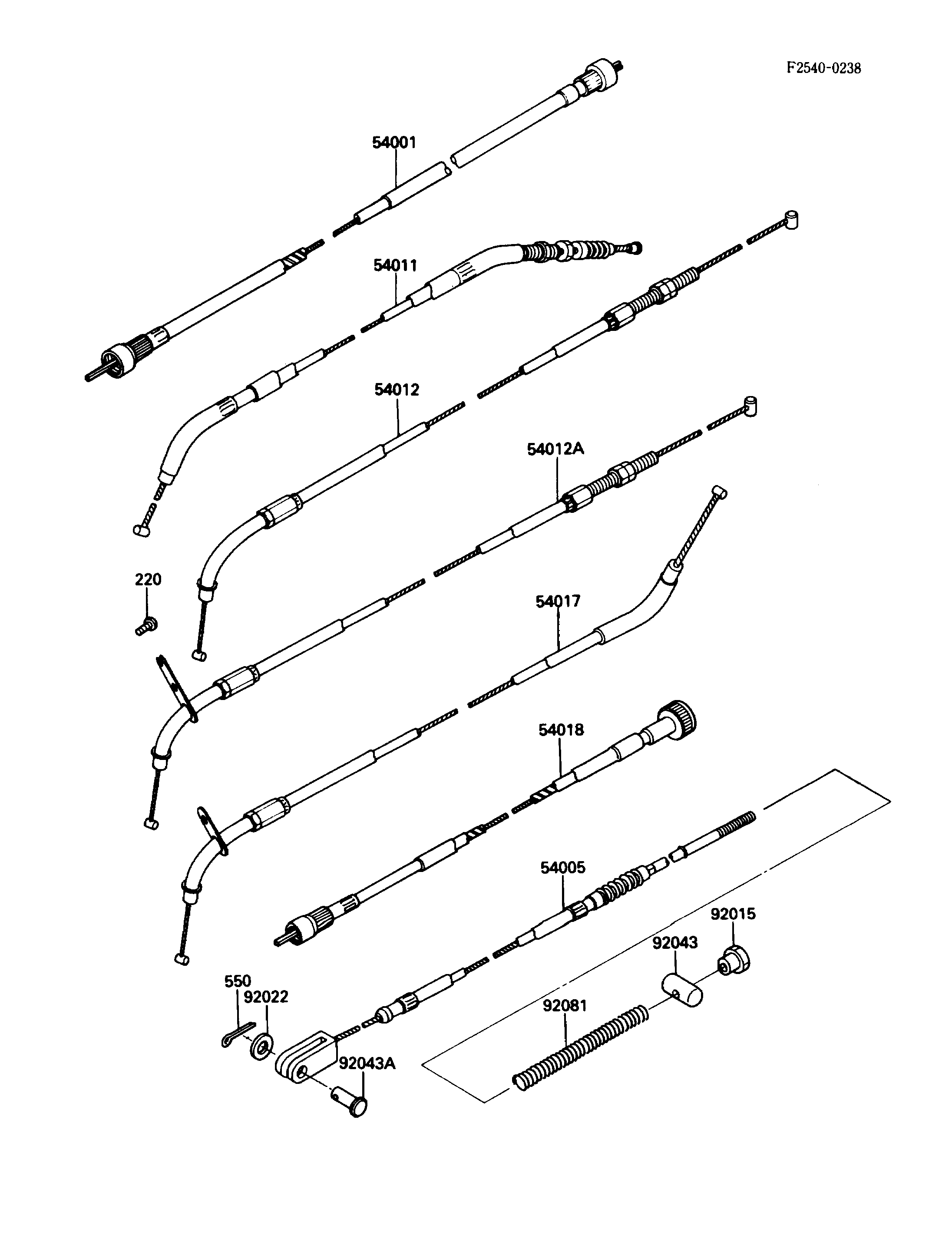

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-SPEEDOMETER 54001 54001-1113 1
CABLE-BRAKE 54005 54005-1125 1
CABLE-CLUTCH 54011 54011-1231 1
CABLE-THROTTLE,OPENING 54012 54012-1264 1
CABLE-THROTTLE,CLOSING 54012A 54012-1265 1
CABLE-STARTER 54017 54017-1063 1
CABLE-TACHOMETER 54018 54018-1054 1
NUT,BRAKE ROD 92015 92015-042 1
WASHER,8.5X16X1.2 92022 92022-1582 1
PIN,BRAKE ROD 92043 92043-065 1
PIN,8X16 92043A 92043-1013 1
SPRING,BRAKE ROD 92081 43012-001 1
SCREW-PAN-CROS 220 220C0514 1
PIN-COTTER,2.0X15 550 550D2015 1
