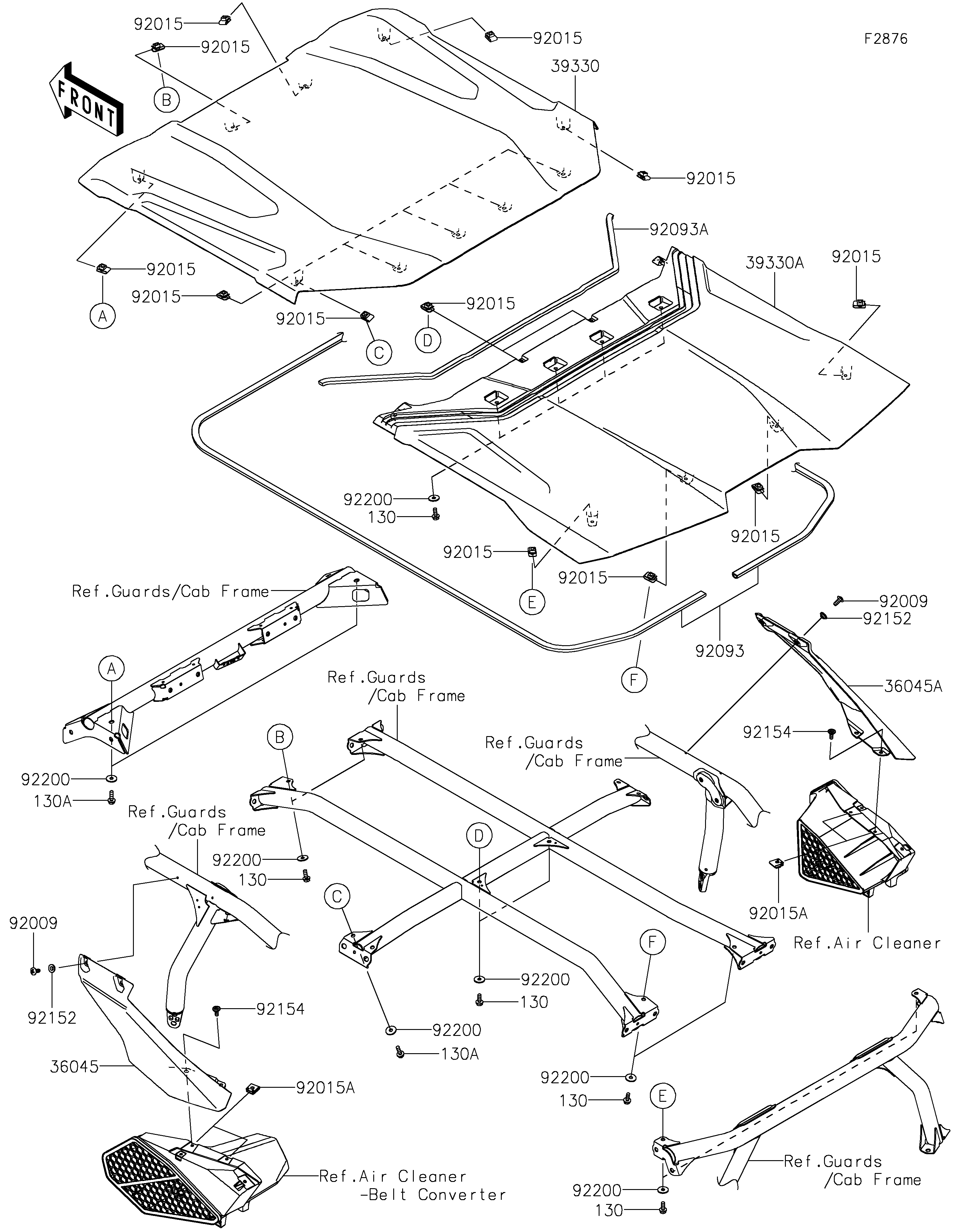

Parts Diagrams |
36045
36045A
39330
39330A
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015A
92015A
92093
92093A
92152
92152
92154
92154
92200
92200
92200
92200
92200
92200
92200
130
130
130
130
130
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-DECORATION,SIDE,LH,GREEN | 36045 | 36045-0001-777 | 1 | ||
| PANEL-DECORATION,SIDE,RH,GREEN | 36045A | 36045-0002-777 | 1 | ||
| ROOF,FR,BLACK | 39330 | 39330-0001-6Z | 1 | ||
| ROOF,RR,BLACK | 39330A | 39330-0010-6Z | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 4 | ||
| NUT,6MM | 92015 | 92015-1602 | 16 | ||
| NUT,CLAMP,6MM | 92015A | 92015-1678 | 4 | ||
| SEAL | 92093 | 92093-0768 | 1 | ||
| SEAL,10X10X1380 | 92093A | 92093-0867 | 1 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 4 | ||
| BOLT | 92154 | 92154-2474 | 4 | ||
| WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 16 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 12 | ||
| BOLT-FLANGED,6X20 | 130A | 130BA0620 | 4 |
| PANEL-DECORATION,SIDE,LH,GREEN | |
| REF # | 36045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-DECORATION,SIDE,RH,GREEN | |
| REF # | 36045A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROOF,FR,BLACK | |
| REF # | 39330 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROOF,RR,BLACK | |
| REF # | 39330A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,10X10X1380 | |
| REF # | 92093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
