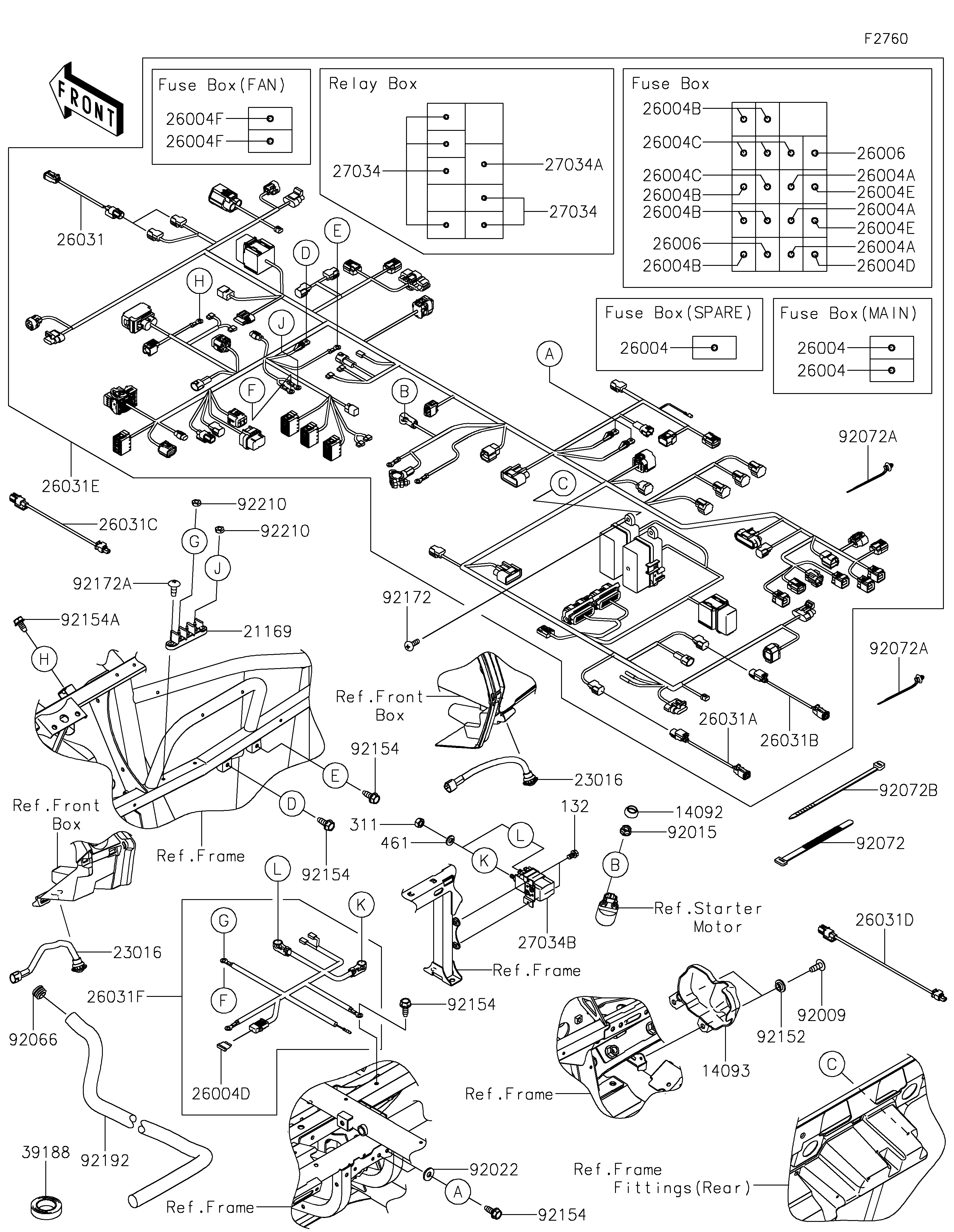

2026 TERYX®5 H2 DELUXE eS - Chassis Electrical Equipment
14092
14093
21169
23016
23016
26004
26004
26004
26004A
26004A
26004A
26004B
26004B
26004B
26004B
26004C
26004C
26004D
26004D
26004E
26004E
26004F
26004F
26006
26006
26031
26031A
26031B
26031C
26031D
26031E
26031F
27034
27034
27034A
27034B
39188
92009
92015
92022
92066
92072
92072A
92072A
92072B
92152
92154
92154
92154
92154
92154A
92172
92172A
92192
92210
92210
132
311
461
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,MAGNETIC SW. | 14092 | 14092-0851 | 1 | ||
| COVER,FR GEAR,SIDE | 14093 | 14093-0839 | 1 | ||
| TERMINAL | 21169 | 21169-0571 | 1 | ||
| LAMP-ASSY,FLOOR | 23016 | 23016-0671 | 2 | ||
| FUSE-ASSY,SLOW-BLOW,70A | 26004 | 26004-0030 | 3 | ||
| FUSE-ASSY,20A | 26004A | 26004-0033 | 3 | ||
| FUSE-ASSY,10A | 26004B | 26004-0034 | 6 | ||
| FUSE-ASSY,15A | 26004C | 26004-0037 | 4 | ||
| FUSE-ASSY,30A | 26004D | 26004-0043 | 2 | ||
| FUSE-ASSY,5A | 26004E | 26004-0044 | 2 | ||
| FUSE-ASSY,40A | 26004F | 26004-0048 | 2 | ||
| FUSE,MINI BLADE,25A,NATURAL | 26006 | 26006-0020 | 2 | ||
| HARNESS,SUB,FR SUSPENSION | 26031 | 26031-4287 | 2 | ||
| HARNESS,SUB,RR SUSPENSION,LH | 26031A | 26031-4288 | 1 | ||
| HARNESS,SUB,RR SUSPENSION,RH | 26031B | 26031-4289 | 1 | ||
| HARNESS,SUB HARNESS,FR | 26031C | 26031-4480 | 2 | ||
| HARNESS,SUB HARNESS,RR | 26031D | 26031-4490 | 2 | ||
| HARNESS,MAIN | 26031E | 26031-7169 | 1 | ||
| HARNESS,SUB,RELAY | 26031F | 26031-7181 | 1 | ||
| RELAY | 27034 | 27034-0013 | 6 | ||
| RELAY | 27034A | 27034-0024 | 1 | ||
| RELAY | 27034B | 27034-0028 | 1 | ||
| TAPE,HARNESS | 39188 | 39188-0006 | AR | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
| WASHER | 92022 | 92022-2247 | 2 | ||
| PLUG | 92066 | 92066-0908 | 1 | ||
| BAND,L=123 | 92072 | 92072-030 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072A | 92072-1414 | AR | ||
| BAND,L=292.1 | 92072B | 92072-3509 | 24 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 2 | ||
| BOLT,FLANGED,6X16 | 92154 | 92154-0551 | 5 | ||
| BOLT,FLANGED,6X12 | 92154A | 92154-7905 | 1 | ||
| SCREW,TAPPING,6X20 | 92172 | 92172-0488 | 4 | ||
| SCREW,TAPPING,6X16 | 92172A | 92172-0739 | 2 | ||
| TUBE,CONVOLUTED,19.5X23.8X2185 | 92192 | 92192-2832 | 1 | ||
| NUT | 92210 | 92210-1680 | 2 | ||
| BOLT-FLANGED-SMALL,5X8 | 132 | 132BA0508 | 2 | ||
| NUT-HEX,6MM | 311 | 311BA0600 | 2 | ||
| WASHER-SPRING,6MM | 461 | 461DA0600 | 2 |
