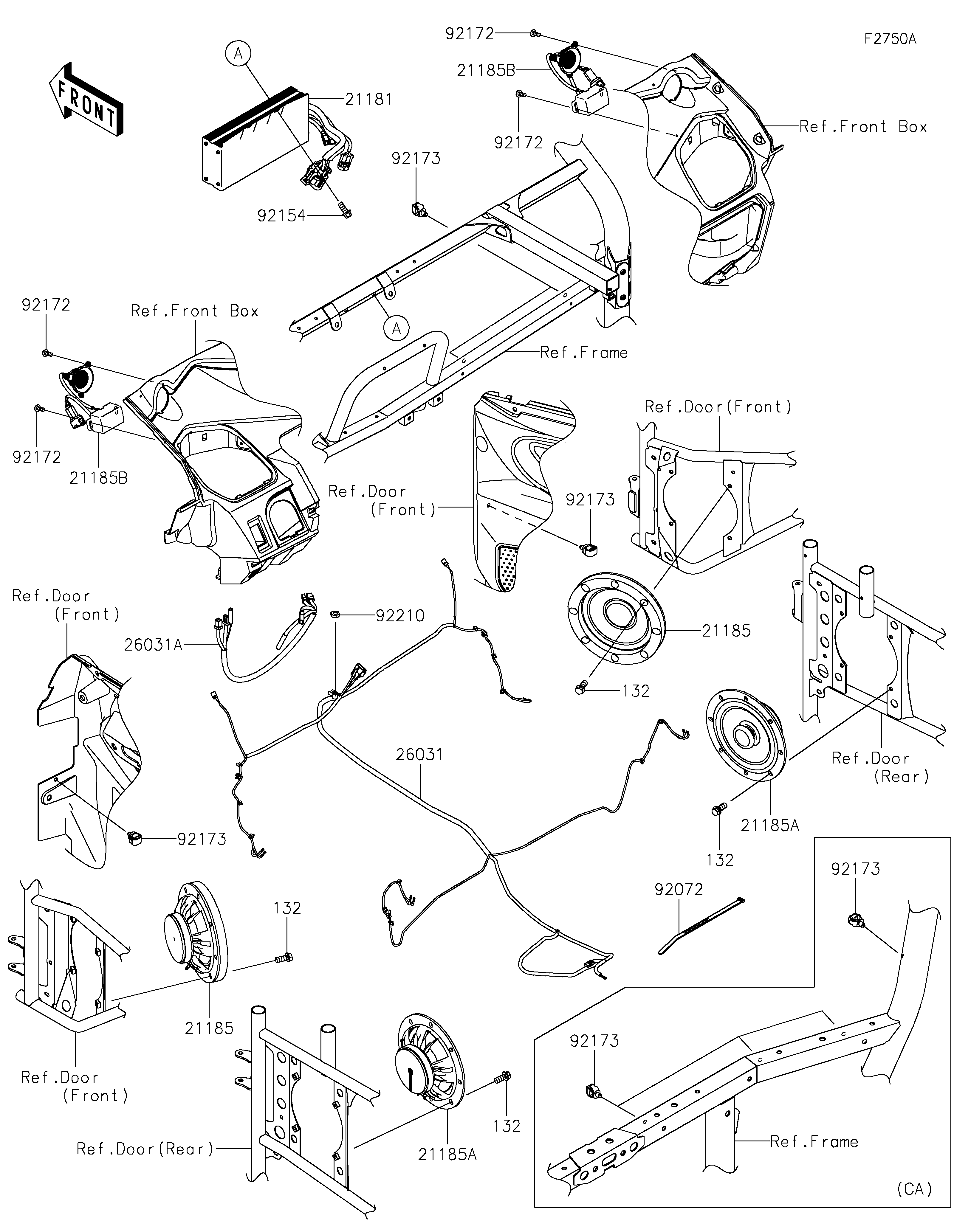

2026 TERYX®5 H2 DELUXE eS - Other(Audio System)
21181
21185
21185
21185A
21185A
21185B
21185B
26031
26031A
92072
92154
92172
92172
92172
92172
92173
92173
92173
92173
92173
132
132
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AMPLIFIER,AUDIO | 21181 | 21181-0031 | 1 | ||
| SPEAKER,FR DOOR | 21185 | 21185-0029 | 2 | ||
| SPEAKER,RR DOOR | 21185A | 21185-0030 | 2 | ||
| SPEAKER,TWEETER | 21185B | 21185-0033 | 2 | ||
| HARNESS,AUDIO MAIN | 26031 | 26031-4482 | 1 | ||
| HARNESS,AUDIO SUB | 26031A | 26031-4483 | 1 | ||
| BAND,L=188 | 92072 | 92072-1239 | 11 | ||
| BOLT,FLANGED,8X20 | 92154 | 92154-1226 | 2 | ||
| SCREW,CROS,4X10 | 92172 | 92172-1248 | 10 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 8 | CA | |
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 16 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 4 | CN,US |
| AMPLIFIER,AUDIO | |
| REF # | 21181 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPEAKER,FR DOOR | |
| REF # | 21185 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPEAKER,RR DOOR | |
| REF # | 21185A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPEAKER,TWEETER | |
| REF # | 21185B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HARNESS,AUDIO MAIN | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,AUDIO SUB | |
| REF # | 26031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=188 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,CROS,4X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X14 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN,US |
| REMARKS | |
