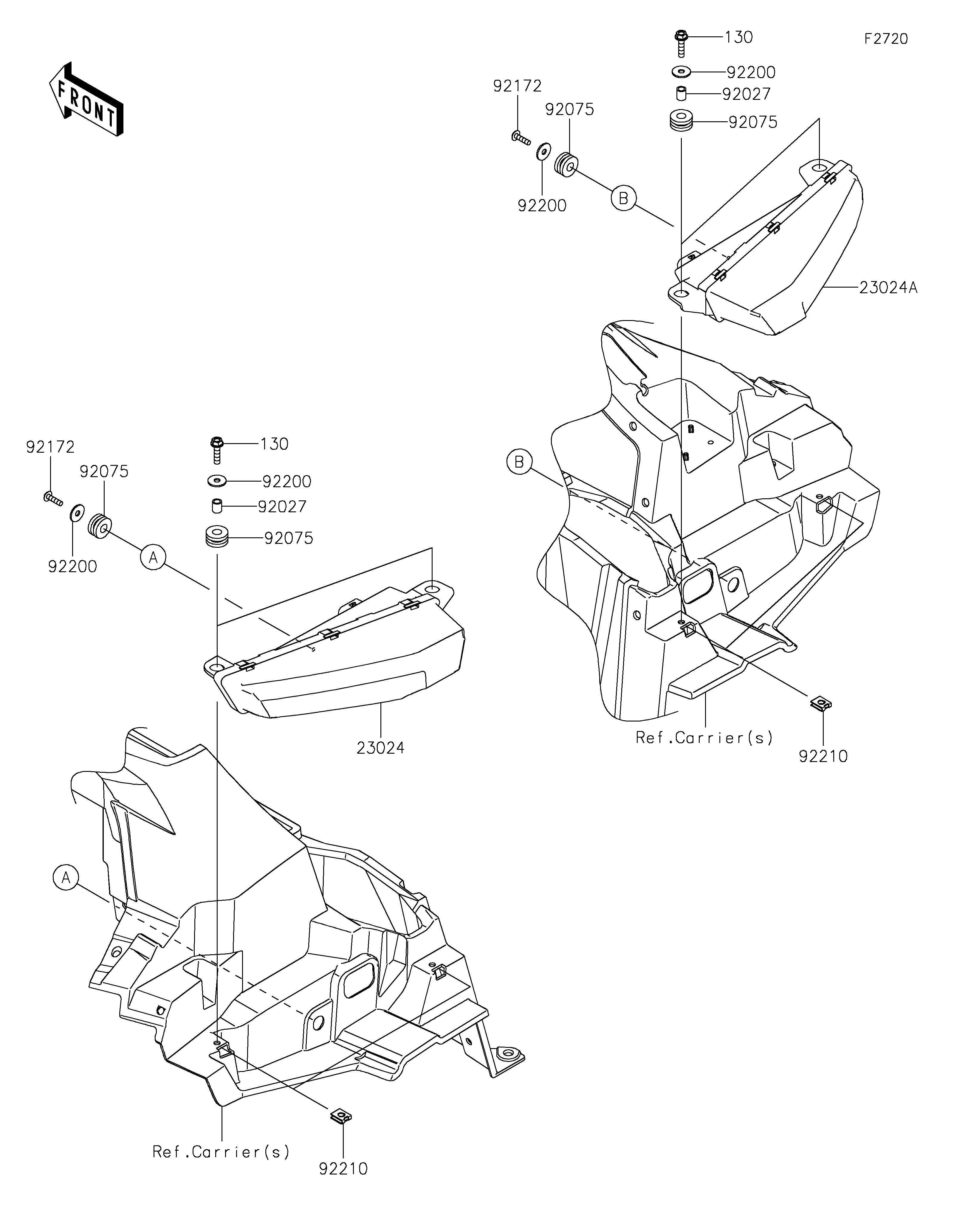

2026 TERYX®5 H2 DELUXE eS - Taillight(s)
23024
23024A
92027
92027
92075
92075
92075
92075
92172
92172
92200
92200
92200
92200
92210
92210
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP-ASSY-TAIL,LED,LH | 23024 | 23024-0012 | 1 | ||
| LAMP-ASSY-TAIL,LED,RH | 23024A | 23024-0013 | 1 | ||
| COLLAR,6.8X10X12 | 92027 | 92027-162 | 4 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 6 | ||
| SCREW | 92172 | 92172-1072 | 2 | ||
| WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 6 | ||
| NUT | 92210 | 92210-1125 | 4 | ||
| BOLT-FLANGED,6X25 | 130 | 130BA0625 | 4 |
| LAMP-ASSY-TAIL,LED,LH | |
| REF # | 23024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-TAIL,LED,RH | |
| REF # | 23024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X12 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X24X12 | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
