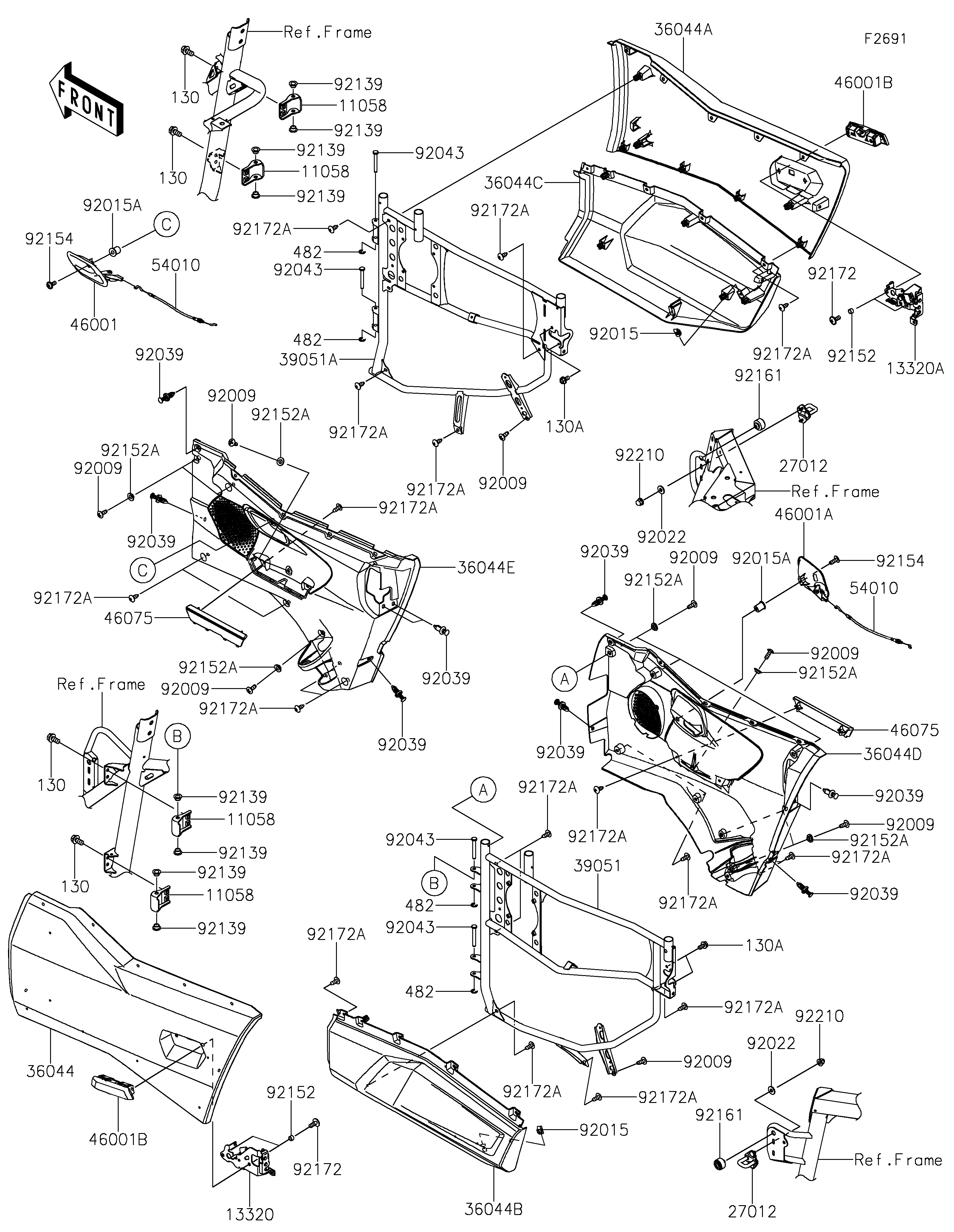

2026 TERYX®5 H2 DELUXE eS - Door(Rear)
11058
11058
11058
11058
13320
13320A
27012
27012
36044
36044A
36044B
36044C
36044D
36044E
39051
39051A
46001
46001A
46001B
46001B
46075
46075
54010
54010
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015A
92015A
92022
92022
92039
92039
92039
92039
92039
92039
92039
92039
92043
92043
92043
92043
92139
92139
92139
92139
92139
92139
92139
92139
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92154
92154
92161
92161
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92210
92210
130
130
130
130
130A
130A
482
482
482
482
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HINGE,RR | 11058 | 11058-4191 | 4 | ||
| LEVER-ASSY,DOOR,RR,LH | 13320 | 13320-0591 | 1 | ||
| LEVER-ASSY,DOOR,RR,RH | 13320A | 13320-0592 | 1 | ||
| HOOK,DOOR | 27012 | 27012-0934 | 2 | ||
| PANEL-DOOR,RR,LH,UPP,L.GREEN | 36044 | 36044-0007-777 | 1 | ||
| PANEL-DOOR,RR,RH,UPP,L.GREEN | 36044A | 36044-0008-777 | 1 | ||
| PANEL-DOOR,RR,LH,LWR | 36044B | 36044-0009 | 1 | ||
| PANEL-DOOR,RR,RH,LWR | 36044C | 36044-0010 | 1 | ||
| PANEL-DOOR,RR,LH,INNER,L.GRAY | 36044D | 36044-0011-72H | 1 | ||
| PANEL-DOOR,RR,RH,INNER,L.GRAY | 36044E | 36044-0012-72H | 1 | ||
| FRAME-COMP-SIDE,DOOR,RR,LH | 39051 | 39051-0033 | 1 | ||
| FRAME-COMP-SIDE,DOOR,RR,RH | 39051A | 39051-0034 | 1 | ||
| HANDLE-ASSY,DOOR,RH,INNER | 46001 | 46001-0015 | 1 | ||
| HANDLE-ASSY,DOOR,LH,INNER | 46001A | 46001-0016 | 1 | ||
| HANDLE-ASSY,DOOR,OUTER | 46001B | 46001-0017 | 2 | ||
| GRIP,DOOR,INNER | 46075 | 46075-0693 | 2 | ||
| CABLE | 54010 | 54010-0666 | 2 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 14 | ||
| NUT,6MM | 92015 | 92015-1602 | 2 | ||
| NUT | 92015A | 92015-1700 | 2 | ||
| WASHER | 92022 | 92022-2247 | 4 | ||
| RIVET | 92039 | 92039-0865 | 18 | ||
| PIN,DOOR | 92043 | 92043-1815 | 4 | ||
| BUSHING,DOOR | 92139 | 92139-1281 | 8 | ||
| COLLAR,6.5X8.5X5.5 | 92152 | 92152-0612 | 4 | ||
| COLLAR,6.3X9.5X4.1 | 92152A | 92152-1571 | 12 | ||
| BOLT,SOCKET,6X16 | 92154 | 92154-4068 | 2 | ||
| DAMPER | 92161 | 92161-2590 | 2 | ||
| SCREW,6X16 | 92172 | 92172-0236 | 4 | ||
| SCREW,6X16 | 92172A | 92172-0284 | 30 | ||
| NUT,CAP,6MM | 92210 | 92210-0003 | 4 | ||
| BOLT-FLANGED,8X16 | 130 | 130BA0816 | 8 | ||
| BOLT-FLANGED,6X12 | 130A | 130CA0612 | 4 | ||
| CIRCLIP-TYPE-E,6MM | 482 | 482J6000 | 4 |
