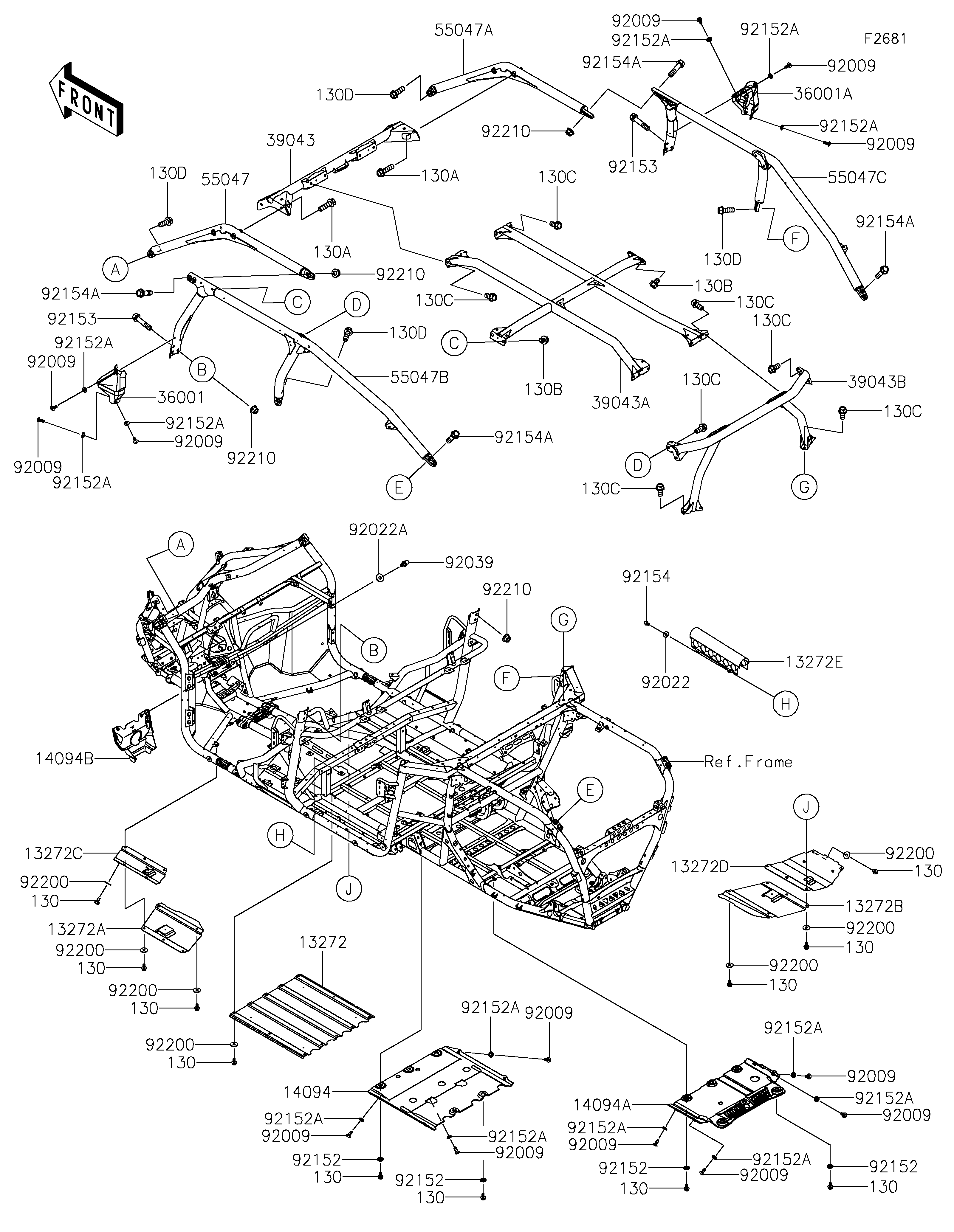

2026 TERYX®5 H2 DELUXE eS - Guards/Cab Frame
13272
13272A
13272B
13272C
13272D
13272E
14094
14094A
14094B
36001
36001A
39043
39043A
39043B
55047
55047A
55047B
55047C
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92022
92022A
92039
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92153
92153
92154
92154A
92154A
92154A
92154A
92200
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
130
130
130
130
130
130
130
130
130
130
130
130A
130A
130B
130B
130C
130C
130C
130C
130C
130C
130C
130D
130D
130D
130D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,SKID,CNT | 13272 | 13272-3963 | 1 | ||
| PLATE,SKID,FR,CNT,LH | 13272A | 13272-4328 | 1 | ||
| PLATE,SKID,FR,CNT,RH | 13272B | 13272-4329 | 1 | ||
| PLATE,SKID,FR,LH | 13272C | 13272-4330 | 1 | ||
| PLATE,SKID,FR,RH | 13272D | 13272-4331 | 1 | ||
| PLATE,DRIVE SHAFT | 13272E | 13272-7108 | 1 | ||
| COVER,SKID,CNT | 14094 | 14094-0040 | 1 | ||
| COVER,SKID,RR | 14094A | 14094-0178 | 1 | ||
| COVER,TUNNEL | 14094B | 14094-0179 | 1 | ||
| COVER-SIDE,B-PILLAR,LH | 36001 | 36001-0782 | 1 | ||
| COVER-SIDE,B-PILLAR,RH | 36001A | 36001-0783 | 1 | ||
| CROSSMEMBER-COMP,FR,T.BLACK | 39043 | 39043-0047-388 | 1 | ||
| CROSSMEMBER-COMP,CNT,T.BLACK | 39043A | 39043-0048-388 | 1 | ||
| CROSSMEMBER-COMP,RR,T.BLACK | 39043B | 39043-0049-388 | 1 | ||
| BAR-COMP,A-PILLAR,LH,T.BLACK | 55047 | 55047-0427-388 | 1 | ||
| BAR-COMP,A-PILLAR,RH,T.BLACK | 55047A | 55047-0428-388 | 1 | ||
| BAR-COMP,LH,T.BLACK | 55047B | 55047-0429-388 | 1 | ||
| BAR-COMP,RH,T.BLACK | 55047C | 55047-0430-388 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 16 | ||
| WASHER | 92022 | 92022-2247 | 4 | ||
| WASHER,8.4X23X2.5 | 92022A | 92022-3744 | 2 | ||
| RIVET | 92039 | 92039-0865 | 2 | ||
| COLLAR | 92152 | 92152-0784 | 11 | ||
| COLLAR,6.3X9.5X4.1 | 92152A | 92152-1571 | 16 | ||
| BOLT,FLANGED,12X55 | 92153 | 92153-1766 | 4 | ||
| BOLT,FLANGED,6X12 | 92154 | 92154-2922 | 4 | ||
| BOLT,FLANGED,12X45 | 92154A | 92154-7078 | 8 | ||
| WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 26 | ||
| NUT,LOCK,FLANGED,12MM | 92210 | 92210-0110 | 8 | ||
| BOLT-FLANGED,6X12 | 130 | 130CA0612 | 37 | ||
| BOLT-FLANGED,12X45 | 130A | 130CA1245 | 4 | ||
| BOLT-FLANGED,12X16 | 130B | 130CB1216 | 4 | ||
| BOLT-FLANGED,12X25 | 130C | 130CB1225 | 16 | ||
| BOLT-FLANGED,12X35 | 130D | 130CB1235 | 8 |
