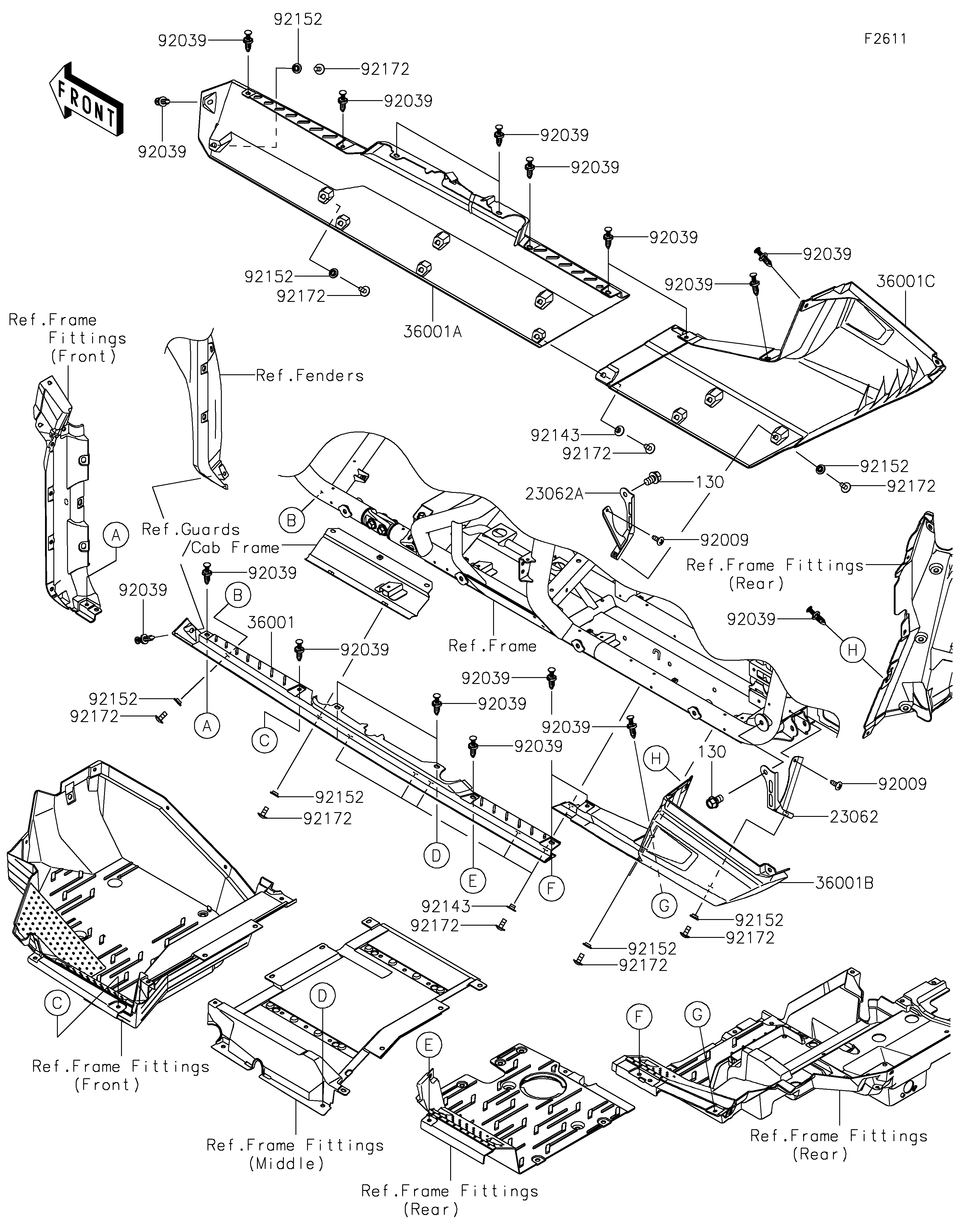

2026 TERYX®5 H2 DELUXE eS - Side Covers
23062
23062A
36001
36001A
36001B
36001C
92009
92009
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92143
92143
92152
92152
92152
92152
92152
92152
92152
92172
92172
92172
92172
92172
92172
92172
92172
92172
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-COMP,LWR COVER,LH | 23062 | 23062-1622 | 1 | ||
| BRACKET-COMP,LWR COVER,RH | 23062A | 23062-1623 | 1 | ||
| COVER-SIDE,LWR,FR,LH | 36001 | 36001-0786 | 1 | ||
| COVER-SIDE,LWR,FR,RH | 36001A | 36001-0787 | 1 | ||
| COVER-SIDE,LWR,RR,LH | 36001B | 36001-0788 | 1 | ||
| COVER-SIDE,LWR,RR,RH | 36001C | 36001-0789 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 2 | ||
| RIVET | 92039 | 92039-0865 | 20 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 18 | ||
| SCREW,6X14 | 92172 | 92172-0004 | 20 | ||
| BOLT-FLANGED,10X16 | 130 | 130BA1016 | 2 |
