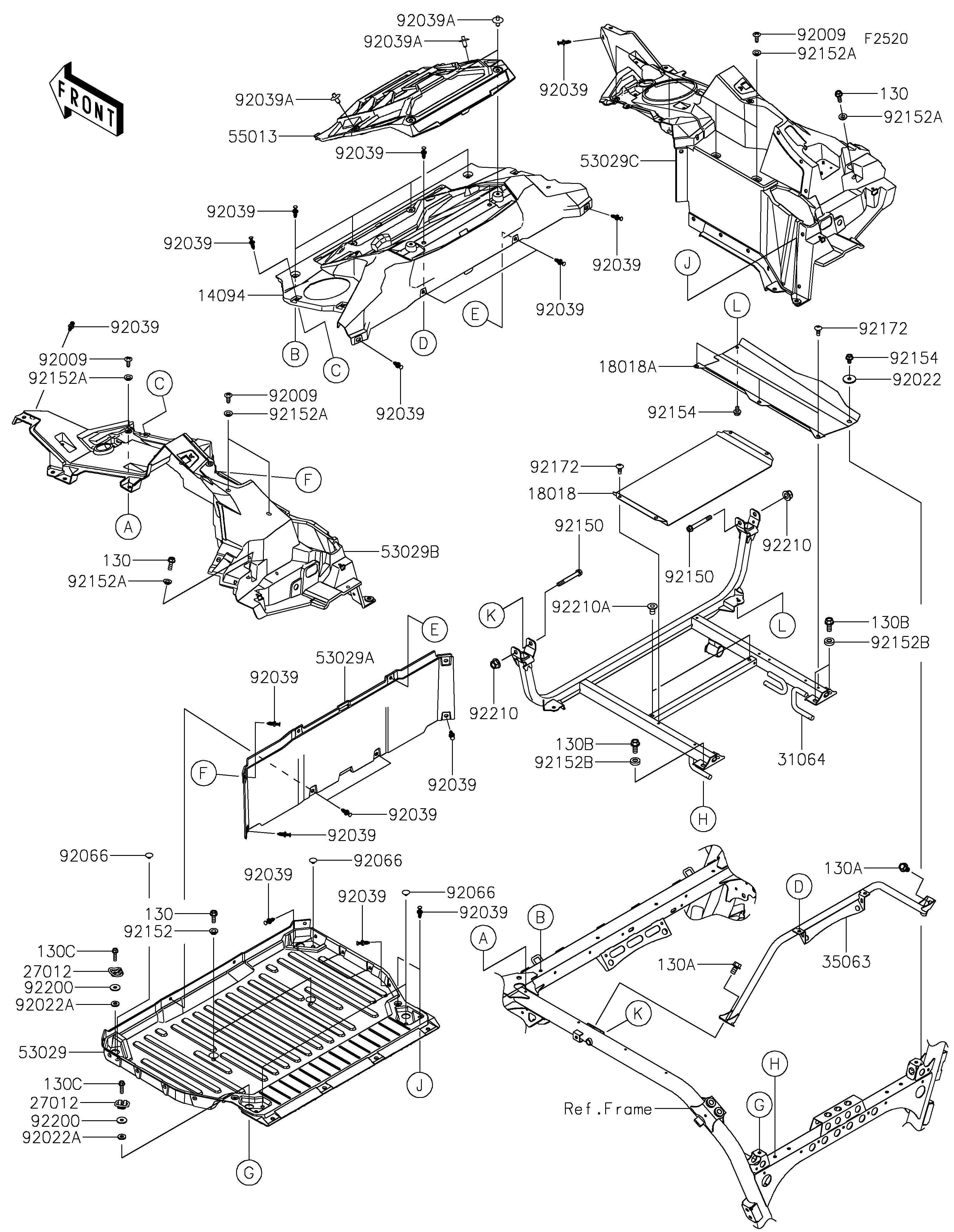

2026 TERYX®5 H2 DELUXE eS - Carrier(s)
14094
18018
18018A
27012
27012
31064
35063
53029
53029A
53029B
53029C
55013
92009
92009
92009
92022
92022A
92022A
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92039A
92066
92066
92066
92150
92150
92152
92152A
92152A
92152A
92152A
92152A
92152B
92152B
92154
92154
92172
92172
92200
92200
92210
92210
92210A
130
130
130
130A
130A
130B
130B
130C
130C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,INTERCOOLER | 14094 | 14094-0196 | 1 | ||
| PLATE-HEAT GUARD,CNT | 18018 | 18018-0651 | 1 | ||
| PLATE-HEAT GUARD,RH | 18018A | 18018-0655 | 1 | ||
| HOOK | 27012 | 27012-0863 | 4 | ||
| PIPE-COMP,CARRIER | 31064 | 31064-0819 | 1 | ||
| STAY,INTERCOOLER | 35063 | 35063-1617 | 1 | ||
| CARRIER,BOTTOM | 53029 | 53029-0396 | 1 | ||
| CARRIER,FR | 53029A | 53029-0397 | 1 | ||
| CARRIER,SIDE,LH | 53029B | 53029-0398 | 1 | ||
| CARRIER,SIDE,RH | 53029C | 53029-0399 | 1 | ||
| GRILLE,INTERCOOLER,F.RED | 55013 | 55013-0001-6L | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 8 | ||
| WASHER,6.5X24X2 | 92022 | 92022-1690 | 1 | ||
| WASHER,10X22X3.2 | 92022A | 92022-1944 | 4 | ||
| RIVET | 92039 | 92039-0865 | 34 | ||
| RIVET | 92039A | 92039-3785 | 4 | ||
| PLUG | 92066 | 92066-1485 | 4 | ||
| BOLT,10X80 | 92150 | 92150-1893 | 2 | ||
| COLLAR | 92152 | 92152-0224 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152A | 92152-1571 | 10 | ||
| COLLAR,8.2X18X5 | 92152B | 92152-1848 | 4 | ||
| BOLT,FLANGED,6X10 | 92154 | 92154-4159 | 2 | ||
| SCREW,TAPPING,6X16 | 92172 | 92172-0739 | 7 | ||
| WASHER,9X28X2.3 | 92200 | 92200-1951 | 4 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 2 | ||
| NUT,LARGE FLANGE,6MM,L=16.5 | 92210A | 92210-1623 | 2 | ||
| BOLT-FLANGED,6X18 | 130 | 130CA0618 | 4 | ||
| BOLT-FLANGED,8X14 | 130A | 130CA0814 | 2 | ||
| BOLT-FLANGED,8X18 | 130B | 130CA0818 | 4 | ||
| BOLT-FLANGED,8X30 | 130C | 130CA0830 | 4 |
