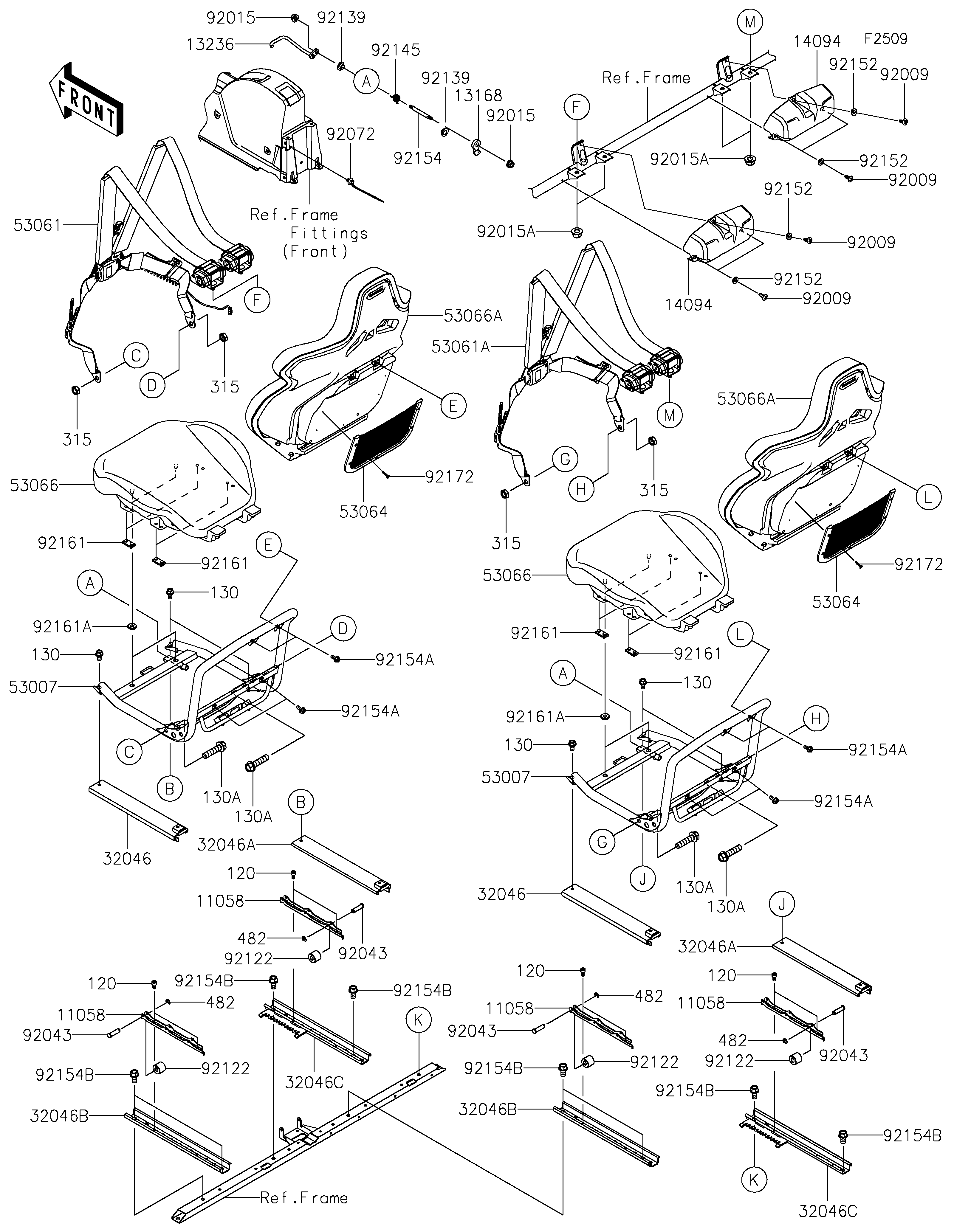

2026 TERYX®5 H2 DELUXE eS - Seat(Front)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
11058
11058
13168
13236
14094
14094
32046
32046
32046A
32046A
32046B
32046B
32046C
32046C
53007
53007
53061
53061A
53064
53064
53066
53066
53066A
53066A
92009
92009
92009
92009
92015
92015
92015A
92015A
92043
92043
92043
92043
92072
92122
92122
92122
92122
92139
92139
92145
92152
92152
92152
92152
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92161A
92161A
92172
92172
120
120
120
120
130
130
130
130
130A
130A
130A
130A
315
315
315
315
482
482
482
482
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FR SEAT SLIDE 11058 11058-3995 4
LEVER,FR SEAT SLIDE 13168 13168-0971 2
LEVER-COMP,FR SEAT SLIDE 13236 13236-0875 2
COVER,RETRACTOR 14094 14094-0176 2
BRACKET-SEAT,SLIDE RAIL,UPP,LH 32046 32046-0539 2
BRACKET-SEAT,SLIDE RAIL,UPP,RH 32046A 32046-0540 2
BRACKET-SEAT,SLIDE RAIL,LWR,LH 32046B 32046-0541 2
BRACKET-SEAT,SLIDE RAIL,LWR,RH 32046C 32046-0542 2
FRAME-SEAT,FR 53007 53007-0522 2
BELT-SEAT,DRIVER 53061 53061-0393 1
BELT-SEAT,PASSENGER 53061A 53061-0394 1
NET-CARGO 53064 53064-0021 2
SEAT-ASSY,BOTTOM,D.GRAY+GRY 53066 53066-0941-77F 2
SEAT-ASSY,FR,BACK,D.GRAY+GRY+G 53066A 53066-1130-77E 2
SCREW,TAPPING,6X16 92009 92009-1166 6
NUT,8MM 92015 92015-1432 4
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 4
PIN 92043 92043-0991 8
BAND,OS170-FT7(BLACK) 92072 92072-1414 1
ROLLER 92122 92122-0572 8
BUSHING 92139 92139-0230 4
SPRING,ADJUST LEVER 92145 92145-1858 2
COLLAR,6.3X9.5X4.1 92152 92152-1571 6
BOLT,ADJUST LEVER 92154 92154-3923 2
BOLT,FLANGED,6X14 92154A 92154-3968 8
BOLT,FLANGED,10X18 92154B 92154-7022 8
DAMPER,SEAT 92161 92161-1489 8
DAMPER,SEAT 92161A 92161-2744 4
SCREW,3X14 92172 92172-1544 10
BOLT-SOCKET,6X12 120 120CA0612 8
BOLT-FLANGED,8X14 130 130BA0814 8
BOLT-FLANGED,12X50 130A 130BA1250 4
NUT-HEX-FINE,12MM 315 315BA1200 4
CIRCLIP-TYPE-E,4MM 482 482J4000 8
